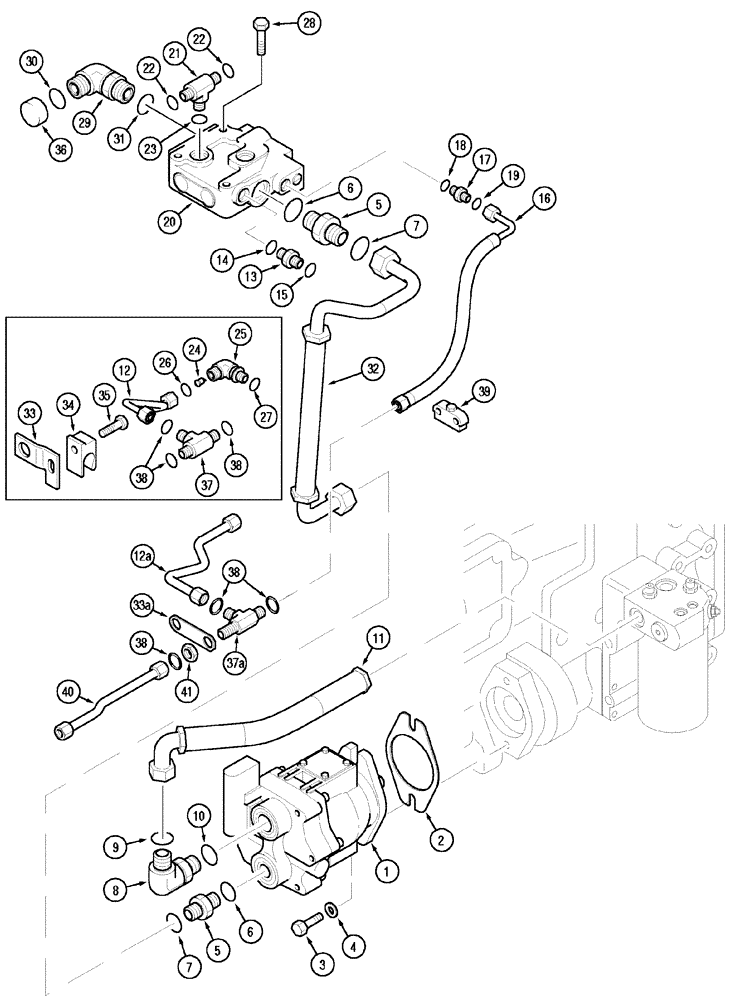

Запчасти Case IH MX170 (08-01) - HYDRAULIC PUMP, OIL LINES AND FILTER (35) - HYDRAULIC SYSTEMS

1

258709A3

PUMP, HYDRAULIC,45 CC

Vickers

1шт.

Prior to Transmission S/N JKA0456058

1шт.

1

258709A3R

REMAN-HYD PUMP

MX150, MX170 - CASE IH MAXXUM DIESEL TRACTOR

1шт.

1

258709A3C

PUMP

Return Part Number

1шт.

1

394269A1

HYDRAULIC PUMP

Rexroth

1шт.

Transmission S/N JKA0456058 and After

1шт.

2

144169C2

GASKET,0.79mm Thk

1шт.

3

615-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

2шт.

4

896-16012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

2шт.

5

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Includes 6,7

2шт.

6

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

7

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

8

700-309

ELBOW,90 Degree Elbow, 1-11/16" - 12 Male ORFS x M42 x 2 Male ORB

Includes 9,10

1шт.

9

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

10

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

11

231762A2

HOSE,31.75mm ID x 475mm L

Inlet

1шт.

Prior to Transmission S/N JKA0456058

1шт.

11

394359A1

HOSE ASSY.

Inlet

1шт.

Transmission S/N JKA0456058 and After

1шт.

12

234838A1

HYD TUBE

1шт.

Prior to Transmission S/N JKA0456058

1шт.

12

432977A1

PIPE

1шт.

Transmission S/N JKA0456058 and After

1шт.

12b

338239A1

HYD TUBE,10 mm OD, 100.5, 168.5 mm Length

1шт.

Prior to Transmission S/N JKA0456058

1шт.

13

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 14,15

1шт.

14

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

15

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

16

304843A2

HOSE,6.35mm ID x 407mm L

Priority Valve

1шт.

17

700-157

HYD CONNECTOR,11/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Incl. 18,19

1шт.

18

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

19

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

20

175642A6

VALVE

See Page(s) 8-29

1шт.

21

700-402

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Includes 22,23

1шт.

21b

336965A1

TEE

With Screen, Includes 21B - 23

1шт.

21c

1980065C3

SCREEN

1шт.

22

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

23

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

175021A1

90 ELBOW

Consists Of 24 - 27

1шт.

24

133519C1

SCREEN

1шт.

25

175224A1

ELBOW

Order 175021A1

1шт.

26

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

27

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

28

828-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

3шт.

29

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 30, 31

1шт.

30

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

31

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

32

246860A1

HOSE,19.05 mm ID x 476.00 mm, SAE 100R9

Supply, Serial Range: -JJE1110343

1шт.

Prior to Transmission S/N JKA0456058

1шт.

32

394360A3

HOSE ASSY.

, Start Serial: JJE1110343

1шт.

Transmission S/N JKA0456058 and After

1шт.

33

257435A2

SUPPORT

1шт.

33b

320213A1

SUPPORT

1шт.

34

T101169

CLAMP

1шт.

35

614-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8, Full Thd

1шт.

36

701-905

CAP,13/16" - 16

1шт.

37

701-408

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS

1шт.

37b

701-449

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS

1шт.

38

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.

39

258153A1

FIXING BRACKET

1шт.

40

303249A1

HYD TUBE,10 mm OD, 304, 93 mm Length

1шт.

40b

320675A1

HYD TUBE,10 mm OD, 282, 105 mm Length

Hitch, Auxiliary

1шт.

41

701-909

NUT,11/16" - 16

1шт.

42

362086A1

KIT

Compensator (Not Shown)

1шт.

Prior to Transmission S/N JKA0456058

1шт.

42

86983917

KIT

Compensator (Not Shown)

1шт.

Transmission S/N JKA0456058 and After

1шт.

43

86983915

SEAL KIT

Compensator (Not Shown)

1шт.

Transmission S/N JKA0456058 and After

1шт.
