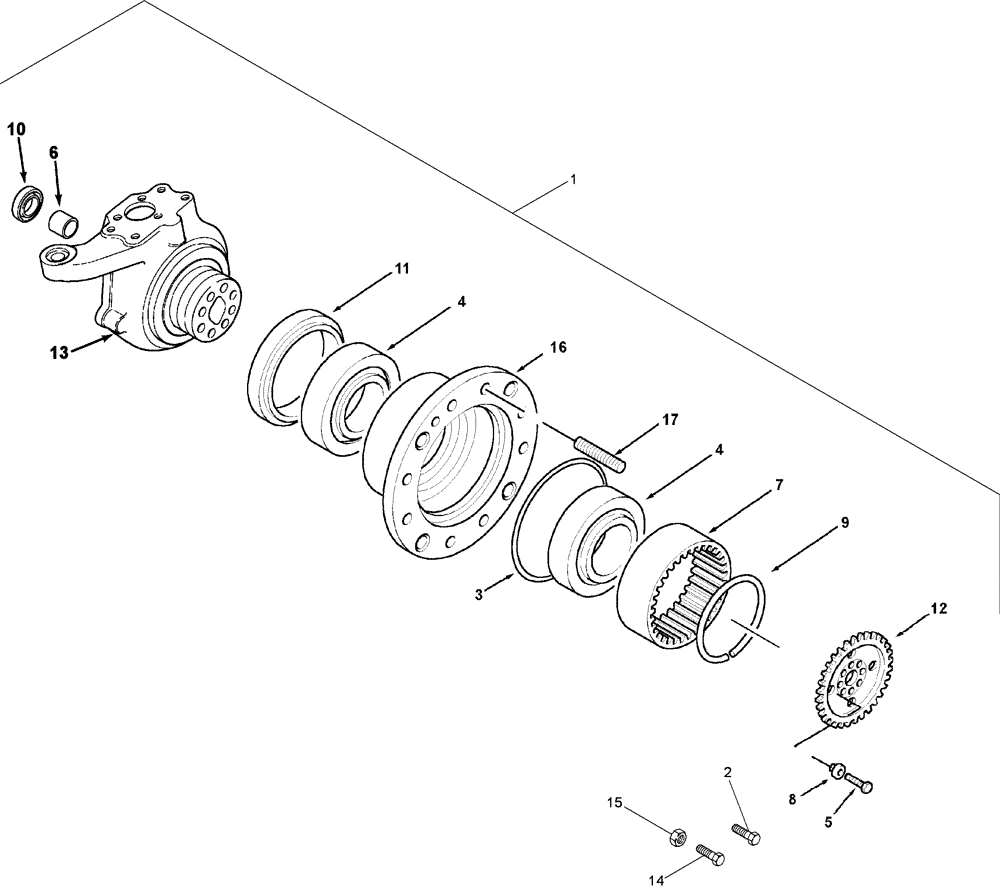

Запчасти Case IH MX170 (05-32) - KIT, SWIVEL HOUSING ASSEMBLY, (25) - FRONT AXLE SYSTEM

1

346975A1

HOUSING ASSY.

KIT, Left Hand Swivel, Inc. 2 -12, 13A - 16

1шт.

1

346976A1

HOUSING ASSY.

KIT, Right hand Swivel Inc. 2 - 16

1шт.

2

K395082

SCREW,M8 x 20mm

2шт.

3

P2930467

SEAL,0.139" Thk x 9.984" ID, -274, Cl 5, 75 Duro

1шт.

4

K395101

TAPERED BEARING,109.5mm ID x 126mm x 21.4mm L

2шт.

5

K395131

BOLT,Hex, M14 x 1.5 x 65mm, Cl 10.9

8шт.

6

300166A1

BUSHING

1шт.

7

175976A1

PINION

Ring

1шт.

8

107071A1

BUSHING

8шт.

9

175984A1

RING, LOCKING

RING, LOCK

1шт.

10

300167A1

OIL SEAL

1шт.

11

247546A1

OIL SEAL,150mm ID x 180mm OD x 14.50mm W

1шт.

12

310492A1

PINION CARRIER

GEAR CARRIER

1шт.

13

366816A1

HOUSING

Right

1шт.

13a

366815A1

HOUSING

Left (Not Shown)

1шт.

14

1537664C1

BOLT,M16 x 100mm

1шт.

15

1537663C1

NUT

1шт.

16

300164A1

HOUSING

Hub Assembly, Wheel

1шт.
