Запчасти Case IH MX170 (05-29) - HUB PLANETARY DRIVE (25) - FRONT AXLE SYSTEM

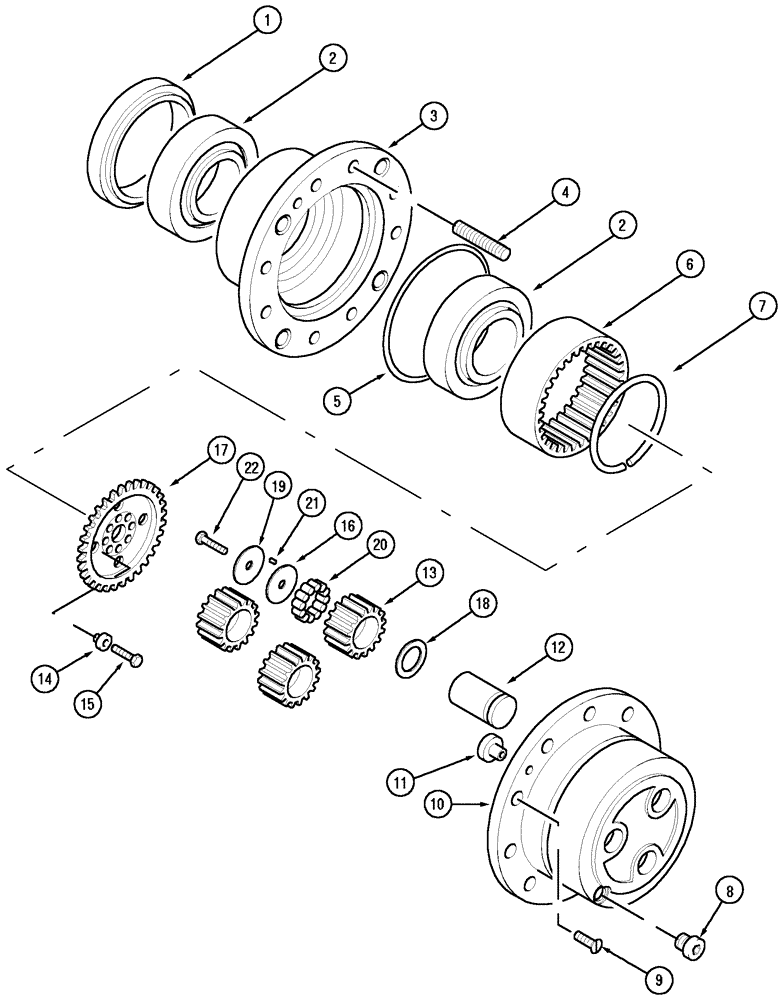

Схема запчастей Case IH MX170 - (05-29) - HUB PLANETARY DRIVE (25) - FRONT AXLE SYSTEM
16
8
15
22
18
17
2
14
19
13
6
7
10
9
12
1
21
4
11
20
2
5
3

Артикул

Название

Примечание

Количество

4WD

1шт.

1

247546A1

OIL SEAL,150mm ID x 180mm OD x 14.50mm W

2шт.

2

81676C1

ROLLER BEARING,109.54mm ID x 158.75mm OD x 23.02mm W

4шт.

3

300164A1

HOUSING

Includes 4, MX150

2шт.

3

406865A1

HUB ASSY.

Includes 4, Axle 20:29S, MX170

2шт.

4

300165A1

STUD

10шт.

5

Q2930467

O-RING,0.139" Thk x 9.984" ID, -274, Cl 5, 75 Duro

2шт.

6

175976A1

PINION

2шт.

7

175984A1

RING, LOCKING

RING, LOCK

2шт.

8

100557A1

PLUG, DRAIN,M30 x 2

2шт.

9

905876R1

HEX SOC SCREW,Flat Hd, CSK, M8 x 20mm, Cl 10.9

4шт.

10

300163A1

HOUSING ASSY.

Includes 11,12

2шт.

11

K395093

HEADED PIN,12mm OD x 15mm L

1шт.

12

NSS

NOT SOLD SEPARAT

Pin

3шт.

13

175979A1

SUN GEAR

6шт.

14

107071A1

BUSHING

20 mm OD

16шт.

15

K395131

BOLT,Hex, M14 x 1.5 x 65mm, Cl 10.9

16шт.

16

175980A1

THRUST WASHER

6шт.

17

295580A1

PINION CARRIER

GEAR CARRIER MX150

2шт.

17

310492A1

PINION CARRIER

GEAR CARRIER , Axle 20:29S, MX170

2шт.

18

175989A1

THRUST WASHER

6шт.

19

175990A1

THRUST WASHER

6шт.

20

175978A1

NEEDLE BEARING

Sets Of 10

34шт.

21

247550A1

NEEDLE BEARING,5 mm OD x 10 mm

6шт.

22

175982A1

LOCK BOLT,Hex, M10 x 1.25 x 50mm, Cl 10.9

M10 x 50

6шт.

Выбрано товаров: 25
