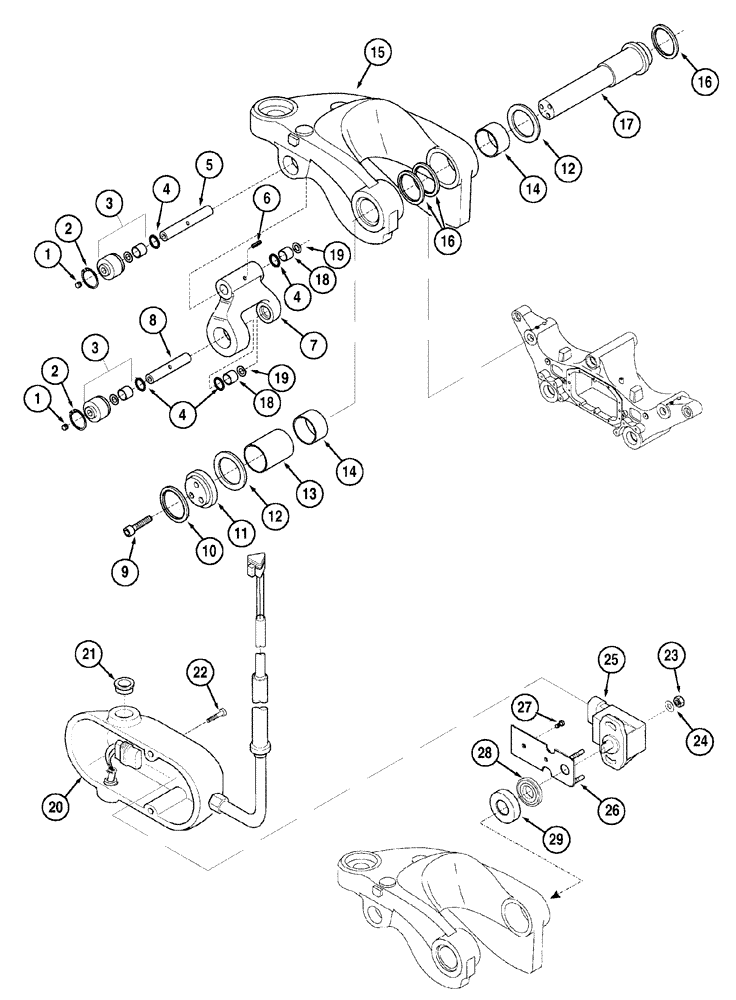

Запчасти Case IH MX170 (05-21) - FRONT AXLE SUSPENSION (25) - FRONT AXLE SYSTEM

Upper Arm

1шт.

Axle 20:29S

1шт.

Europe Only

1шт.

MX170

1шт.

1

Screw

6шт.

2

406767A1

RING, SNAP

RING SNAP

4шт.

3

406768A1

PACKAGE, BUSHES

4шт.

4

406834A1

SEAL

8шт.

5

406835A1

PIN

2шт.

6

905794R1

PIN,M6 x 30, Coiled

2шт.

7

406836A1

SUPPORT ASSY.

Includes 18,19

2шт.

8

406837A1

LARGE PIN

PIN, LARGE

2шт.

9

864-10030

HEX SOC SCREW,M10 x 30mm, Cl 8.8

6шт.

10

406868A1

SEALING RING

2шт.

11

406869A1

COVER

2шт.

12

406870A1

THRUST WASHER

4шт.

13

406871A1

RING

2шт.

14

406872A1

RING

4шт.

15

406873A1

ARM ASSY.

Left, Includes 18,19

1шт.

15

406874A1

ARM ASSY.

Right, Includes 18,19

1шт.

16

406875A1

SEALING RING

6шт.

17

406876A1

LARGE PIN

PIN, LARGE

2шт.

18

NSS

NOT SOLD SEPARAT

Plug

1шт.

19

NSS

NOT SOLD SEPARAT

Washer

1шт.

20

406922A1

SENSOR

Left, Includes 21

1шт.

20

406923A1

SENSOR

Right, Includes 21

1шт.

21

NSS

NOT SOLD SEPARAT

Grommet

1шт.

22

324632A1

BOLT

M6 x 30

4шт.

23

402052A1

NUT

4шт.

24

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

25

340407A1

SENSOR

2шт.

26

406924A1

SUPPORT

2шт.

27

112486A1

BOLT,Hex, M6 x 12

M6 x 10

4шт.

28

340474A1

SEAL

1шт.

29

406925A1

RING

2шт.
