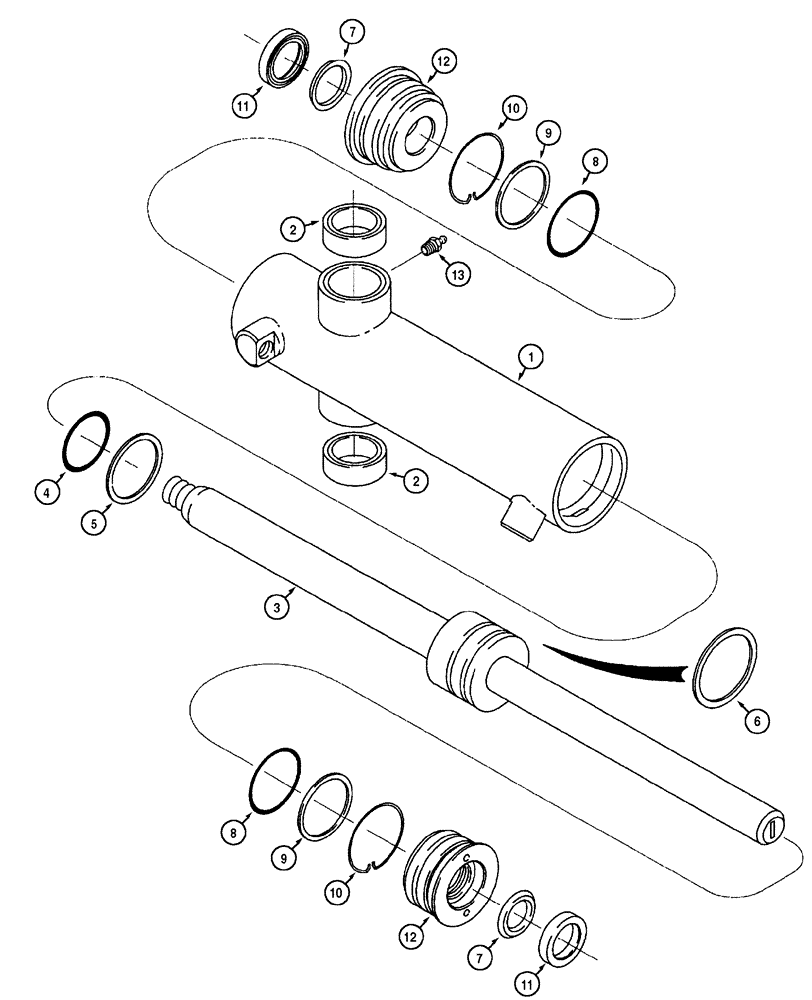

Запчасти Case IH MX150 (05-07) - STEERING CYLINDER (25) - FRONT AXLE SYSTEM

93194C9

STEERING CYLINDER,Double Acting, 31.75mm Rod, 246.38mm Stroke

67 ID x 246 mm strk, Consists Of 1 - 12

1шт.

93194C9R

REMAN-HYD CYLINDER

MX150, MX170, Both CASE IH MAXXUM DIESEL TRACTOR, 67 ID x 246 mm strk (1/98-)

1шт.

93194C9C

CORE-HYD CYLINDER

Return Number

1шт.

1

1954124C5

HYD CYL SLEEVE

Includes 2

1шт.

2

1255304C2

BUSHING,38.2mm ID x 47.69mm OD x 19mm L

2шт.

3

1255306C5

PISTON ROD

1шт.

80448C3

SEAL KIT

1шт.

4

238-5139

O-RING,0.103" Thk x 2.175" ID, -139, Cl 5, 75 Duro

1шт.

5

1255309C1

SEAL,61.19mm ID x 67.28mm OD x 2.92mm Thk

1шт.

6

NSS

NOT SOLD SEPARAT

Ring

1шт.

7

1976944C1

SEAL

Order 80448C3

2шт.

8

238-5143

O-RING,0.103" Thk x 2.425" ID, -143, Cl 5, 75 Duro

2шт.

9

1255311C1

WASHER

2шт.

10

1255312C1

RETAINING WIRE

205 mm (8-1/16 in), Cut From 140600C1

2шт.

11

D95141

WIPER SEAL

2шт.

12

1255310C1

HEAD (CYLINDER)

2шт.

13

219-17

LUBE NIPPLE,3/16" NPTF

2шт.

140600C1

RETAINING WIRE

12-1/2 inch (319 mm) long

1шт.
