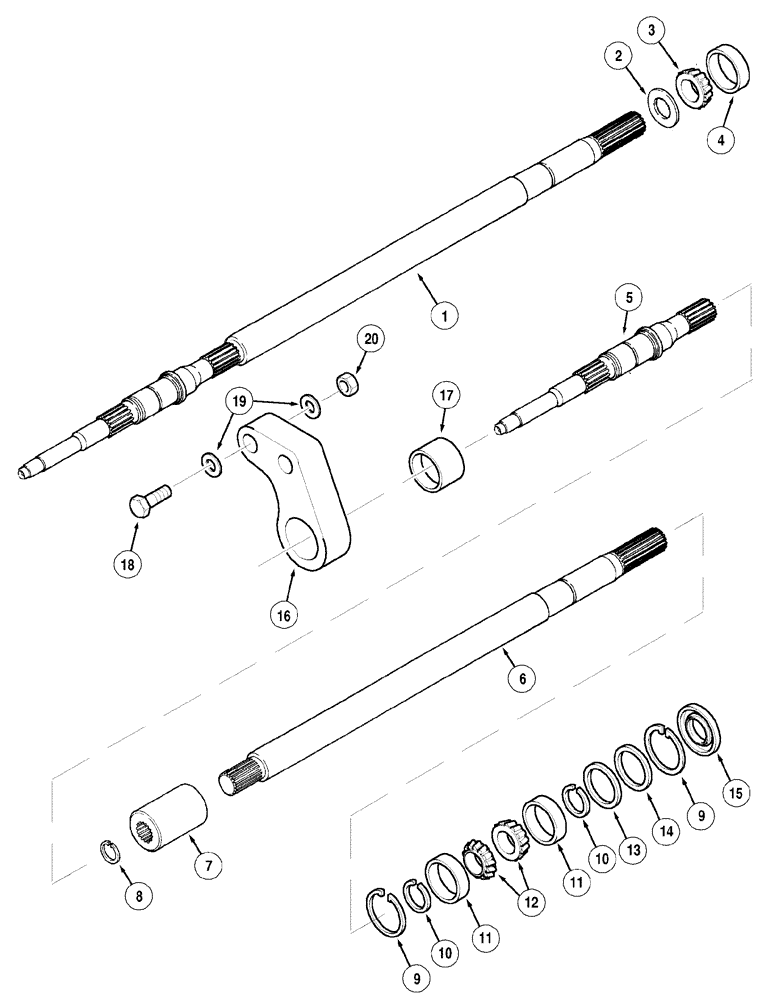

Запчасти Case IH MX150 (06-37) - CLUTCH SHAFT (21) - TRANSMISSION

If So Equipped

1шт.

1

372224A1

SHAFT

Drive, Must Order Ref 5 - 8

1шт.

2

375850A1

WASHER

1шт.

3

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

1-3/8 ID

1шт.

4

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

2-1/2 OD

1шт.

Standard

1шт.

5

228599A4

SHAFT

Drive, Rear

1шт.

6

388669A1

SHAFT

Drive, Front

1шт.

6

389804A1

SHAFT ASSY.

Drive, Front, Use With 370196A1

1шт.

7

A186409

SPLINED COUPLING

1шт.

8

100-21112

SNAP RING,1.125", Int, #112

1шт.

9

800-2165

SNAP RING,M65, Int

2шт.

10

A21619

CIRCLIP

2шт.

11

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

2-1/2 OD

2шт.

12

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

1-3/8 ID

2шт.

13

1341124C1

SPACER

35 mm

1шт.

14

K915557

SHIM,53.98mm ID x 64.29mm OD x 0.05mm Thk

1шт.

14

K915559

SHIM,53.98mm ID x 64.29mm OD x 0.13mm Thk

1шт.

14

A175454

SHIM,54mm ID x 64.67mm OD x 0.5mm Thk

1шт.

15

A190135

SEAL

Front

1шт.

16

370196A1

PLATE

Support

1шт.

17

56095R91

NEEDLE BEARING,Needle, 38.07mm ID x 47.64mm OD x 31.75mm W

1шт.

18

828-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

2шт.

19

896-16012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

4шт.

20

832-10412

NUT,M12 x 1.75, Cl 8

1шт.
