Запчасти Case IH MX150 (06-27) - P.T.O. CLUTCH AND DRIVE (21) - TRANSMISSION

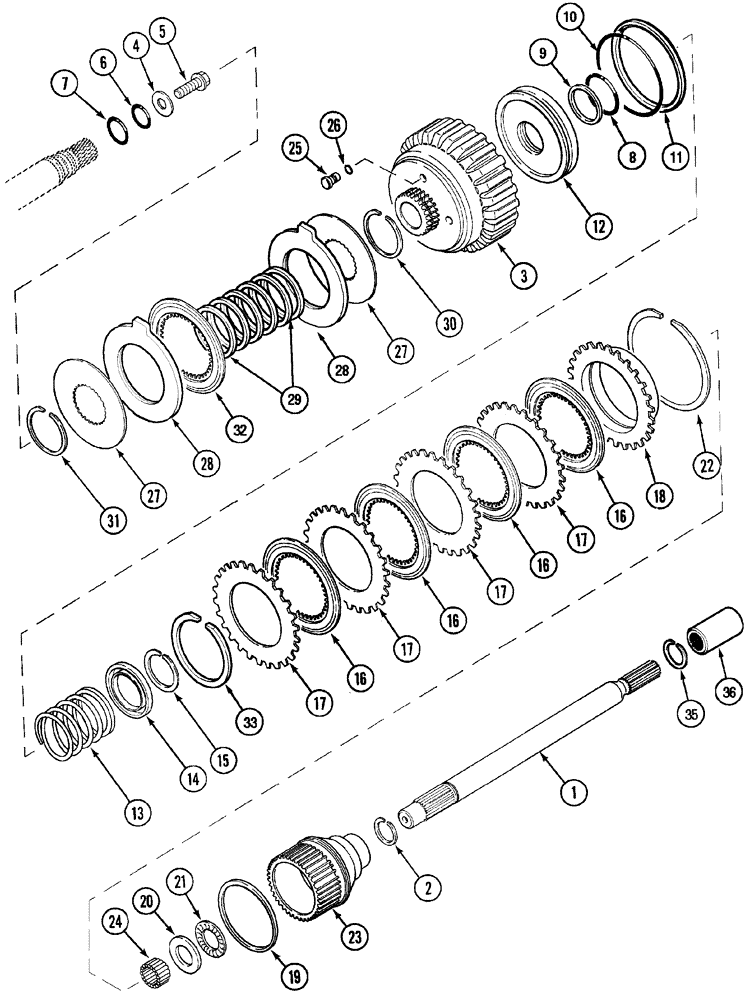

Схема запчастей Case IH MX150 - (06-27) - P.T.O. CLUTCH AND DRIVE (21) - TRANSMISSION
33
17
17
29
20
23
15
18
16
4
17
35
16
12
28
13
30
16
16
1
7
27
6
28
27
26
3
10
14
21
24
36
19
32
17
11
31
25
9
8
2
22
5

Артикул

Название

Примечание

Количество

1

233068A1

SHAFT

Europe Only, L=695mm

1шт.

1

235041A1

SHAFT

N.A. Only, L=750mm

1шт.

2

103-11112

SNAP RING,#112, Ext

1шт.

3

235027A1

HOUSING

1шт.

4

A175129

WASHER, THRUST

1шт.

5

853-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

M12 x 25; 10,9

1шт.

6

238-5215

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

1шт.

7

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

1шт.

8

238-7137

O-RING,0.103" Thk x 2.05" ID, -137, Cl 7, 75 Duro

1шт.

9

A159297

SEAL,47.2mm ID x 54.1mm OD x 3.1mm Thk

SEALRING

1шт.

10

238-7156

O-RING,0.103" Thk x 4.237" ID, -156, Cl 7, 75 Duro

1шт.

11

A158051

SEAL,116.49mm ID x 123.91mm OD x 3.07mm Thk

1шт.

12

253492A1

PISTON

121.8 x 19.65 mm

1шт.

13

A183508

SPRING

1шт.

14

A183436

RETAINER,45.25mm ID x 65.45mm OD x 5mm Thk

1шт.

15

100-16175

SNAP RING,#175, Ext

1шт.

16

247090A1

NOTCHED DISK

6шт.

17

A175806

PLATE

6шт.

18

A188599

PLATE

1шт.

19

1995174C1

SEALING RING

SEALRING

1шт.

20

A146625

WASHER, THRUST,28.63mm ID x 43.95mm OD x 3.2mm Thk

1шт.

21

T36441

THRUST BEARING,1.127" ID x 1.74" OD x 0.0781"

1шт.

22

139987A1

SNAP RING,126.34mm ID x 142.4mm OD x 2.82mm Thk

1шт.

23

235028A2

HUB

1шт.

24

A175839

NEEDLE BEARING,Needle, 25mm ID x 32mm OD x 16mm W

1шт.

25

235029A1

PIN,7.26mm OD x 15.35mm L

3шт.

26

238-5008

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

3шт.

27

1995264C2

BRAKE DISC

DISC, BRAKE

2шт.

28

379740A1

DISC

1шт.

29

1345690C1

SPRING

6шт.

30

100-17200

SNAP RING,#200, Ext

2шт.

31

800-1155

RETAINER,55mm ID

1шт.

32

235031A2

BRAKE DISC

DISC, BRAKE

1шт.

33

295317A1

CIRCLIP,1.8mm Thk, Ext

1шт.

35

100-21106

SNAP RING,1.06", Int, #106

1шт.

36

1341089C1

SPLINED COUPLING

1шт.

Выбрано товаров: 36
