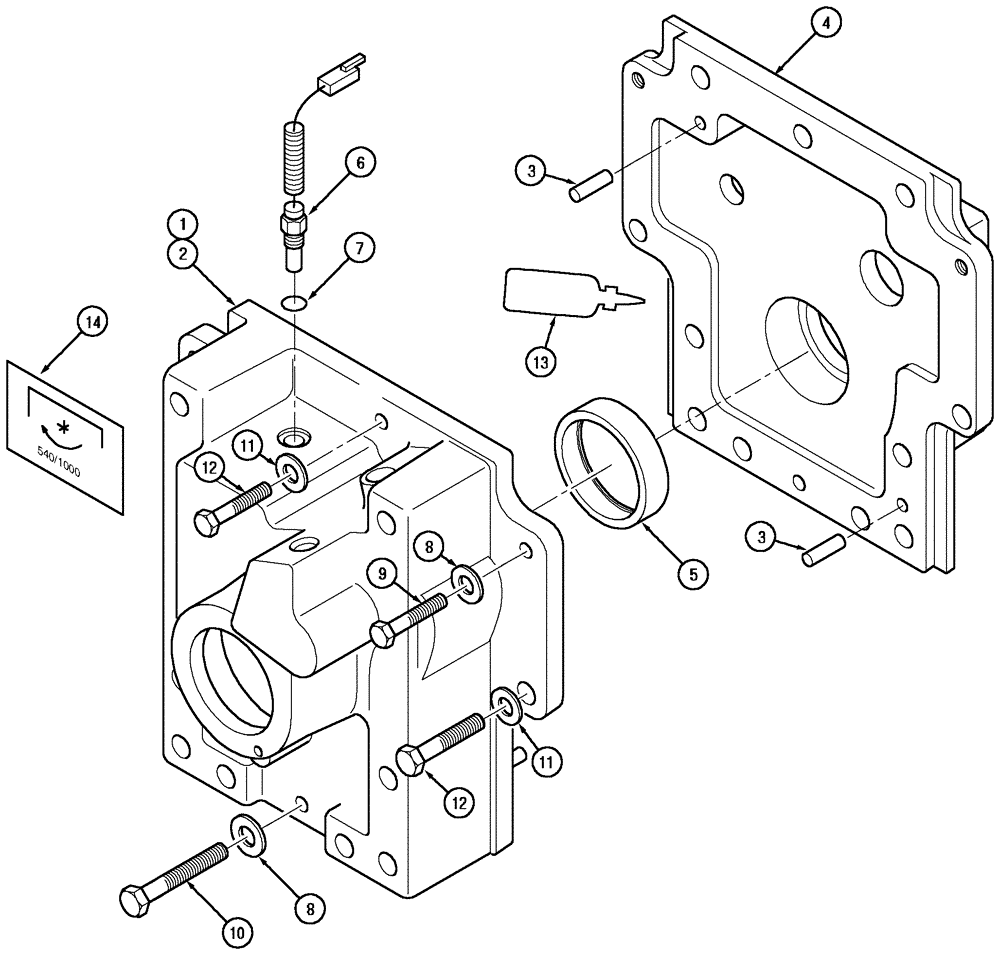

Запчасти Case IH MX150 (06-26) - P.T.O. HOUSING AND OIL BAFFLE (21) - TRANSMISSION

Housing

1шт.

N.A. Only

1шт.

1

230896A2

HOUSING ASSY.

Includes 2,3

1шт.

2

NSS

NOT SOLD SEPARAT

Housing

1шт.

3

837-10050

DOWEL,M10 x 50

10 x 50 mm

2шт.

4

230883A2

COVER

1шт.

5

ST856

CUP

1шт.

6

238077A1

SENSOR

P.T.O. Speed Indicator

1шт.

7

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

8

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

3шт.

9

828-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

2шт.

10

828-12160

BOLT,Hex, M12 x 1.75 x 160mm, Cl 10.9

1шт.

11

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

3шт.

12

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

3шт.

13

B17501

LOCTITE

6 ml

1шт.

14

1092074R2

DECAL

540/1000

1шт.

15

252677A1

SWITCH

Plunger, Not Illustrated, See Page(s) 6-75

1шт.
