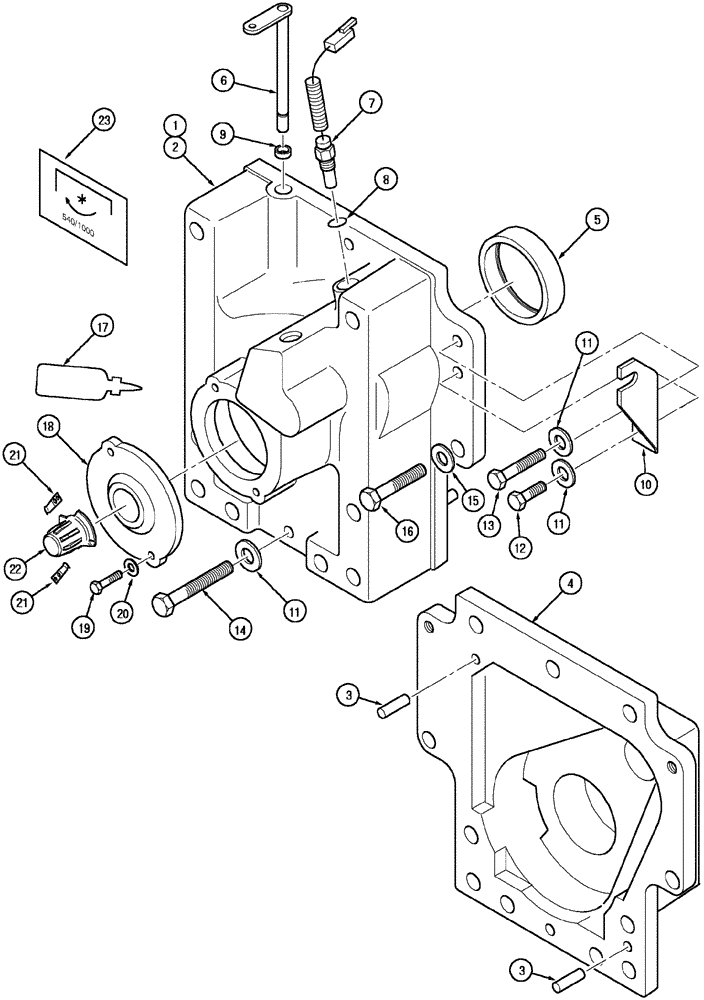

Запчасти Case IH MX150 (06-25) - SHIFTABLE P.T.O. (21) - TRANSMISSION

Housing

1шт.

Europe Only

1шт.

1

230899A2

HOUSING ASSY.

Includes 2,3

1шт.

2

NSS

NOT SOLD SEPARAT

Housing

1шт.

3

837-10040

DOWEL,M10 x 40

10 x 40 mm

2шт.

4

230888A2

SUPPORT

1шт.

5

ST856

CUP

1шт.

6

292027A2

LEVER ASSY.

1шт.

7

238077A1

SENSOR

P.T.O. Speed Indicator

1шт.

8

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

9

A178864

OIL SEAL,15.88mm ID x 25.4mm OD x 6.35mm Thk

1шт.

10

293448A2

SUPPORT

Cable

1шт.

11

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

12

628-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

M12 x 25; 10.9

1шт.

13

628-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.

14

828-12120

BOLT,Hex, M12 x 1.75 x 120mm, Cl 10.9

1шт.

15

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

3шт.

16

828-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

3шт.

17

B17501

LOCTITE

6 ml

1шт.

18

1973995C1

PLATE

1шт.

19

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

20

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

21

1973955C1

SPRING

2шт.

22

1973953C1

COVER

1шт.

23

1092074R2

DECAL

540/1000

1шт.
