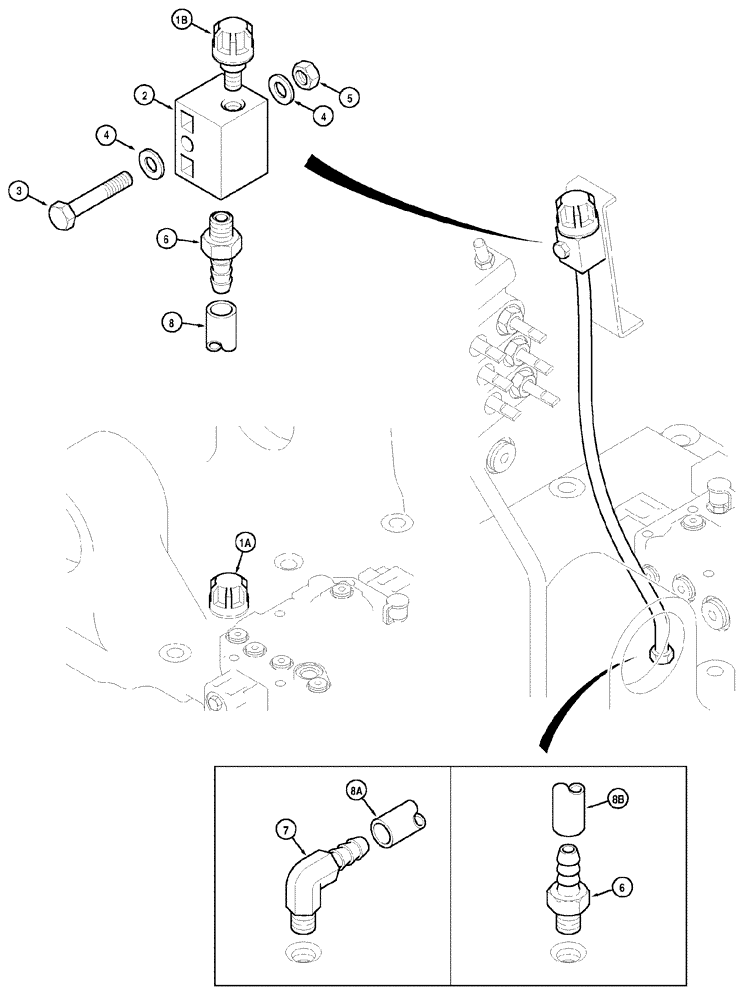

Запчасти Case IH MX150 (06-23) - BREATHER ASSY (21) - TRANSMISSION

30 kph

1шт.

1b

1971726C1

BREATHER,1/4" - 18

40 kph

1шт.

1c

1971726C1

BREATHER,1/4" - 18

1шт.

2

132093A2

BLOCK

1шт.

3

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

1шт.

4

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

5

825-1410

NUT,M10, Cl 8

1шт.

6

220-502

COUPLING, BREAK AWAY

2шт.

7

217-294

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/4" Male NPTF

If so Equipped

1шт.

8b

332720A1

HOSE

530 mm, Use With 7, Cut From 2 x 382997C2

1шт.

8c

336050A1

HOSE

460 mm, Cut From 2 x 382997C2

1шт.

382997C2

HOSE,Bulk, 1/4" ID x 25 FT L

Bulk Length

1шт.
