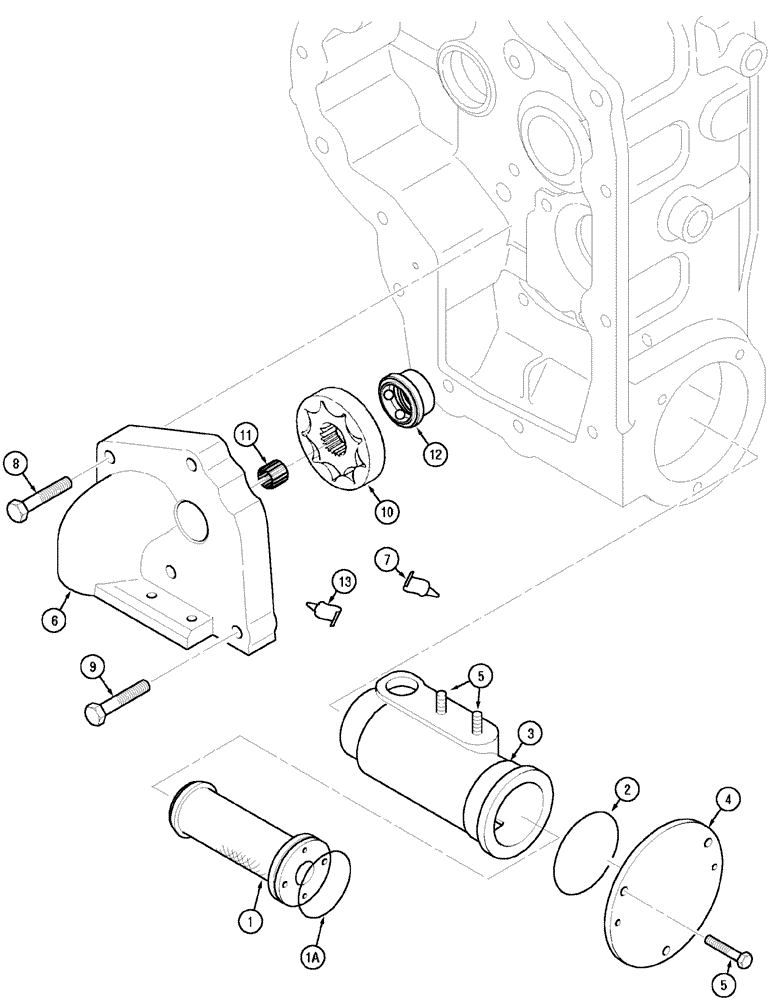

Запчасти Case IH MX150 (06-22) - OIL PUMP AND FILTER (21) - TRANSMISSION

1

240856A3

FILTER STRAINER,100 Mesh

Includes 1A

1шт.

1a

238-5240

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

1шт.

2

238-5155

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

1шт.

3

230762A2

HOUSING

1шт.

4

230763A3

COVER

1шт.

5

628-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

5шт.

6

230761A2

SUPPORT ASSY.

1шт.

7

345-118

SEALANT

6 ml

1шт.

8

828-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

2шт.

9

828-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

2шт.

10

231430A1

ROTOR

1шт.

11

205369R91

NEEDLE BEARING,Needle, 41.26mm ID x 50.81mm OD x 15.88mm W

1шт.

12

1341089C1

SPLINED COUPLING

1шт.

13

345-49

SEALANT

1 ml, Order B17577 (6 ml), B17578 (10 ml), B17422 (50 ml)

1шт.
