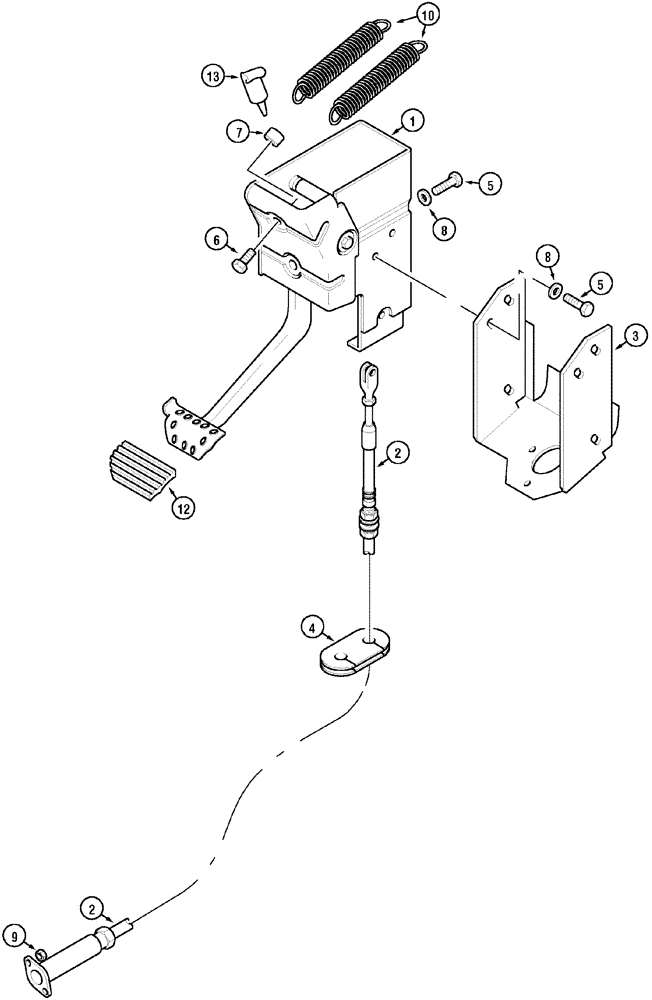

Запчасти Case IH MX150 (06-21) - INCHING PEDAL (21) - TRANSMISSION

1

282767A1

PEDAL ASSY.

1шт.

2

284283A1

CABLE ASSY.

1шт.

3

193345A3

SUPPORT

1шт.

4

226913A2

GROMMET

1шт.

5

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

6шт.

6

628-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 10.9, Full Thd

1шт.

6

628-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9, Full Thd

If so equipped

1шт.

7

393994A1

CAP

1шт.

8

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

9

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

284991A1

SPARE PART SET

Consists Of 10,11

1шт.

10

NSS

NOT SOLD SEPARAT

Spring, Return

2шт.

11

NSS

NOT SOLD SEPARAT

Bushing, Not Illustrated

1шт.

12

282803A1

PAD

1шт.

13

345-600

LOCTITE

Europe Only

1шт.

13

B508932

LOCTITE

N.A. Only

1шт.
