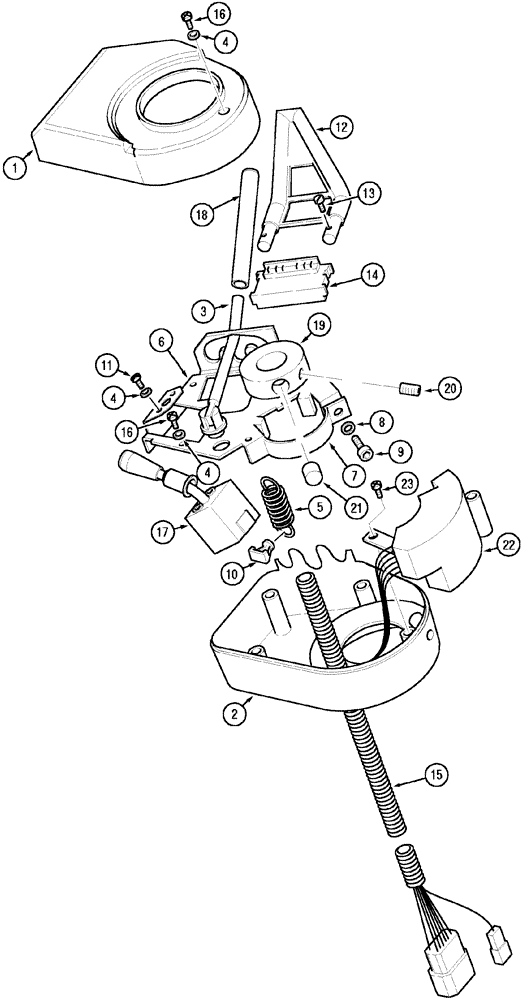

Запчасти Case IH MX150 (06-19) - FORWARD / NEUTRAL / REVERSE CONTROLS (21) - TRANSMISSION

251136A4

LEVER ASSY.

Manual Control, Consists Of 1 - 17A,18

1шт.

253678A4

LEVER ASSY.

Automatic Return, Consists Of 1 - 16,17B - 23

1шт.

1

130483A2

COVER

1шт.

2

130484A2

COVER

1шт.

3

341303A2

LEVER ASSY.

Includes 18,23

1шт.

4

892-11004

LOCK WASHER,M4

6шт.

5

250939A1

SPRING

1шт.

144626A3

SUPPORT ASSY.

Consists Of 6 - 10

1шт.

6

NSS

NOT SOLD SEPARAT

Support

1шт.

7

144628A1

SUPPORT

1шт.

8

893-16005

LOCK WASHER,Int Tooth, M5

1шт.

9

864-5025

HEX SOC SCREW,M5 x 25mm, Cl 8.8

1шт.

10

241096A1

PLASTIC RING

1шт.

11

840-146

SCREW,Pan, M4 x 6mm, Cl 4.8

CL 4.8

2шт.

12

144625A1

PROTECTOR

1шт.

13

905974R1

SELF-TAP SCREW,Pan Hd, M2.9 x 13

2шт.

14

144631A1

TOGGLE SWITCH

1шт.

14

390854A1

SWITCH

With Safety Element

1шт.

15

226164A1

CABLE ASSY.

Manual Control

1шт.

15

302886A1

CABLE ASSY.

Automatic Return

1шт.

16

840-1410

SCREW,Pan, M4 x 10mm, Cl 4.8

4шт.

17b

223958A2

FLASHER SWITCH

Turn Signal, Use With 251136A3

1шт.

17c

246625A2

FLASHER SWITCH

Turn Signal, Use With 253678A3

1шт.

18

325533A1

HANDLE

1шт.

19

253679A1

RING

Magnetic, Turn Signal, Includes 20,21

1шт.

20

NSS

NOT SOLD SEPARAT

Setscrew

1шт.

21

NSS

NOT SOLD SEPARAT

Magnet

3шт.

22

302885A1

SENSOR

1шт.

23

760-14395

SELF-TAP SCREW,Pan Hd, M4.2 x 9.5

1шт.

24

800-438

CIRCLIP,M8

Not Illustrated

1шт.
