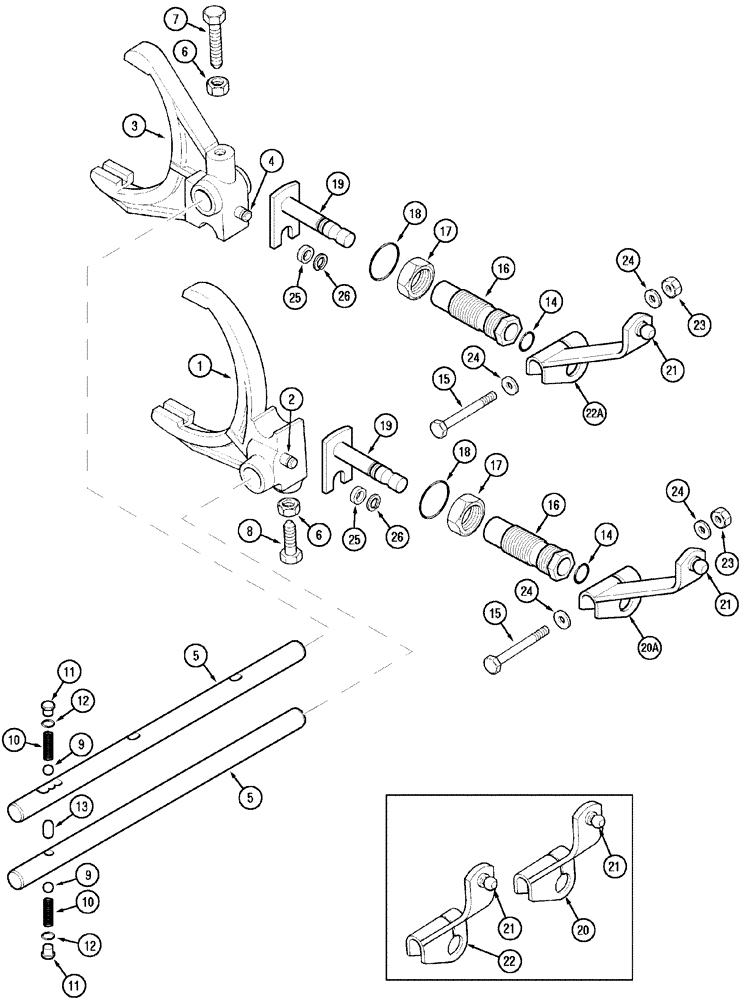

Запчасти Case IH MX150 (06-15) - RANGE SHIFT LINKAGE (21) - TRANSMISSION

230802A1

SHIFTER FORK

1st And 2nd Gear, Consists Of 1,2

1шт.

1

NSS

NOT SOLD SEPARAT

Fork

1шт.

2

A183146

SPLIT PIN/SAFETY PIN

1шт.

A188237

FORK

3rd And 4th Gear, Consists Of 3,4

1шт.

3

NSS

NOT SOLD SEPARAT

Fork

1шт.

4

A183146

SPLIT PIN/SAFETY PIN

1шт.

5

296793A1

SLIPPER

2шт.

6

829-1310

NUT,M10, Cl 10

2шт.

7

1345713C1

BOLT,Hex, M10 x 45mm, Cone Pt

M10 x 45

1шт.

8

1345714C1

BOLT,Hex, M10 x 30mm, Cone Pt

M10 x 30

1шт.

9

511-10120

BALL,12mm OD, Gr 28

2шт.

10

249143A1

SPRING

2шт.

11

221577A1

PLUG,Hex Soc, M16 x 1.5, ORB

Includes 12

2шт.

12

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

13

296794A1

PIN

1шт.

14

638-52150

O-RING,1.8mm Thk x 15mm ID, Cl 5, 75 Duro

2шт.

15

828-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

2шт.

16

A188301

BUSHING,18.05mm ID x 27.1mm OD x 77.1mm L

2шт.

17

218-1280

BHD LOCK NUT,Blkhd, 1 1/16"-12

2шт.

18

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

19

1341113C1

LEVER

2шт.

20

222343A1

LEVER ASSY.

1st And 2nd Gear, Serial No. - JJE0980610, Includes 21

1шт.

315497A1

LEVER ASSY.

1st And 2nd Gear, Serial No. JJE0980611 -, Includes 20A,21

1шт.

20b

315496A1

LEVER

1шт.

21

3234708R1

BALL STUD

BALL PIN

1шт.

22

222346A2

LEVER ASSY.

3rd And 4th Gear, Serial No. - JJE0980610, Includes 21

1шт.

315499A1

LEVER ASSY.

3rd And 4th Gear, Serial No. JJE0980611 -, Includes 21,22A

1шт.

22b

315498A1

LEVER

1шт.

23

829-1312

NUT,M12 x 1.75, Cl 10

2шт.

24

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

25

A178954

SLEEVE

2шт.

26

100-3344

SNAP RING,#X43, .438" Dia, E-Type

2шт.
