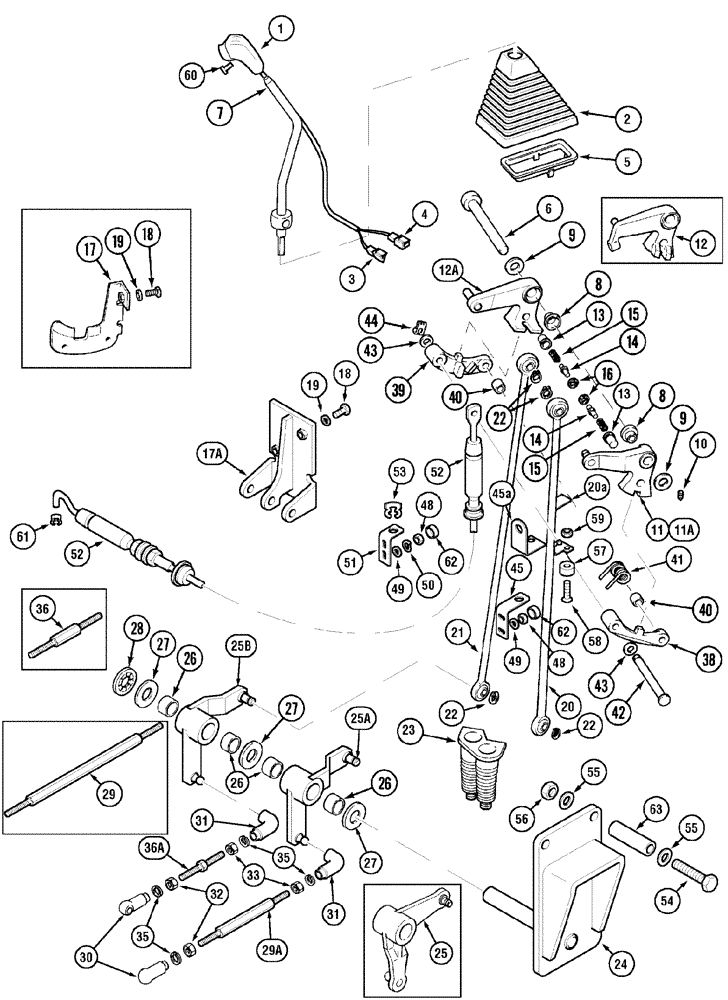

Запчасти Case IH MX150 (06-14) - RANGE SHIFT CONTROLS (21) - TRANSMISSION

1

193633A7

HANDLE

With Switch, Includes 2,3,4,60,64

1шт.

2

1533271C1

BOOT

1шт.

3

225294C1

ELEC CONNECTOR,Male, 3 Pin

1шт.

4

222136A1

ELEC CONNECTOR,Male, 2 Pin

1шт.

225297C1

ELEC CONNECTOR

Not Illustrated, Used With 222136A1

1шт.

5

241536A1

SUPPORT

1шт.

6

234408A2

PIN,M27 x 1.5 x 3"

1шт.

7

237236A4

LEVER

1шт.

7b

314140A1

LEVER

Nylon Coating

1шт.

8

T101960

BUSHING,14mm ID x 17mm OD x 20mm L

2шт.

9

T102056

WASHER

2шт.

10

307233A1

HEX SOC SCREW

6 x 8 mm

1шт.

11

238726A1

ARM

Right, Includes 1534651C1

1шт.

11b

311736A1

ARM ASSY.

Right, Includes 1534651C1

1шт.

12

238725A1

ARM

Left, Includes 1534651C1

1шт.

12b

311737A1

ARM ASSY.

Left, Includes 1534651C1

1шт.

13

1534604C1

BUSHING

1шт.

14

T102057

SPLIT PIN/SAFETY PIN

1шт.

15

T102181

SPRING

1шт.

16

1534604C1

BUSHING

If so equipped

2шт.

17

199453A1

SUPPORT

Serial No. - JJA0101628

1шт.

17b

309397A1

SUPPORT ASSY.

Serial No. JJA0101629 -

1шт.

18

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

19

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

20

247381A1

TRUSS ROD

Serial No. - JJE0982433

1шт.

20b

339497A1

STEM

Actuator, Serial No. JJE0982434 -

1шт.

21

237381A1

ROD ASSY.

1шт.

22

800-437

CIRCLIP,M7

4шт.

23

276599A1

BELLOWS

1шт.

24

237238A1

SUPPORT

1шт.

25

237891A1

LEVER ASSY.

1st And 2nd Gear, Serial No. - JJE0980610, Includes 26

2шт.

25b

318468A1

LEVER ASSY.

1st And 2nd Gear, Serial No. JJE0980611 -, Includes 26

2шт.

25

237893A1

LEVER ASSY.

3rd And 4th Gear, Serial No. - JJE0980610, Includes 26

2шт.

25c

318469A1

LEVER ASSY.

3rd And 4th Gear, Serial No. JJE0980611 -, Includes 26

2шт.

26

1533538C1

PLASTIC RING

2шт.

27

T102217

WASHER,20.1mm ID x 35mm OD x 2mm Thk

3шт.

28

1533658C1

CLAMP,19.4mm ID x 36.5mm OD x 3mm Thk

1шт.

29

255563A1

ROD

1st And 2nd Gear, Serial No. - JJE0980610

1шт.

29b

318473A2

ROD

1st And 2nd Gear, Serial No. JJE0980611 -

1шт.

30

T103566

BALL JOINT

2шт.

31

T103567

BALL SOCKET,M8

LH Thread

2шт.

32

933618R1

THIN NUT,Thin, M8 x 1.25, Cl 04

LH Thread

2шт.

33

905852R1

THIN NUT,Thin, M8 x 1.25, Cl 04, LH

2шт.

35

3233348R1

CLIP

4шт.

36

253852A1

ROD

3rd And 4th Gear, Serial No. - JJE0980610

1шт.

36b

318474A2

ROD

3rd And 4th Gear, Serial No. JJE0980611 -

1шт.

38

120188A2

PAWL

Right

1шт.

39

120189A1

PAWL

Left

1шт.

40

120191A2

SPACER

2шт.

41

131688A3

SPRING

1шт.

42

120190A1

HEADED PIN

6 x 45 mm

2шт.

42

309399A1

HEADED PIN

6 x 54 mm

2шт.

43

933907R1

WAVE WASHER,M6.4 ID x 12 OD x .5 Thk

1шт.

44

T102674

CLIP

2шт.

45

245554A1

SUPPORT

Magnetic, Serial No. - JJE0982433

1шт.

45b

339980A1

SUPPORT

Actuator, Use With 20A, Serial No. JJE0982434 -

1шт.

48

829-1406

NUT,Hex, M6 x 1, Cl 10.9

4шт.

49

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

50

892-11006

LOCK WASHER,M6

2шт.

51

245753A1

SUPPORT

1шт.

52

245843A2

CABLE ASSY.

1шт.

53

800-4313

CIRCLIP,M13

1шт.

54

814-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 8.8

2шт.

55

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

56

829-1412

NUT,M12, Cl 10.9

2шт.

57

140699A1

FITTING

Serial No. - JJE0982433

2шт.

58

295278A1

SCREW

4 x 25 mm, Serial No. - JJE0982433

2шт.

59

824-1404

NUT,M4, Cl 5

2шт.

60

878-2048

SET SCREW,Hex Skt, M4 x 8mm, Cone Pt

1шт.

61

800-436

CIRCLIP,M6

1шт.

62

3221725R1

CAP

6 mm

2шт.

63

321772A1

SPACER

2шт.
