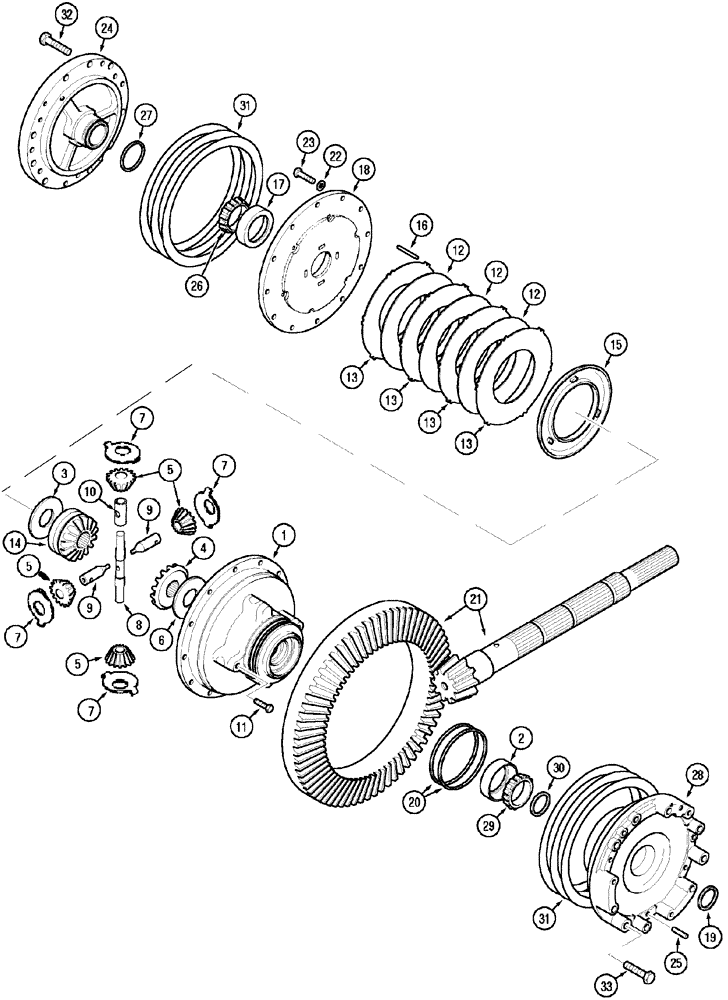

Запчасти Case IH MX150 (06-09) - TRANSMISSION RANGE DIFFERENTIAL (21) - TRANSMISSION

1

1997751C1

CAGE

1шт.

2

529453R1

BEARING, CUP

1шт.

3

94646C2

LOCK WASHER,88mm ID x 144mm OD x 1.62mm Thk

1шт.

4

1264681C2

GEAR

22T

1шт.

4

1264796C2

GEAR

20T

1шт.

5

1264923C2

GEAR

12T

4шт.

6

94647C2

THRUST WASHER,58mm ID x 124mm OD x 1.62mm Thk

1шт.

7

94645C2

THRUST WASHER,28mm ID x 75mm OD x 1.5mm Thk

4шт.

8

1276902C3

LONG SHAFT

Pinion, Long

1шт.

9

1285777C3

SHORT SHAFT

Pinion, Short

2шт.

10

1963820C1

SPACER

1шт.

11

1997421C1

BOLT

2шт.

12

137802C1

PLATE ASSY.

3шт.

13

92915C1

PLATE,192mm ID x 322mm OD x 2.74mm Thk

4шт.

14

1264682C2

GEAR

22T, Diff Lock

1шт.

14

1264795C2

GEAR

20T, Diff Lock

1шт.

15

1997422C1

PISTON

1шт.

16

137023A1

DOWEL

10 x 60 mm

6шт.

17

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

1шт.

18

94644C1

COVER ASSY

1шт.

19

139059C1

SEAL,70mm ID x 90mm OD x 8mm Thk

2шт.

20

148940C1

RING

2шт.

21

228623A1

BEVEL GEAR

1шт.

22

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

12шт.

23

828-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 10.9

12шт.

24

137756C2

RETAINER

Left

1шт.

25

136433A1

DOWEL,M12 x 65mm, HDN

12 x 65 mm

10шт.

26

622336C1

ROLLER BEARING,84.99mm ID x 30mm W

1шт.

27

139060C2

SEAL,82.6mm ID x 88.6mm OD x 4.5mm Thk

1шт.

28

248495A1

HOUSING

Right

1шт.

29

529452R1

BEARING ASSY,2.9528" ID x 4.5276" OD x 0.9843"

1шт.

30

148942C2

RING

1шт.

31

120509C2

SHIM

0,18 mm

1шт.

31

120510C2

SHIM

0,31 mm

1шт.

31

120511C2

SHIM

0,74 mm

1шт.

31

120512C2

SHIM

0,10 mm

1шт.

31

120513C2

SHIM,290mm ID x 388mm OD x 0.08mm Thk

0,09 mm

1шт.

32

613-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 8.8, Full Thd

Hex, M16 x 40, 8.8, Full Thd

3шт.

33

613-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 8.8, Full Thd

Hex, M16 x 45, 8.8, Full Thd

3шт.
