Запчасти Case IH MX150 (06-08[2]) - TRANSMISSION FORWARD AND REVERSE, ASN JKA0454540 (21) - TRANSMISSION

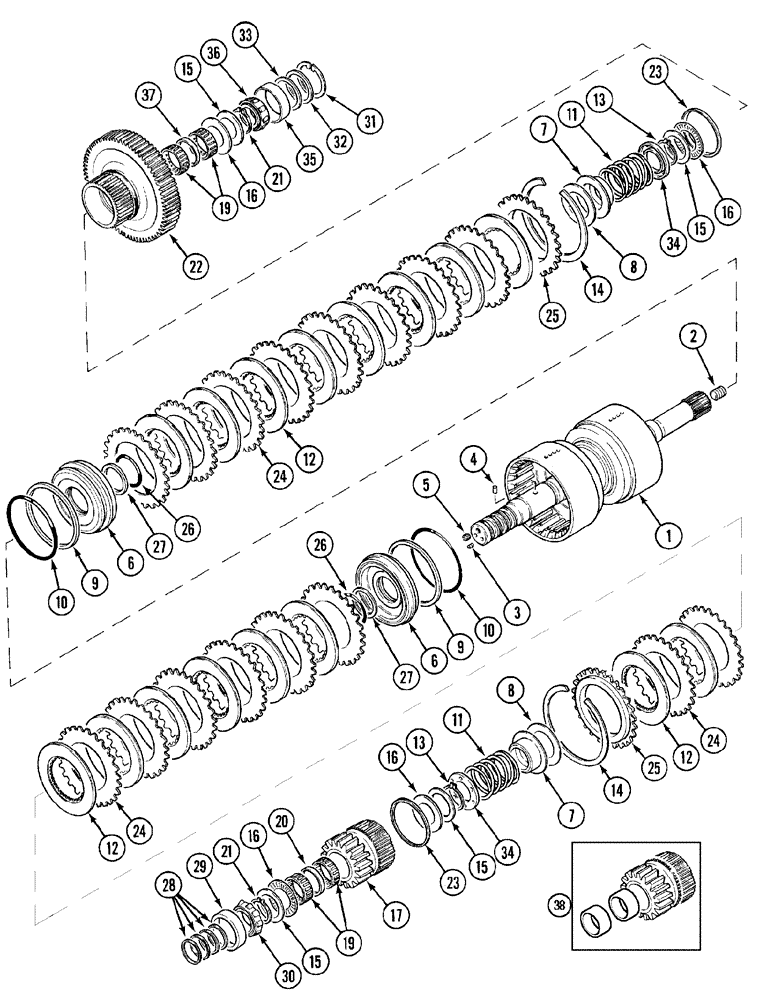

Схема запчастей Case IH MX150 - (06-08[2]) - TRANSMISSION FORWARD AND REVERSE, ASN JKA0454540 (21) - TRANSMISSION
11
9
25
27
17
13
33
12
25
27
15
10
16
15
14
2
31
24
19
16
7
10
16
3
21
16
15
5
38
30
32
8
20
8
23
35
22
34
7
28
21
11
26
6
23
36
15
14
4
26
37
12
12
34
24
19
1
13
9
29
6
24

Артикул

Название

Примечание

Количество

356733A1

SHAFT

Consists Of 1 - 5

1шт.

1

347027A1

SHAFT

1шт.

2

A183506

SET SCREW

1шт.

2b

B17197

LOCTITE

50 ml

1шт.

3

1345889C1

PLUG

6,5 mm OD

2шт.

4

38-1804

LOCK PIN,3.17mm OD x 6.35mm L, Slotted

2шт.

5

1342851C1

PLUG

10 mm

1шт.

6

329889A1

PISTON

121.8 x 19.65 mm

2шт.

7

1997131C1

SLEEVE

2шт.

8

A188134

SHIM,48.27mm ID x 66mm OD x 0.68mm Thk

0,75 mm

1шт.

8

A188135

SHIM,48.27mm ID x 66mm OD x 0.93mm Thk

1,00 mm

1шт.

8

A188136

SHIM,48.27mm ID x 66mm OD x 1.18mm Thk

1,25 mm

1шт.

8

A188137

SHIM,48.27mm ID x 66mm OD x 2.17mm Thk

2,25 mm

1шт.

9

329896A1

SEAL,128.35mm ID x 135.63mm OD x 2.92mm Thk

2шт.

10

238-7158

O-RING,0.103" Thk x 4.737" ID, -158, Cl 7, 75 Duro

3 x 1/4 in

2шт.

11

A188080

SPRING

2шт.

12

345334A1

FACING

16шт.

13

100-16156

SNAP RING,#156, Ext

3шт.

14

345337A1

RING

2шт.

15

A159463

SHIM,40.05mm ID x 59.94mm OD x 2.25mm Thk

4шт.

16

A175486

THRUST BEARING,40.05mm ID x 61.85mm OD x 3.85mm W

4шт.

17

253575A2

PINION

Reverse

1шт.

19

A175487

NEEDLE BEARING,39.99mm ID x 45.02mm OD x 16.8mm W

4шт.

20

A175489

SPACER,41mm ID x 44mm OD x 9.9mm L

1шт.

21

100-16150

SNAP RING,#150, Ext

1шт.

22

253576A2

SPROCKET ASSY.

Forward

1шт.

23

257277A1

SEALING RING,Locking, 79.8mm ID x 89.2mm OD x 3.5mm Thk

SEALRING

2шт.

24

345335A2

PLATE

16шт.

25

345336A1

CLUTCH DRIVING PLATE

2шт.

26

238-7137

O-RING,0.103" Thk x 2.05" ID, -137, Cl 7, 75 Duro

2шт.

27

A159297

SEAL,47.2mm ID x 54.1mm OD x 3.1mm Thk

SEALRING

2шт.

28

A175509

SEALING RING,32.81mm ID x 36.13mm OD x 2.38mm Thk

SEALRING

4шт.

29

530745R1

BEARING, CUP

1шт.

30

406535R91

ROLLER BEARING,1.5005" ID x 3.251" OD x 1.1643, 0.9063"

1шт.

31

800-2185

SNAP RING,M85 x 3, Int

1шт.

32

232655A1

SPACER

1шт.

33

232656A1

SHIM

0.08

1шт.

33

232657A1

SHIM,73mm ID x 85mm OD x 3.23mm Thk

0.13

1шт.

33

232658A1

SHIM

0.18

1шт.

33

232659A1

SHIM,73mm ID x 85.37mm OD x 0.51mm Thk

0.51

1шт.

34

A186965

RETAINER,40.38mm ID x 64.63mm OD x 4.75mm Thk

2шт.

35

ST951

TAPERED BEARING,1.6255" ID x 3.376" OD x 1.202"

1шт.

36

234834A1

BEARING, ROLLER,40.01mm ID x 30.07mm W

1шт.

37

232661A1

SPACER

1шт.

38

NSS

NOT SOLD SEPARAT

Gear Assy, Reverse, Order Ref 17,19,20

1шт.

Выбрано товаров: 45
