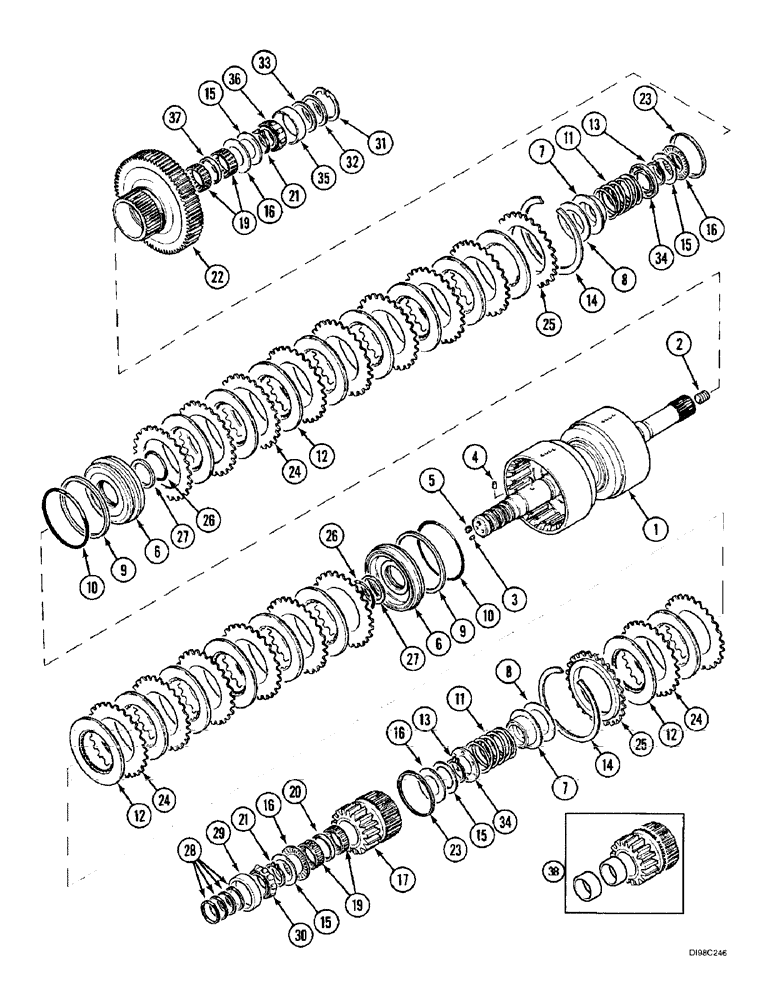

Запчасти Case IH MX150 (06-08[1]) - TRANSMISSION - FORWARD AND REVERSE, BSN JKA0454540 (21) - TRANSMISSION

253626A1

SHAFT ASSY.

Shaft Assy, 62321 Consists Of : 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

Shaft Assy

1шт.

2

A183506

SET SCREW

Screw

1шт.

3

1345889C1

PLUG

Expansion 6,5 mm OD

2шт.

4

38-1804

LOCK PIN,3.17mm OD x 6.35mm L, Slotted

PIN, LOCK, 1/8" x 1/4", Slotted

2шт.

5

1345887C1

PLUG

9 mm

1шт.

6

253492A1

PISTON

2шт.

7

1997131C1

SLEEVE

2шт.

8

A188134

SHIM,48.27mm ID x 66mm OD x 0.68mm Thk

Spacer 0,75 mm

1шт.

8

A188135

SHIM,48.27mm ID x 66mm OD x 0.93mm Thk

Spacer 1,00 mm

1шт.

8

A188136

SHIM,48.27mm ID x 66mm OD x 1.18mm Thk

Spacer 1,25 mm

1шт.

8

A188137

SHIM,48.27mm ID x 66mm OD x 2.17mm Thk

Spacer 2,25 mm

1шт.

9

A158051

SEAL,116.49mm ID x 123.91mm OD x 3.07mm Thk

Oil

2шт.

10

238-7156

O-RING,0.103" Thk x 4.237" ID, -156, Cl 7, 75 Duro

2шт.

11

A188080

SPRING

2шт.

12

1997129C1

NOTCHED DISK

Plate, Friction

16шт.

13

100-16156

SNAP RING,#156, Ext

Ring, Snap, #156, Ext

2шт.

14

1285996C1

SNAP RING,151mm OD, Internal

Ring, Retaining

2шт.

15

A159463

SHIM,40.05mm ID x 59.94mm OD x 2.25mm Thk

Washer, Thrust

4шт.

16

A175486

THRUST BEARING,40.05mm ID x 61.85mm OD x 3.85mm W

Bearing, Thrust

4шт.

17

253575A2

PINION

Gear Assy, 62321 Reverse

1шт.

19

A175487

NEEDLE BEARING,39.99mm ID x 45.02mm OD x 16.8mm W

Bearing, Needle

4шт.

20

A175489

SPACER,41mm ID x 44mm OD x 9.9mm L

1шт.

21

100-16150

SNAP RING,#150, Ext

Ring, Snap, #150, Ext

2шт.

22

253576A2

SPROCKET ASSY.

Gear Assy, 62321 Forward

1шт.

23

257277A1

SEALING RING,Locking, 79.8mm ID x 89.2mm OD x 3.5mm Thk

Seal

2шт.

24

A175806

PLATE

Separator

16шт.

25

1997122C1

PLATE

2шт.

26

238-7137

O-RING,0.103" Thk x 2.05" ID, -137, Cl 7, 75 Duro

2шт.

27

A159297

SEAL,47.2mm ID x 54.1mm OD x 3.1mm Thk

Seal, Oil

2шт.

28

A175509

SEALING RING,32.81mm ID x 36.13mm OD x 2.38mm Thk

Ring, Seal

4шт.

29

530745R1

BEARING, CUP

Bearing, Cup 2-31/64

1шт.

30

406535R91

ROLLER BEARING,1.5005" ID x 3.251" OD x 1.1643, 0.9063"

Cone Assy

1шт.

31

800-2185

SNAP RING,M85 x 3, Int

RING, SNAP, M85 x 3, Int

1шт.

32

232655A1

SPACER

1шт.

33

232656A1

SHIM

0.08

1шт.

33

232657A1

SHIM,73mm ID x 85mm OD x 3.23mm Thk

0.13

1шт.

33

232658A1

SHIM

0.18

1шт.

33

232659A1

SHIM,73mm ID x 85.37mm OD x 0.51mm Thk

0.51

1шт.

34

A186965

RETAINER,40.38mm ID x 64.63mm OD x 4.75mm Thk

2шт.

35

ST951

TAPERED BEARING,1.6255" ID x 3.376" OD x 1.202"

Bearing, Cup

1шт.

36

234834A1

BEARING, ROLLER,40.01mm ID x 30.07mm W

Bearing, Cone

1шт.

37

232661A1

SPACER

1шт.

38

NSS

NOT SOLD SEPARAT

Gear Assy, 62321 Reverse Order : REF 17,19,20

1шт.
