Запчасти Case IH MX150 (06-06) - TRANSAXLE HOUSING (21) - TRANSMISSION

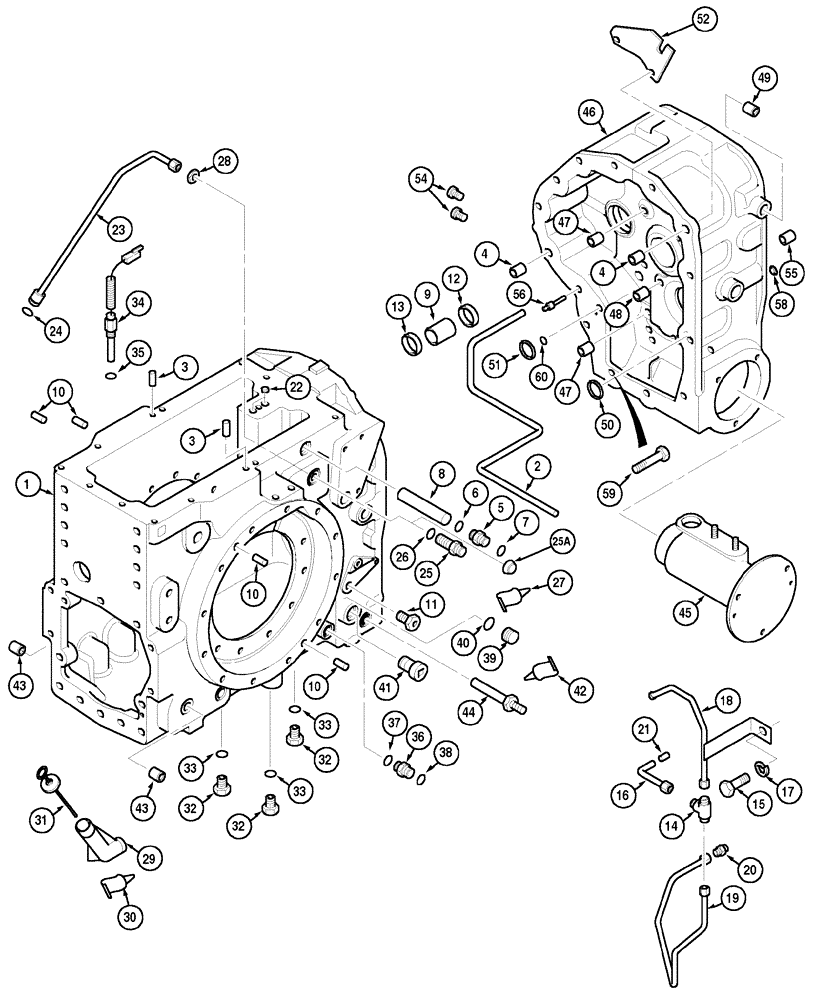

Схема запчастей Case IH MX150 - (06-06) - TRANSAXLE HOUSING (21) - TRANSMISSION
39
10
33
10
32
32
35
2
34
45
48
12
42
5
41
51
44
54
32
31
40
16
22
15
43
11
47
30
23
10
4
33
29
28
52
33
3
49
26
3
17
56
50
13
9
55
4
36
58
8
19
7
59
20
24
1
14
47
46
6
21
27
38
60
18
25
43
37

Артикул

Название

Примечание

Количество

294774A1

HOUSING ASSY.

Drive, Consists Of 1 - 10,43

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

302819A1

TUBE,9.52 mm OD, 272.1, 208.7 mm Length

4WD

1шт.

3

837-20040

DOWEL,M20 x 40

20 x 40 mm

2шт.

4

A175944

DOWEL,22.1mm OD x 13.5mm L

2шт.

5

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. 6, 7

1шт.

6

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

7

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

8

258564A1

TUBE,19.05 mm OD, 151 mm Length

1шт.

9

A183013

BUSHING

1шт.

10

837-16040

DOWEL,M16 x 40

4шт.

11

1960881C1

PLUG

Trailer Brake

1шт.

12

530745R1

BEARING, CUP

1шт.

13

17498D

TAPERED BEARING," ID x 76.2125 mm OD x 23.9135 mm

1шт.

14

218-592

TEE,1/2"-20 37 Degree

1шт.

15

628-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

M12 x 25; 10.9

1шт.

16

298218A1

PIPE,8 mm OD, 56, 35 mm Length

Pinion, Lubrication

1шт.

17

892-11012

LOCK WASHER,M12

1шт.

18

298219A1

PIPE,8 mm OD, 90, 72 mm Length

1шт.

19

298220A1

PIPE,8 mm OD, 213, 187, 178 mm Length

Supply, Lubrication

1шт.

20

218-1089

HYD CONNECTOR,1/2"-20, 37 Degree x 3/8"-18, NPTF

1шт.

21

347355A1

SLEEVE

1шт.

22

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

2шт.

23

247307A2

PIPE

Diff Lock, Pressure

1шт.

24

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

25

701-120

UNION,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS

Includes 26

1шт.

25b

641-1330

PLUG,M30, Tapered

Version Without Hitch

1шт.

26

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

27

B17197

LOCTITE

50 ml

1шт.

27b

345-75

SEALANT

Version Without Hitch

1шт.

28

701-909

NUT,11/16" - 16

1шт.

29

A150353

TUBE

Oil Filler, Housing

1шт.

30

345-65

ADHESIVE

312 (1 ml)

1шт.

31

A180978

FILLER CAP

1шт.

32

220067A1

PLUG,M22 x 1.5 ORB

Includes 33

3шт.

33

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

34

252705A1

SENSOR

Axle, Speed, Serial Range: -JJA0108300

1шт.

34

392216A1

SENSOR

Axle Speed, Serial Range: -JJA0108301

1шт.

35

637-63173

O-RING,2.2mm Thk x 17.3mm ID, Cl 6, 75 Duro

1шт.

36

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 37, 38

1шт.

37

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

38

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

39

220066A1

PLUG,M18 x 1.5, ORB

Includes 40, 2WD

1шт.

40

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

41

86637727

DRAIN PLUG,Sq Soc, 1 1/4"-11 1/2, NTPF

1-1/4 in, In Place Of 536850R1

1шт.

42

345-166

LOCTITE

545 (1 ml)

1шт.

43

179309A1

BUSHING

2шт.

44

536850R1

HEATER

1шт.

45

REF

INSTRUCTION

Screen Assy, Oil Filter Element, See Page(s) 6-22

1шт.

295015A1

HOUSING

Range, Consists Of 46 - 49,54,55

1шт.

46

NSS

NOT SOLD SEPARAT

Housing

1шт.

47

A175944

DOWEL,22.1mm OD x 13.5mm L

2шт.

48

A188710

BUSHING

2шт.

49

A188099

BUSHING

1шт.

50

239-5129

O-RING,Square, 0.094" Thk x 1.563" ID, -129, Cl 5, 75 Duro

1шт.

51

239-5117

O-RING,Quad, 0.094" Thk x 0.813" ID, Cl 5, 75 Duro

1шт.

52

251420A1

SUPPORT

Cable

1шт.

53

828-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

Not Illustrated

2шт.

54

139312A1

PLUG,Expansion, 6mm OD

6 mm

2шт.

55

1345887C1

PLUG

9 mm

1шт.

56

1342851C1

PLUG

10 mm, If So Equipped

1шт.

58

41-1620

PLUG,Cup, 1 1/4", Stainless

1/1/2004

1шт.

59

868-16045

12 PT SCREW,M18 x 45mm, Cl 12.9

Mi6 x 45; 12,9

1шт.

60

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

Выбрано товаров: 64
