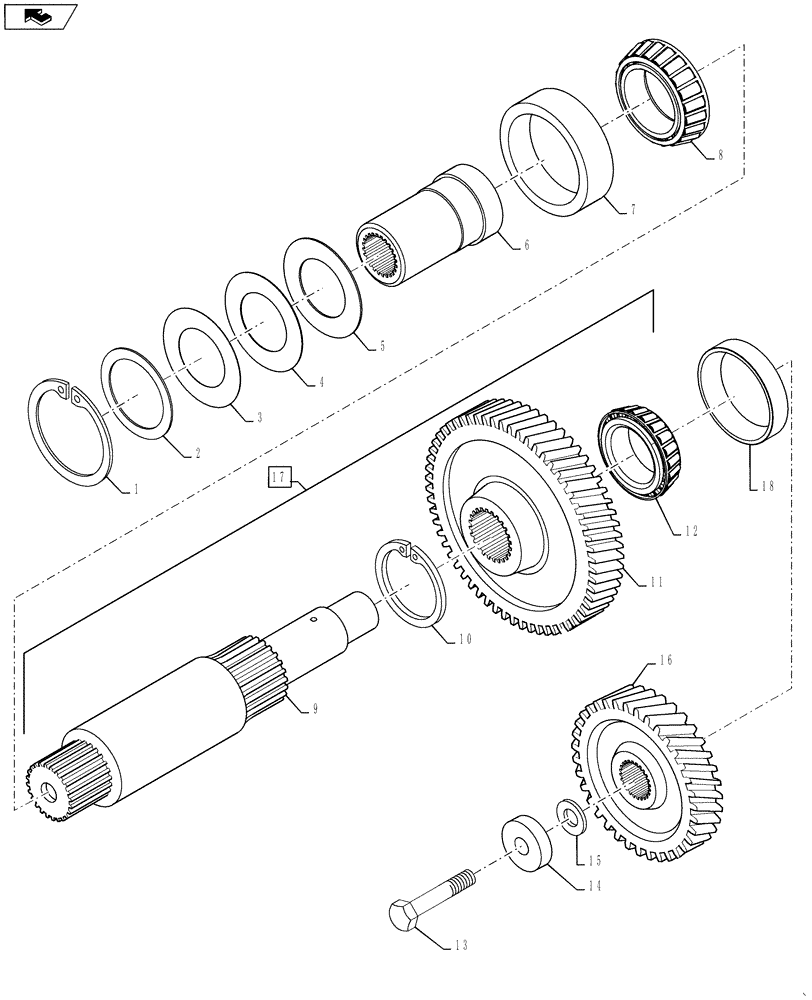

Запчасти Case IH MX150 (06-05) - TRANSMISSION MAIN SHAFT (21) - TRANSMISSION

Without Creep Speed

1шт.

1

800-2190

SNAP RING,M90, Int

1шт.

2

253480A1

WASHER

1шт.

3

253481A1

SHIM

0,15 mm

1шт.

4

253482A1

SHIM

0,20 mm

1шт.

5

253483A1

SHIM

0,30 mm

1шт.

6

253479A1

SPLINED COUPLING

1шт.

7

625743C1

BEARING CUP,90mm OD x 18.5mm W

3-35/64

1шт.

8

A61447

ROLLER BEARING,2.1651" ID x 0.9045" Thk

2-1/16 in ID

1шт.

9

302683A2

SHAFT

1шт.

10

100-16193

SNAP RING,#193, Ext

1шт.

11

302681A1

PINION

48T, 30 km/h

1шт.

11

302682A1

PINION

47T, 40 km/h, Europe Only

1шт.

12

239489A1

TAPERED BEARING,33.34mm ID x 28.49mm W

1шт.

13

828-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

1шт.

14

229025A1

WASHER

1шт.

15

A158879

SHIM,13mm ID x 30mm OD x 0.08mm Thk

1шт.

15

A158880

SHIM,13mm ID x 30mm OD x 0.31mm Thk

1шт.

16

246447A1

PINION

33T, 30 km/h

1шт.

16

249306A1

PINION

43T, 40 km/h, Europe Only

1шт.

17

NSS

NOT SOLD SEPARAT

Shaft Assy, Order REF 9 - 12

1шт.

18

865270R1

BEARING, CUP,76.21mm OD x 22.92mm W

1шт.
