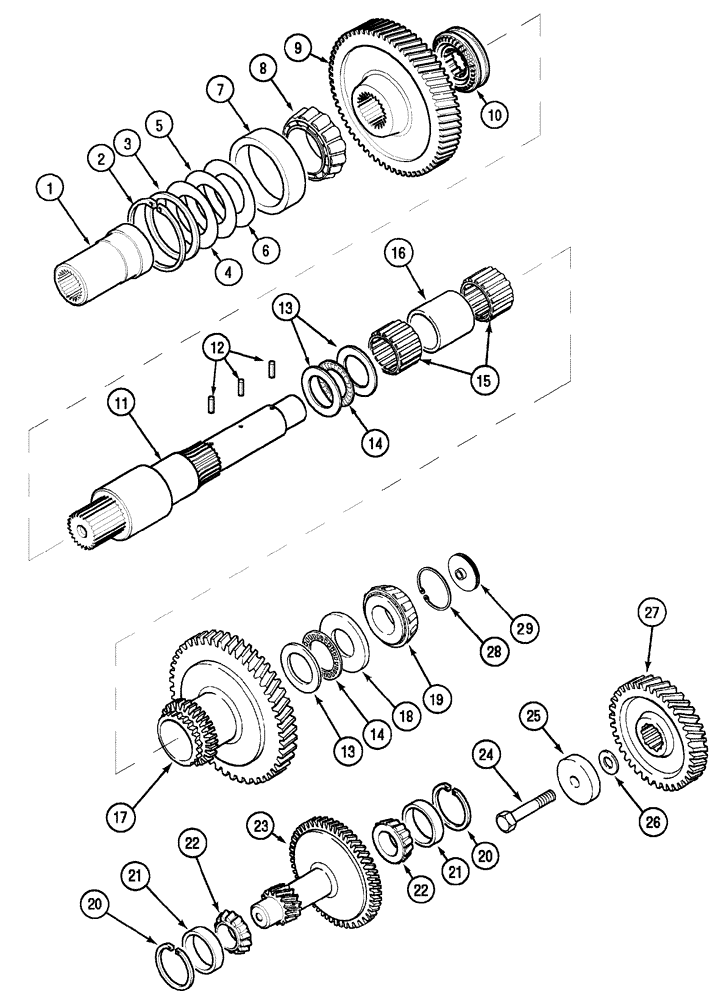

Запчасти Case IH MX150 (06-04) - TRANSMISSION MAIN SHAFT (21) - TRANSMISSION

With Creep Speed

1шт.

1

253479A1

SPLINED COUPLING

1шт.

2

800-2190

SNAP RING,M90, Int

1шт.

3

253480A1

WASHER

1шт.

4

253481A1

SHIM

0,15 mm

1шт.

5

253482A1

SHIM

0,20 mm

1шт.

6

253483A1

SHIM

0,30 mm

1шт.

7

625743C1

BEARING CUP,90mm OD x 18.5mm W

3-35/64

1шт.

8

A61447

ROLLER BEARING,2.1651" ID x 0.9045" Thk

2-1/16 in ID

1шт.

9

228790A1

GEAR

64T

1шт.

10

1345938C1

SYNCHRONIZER

1шт.

11

253478A1

SHAFT

1шт.

12

38-1804

LOCK PIN,3.17mm OD x 6.35mm L, Slotted

3шт.

13

A65414

WASHER,38.28mm ID x 55.04mm OD x 1.56mm Thk

3шт.

14

T41022

THRUST BEARING,38.22mm ID x 55.17mm OD x 1.98mm W

2шт.

15

613639C91

NEEDLE BEARING,38.09mm ID x 47.65mm OD x 25.4mm W

2шт.

16

234266A1

SPACER

1шт.

17

249327A1

PINION

30 kph

1шт.

17

249328A1

PINION

40 kph, Europe Only

1шт.

18

A183928

WASHER, THRUST

1шт.

19

239489A1

TAPERED BEARING,33.34mm ID x 28.49mm W

1шт.

20

253808A1

CIRCLIP

1,56 mm

1шт.

20

253809A1

CIRCLIP

1,66 mm

1шт.

20

253810A1

CIRCLIP

1,76 mm

1шт.

20

253811A1

CIRCLIP

1,86 mm

1шт.

21

642954R1

BEARING ASSY,1" ID x 2.441" OD x 0.8125"

2-7/16

2шт.

22

642955R91

BEARING ASSY,1.25" ID x 2.4409" OD x 0.75"

2шт.

23

228661A1

PINION

1шт.

24

828-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

1шт.

25

229025A1

WASHER

1шт.

26

A158879

SHIM,13mm ID x 30mm OD x 0.08mm Thk

1шт.

26

A158880

SHIM,13mm ID x 30mm OD x 0.31mm Thk

1шт.

27

246447A1

PINION

33T, 30 km/h

1шт.

27

249306A1

PINION

43T, 40 km/h, Europe Only

1шт.

28

86502284

SNAP RING,3.00", Int, #300

2шт.

29

1341140C1

DEFLECTOR

1шт.
