Запчасти Case IH MX150 (06-03) - SPEED TRANSMISSION - DROP SHAFT (21) - TRANSMISSION

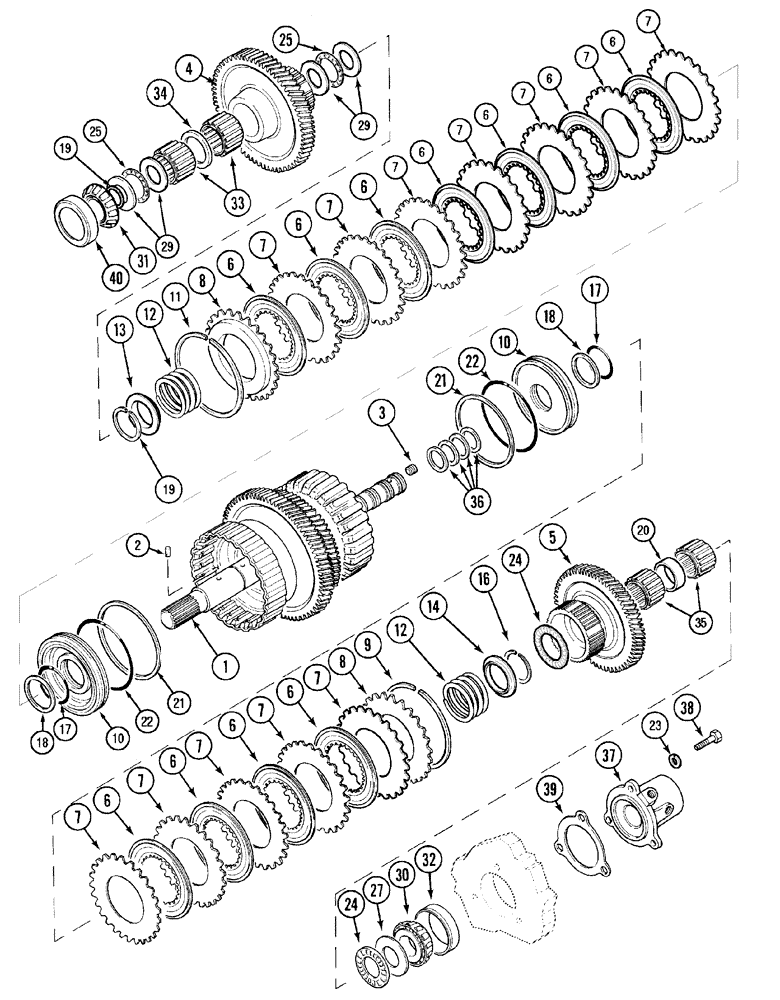

Схема запчастей Case IH MX150 - (06-03) - SPEED TRANSMISSION - DROP SHAFT (21) - TRANSMISSION
40
4
17
7
18
34
7
18
6
13
10
6
37
7
7
7
23
7
6
7
24
6
27
11
5
25
25
33
36
17
8
24
3
6
14
8
7
1
7
22
30
16
32
35
6
9
2
6
21
19
7
7
6
38
21
12
29
31
6
10
20
19
22
6
39
6
12
7
29

Артикул

Название

Примечание

Количество

347029A1

SHAFT

Drop, Consists Of 1 - 3

1шт.

347029A1 Shaft Assembly has 66 Teeth inside the C2 Clutch Can. Earlier Tractors used Shaft Assembly 255066A1 which had 26 Teeth inside the C2 Clutch Can. Shafts are Interchangeable as long as the Correct Clutch Plates are used.

1шт.

If the Prior Shaft 255066A1 is being used, the C2 and C4 Clutches are the same, and Parts for Both Clutches are the same. Use the Part Numbers called out for C4 for Both Clutches.

1шт.

1

NSS

NOT SOLD SEPARAT

Shaft

1шт.

2

38-1804

LOCK PIN,3.17mm OD x 6.35mm L, Slotted

3шт.

3

1345887C1

PLUG

9 mm

4шт.

4

246451A1

SPROCKET ASSY.

Drive, 2nd Speed, 68T, 30.0 mm (1-3/16 in) Gear Width

1шт.

5

228781A1

PINION

Drive, 4th Speed

1шт.

6

1997129C1

NOTCHED DISK

Use With C2

4шт.

Transmissin Serial Number BSN JKA0127945, And With All C4 Clutches

1шт.

6

345334A1

FACING

Use With C2

7шт.

Transmission Serial Number ASN JKA0127945

1шт.

7

A175806

PLATE

Use With C2

5шт.

Transmissin Serial Number BSN JKA0127945, And With All C4 Clutches

1шт.

7

345335A2

PLATE

Use With C2

7шт.

Transmission Serial Number ASN JKA0127945

1шт.

8

1997122C1

PLATE

Use With C4

1шт.

Transmissin Serial Number BSN JKA0127945, And With All C4 Clutches

1шт.

8

345336A1

CLUTCH DRIVING PLATE

Use With C2

1шт.

Transmission Serial Number ASN JKA0127945

1шт.

9

139987A1

SNAP RING,126.34mm ID x 142.4mm OD x 2.82mm Thk

1шт.

10

228799A1

PISTON

Use With C2

1шт.

Transmissin Serial Number BSN JKA0127945, And With All C4 Clutches

1шт.

10

345005A1

PISTON

Use With C2

1шт.

Transmission Serial Number ASN JKA0127945

1шт.

11

139987A1

SNAP RING,126.34mm ID x 142.4mm OD x 2.82mm Thk

Use With C2

1шт.

Transmissin Serial Number BSN JKA0127945, And With All C4 Clutches

1шт.

11

345337A1

RING

Use With C2

1шт.

Transmission Serial Number ASN JKA0127945

1шт.

12

228833A1

SPRING

2шт.

13

232867A1

RETAINER

1шт.

14

228805A1

COLLAR

1шт.

16

800-5148

SNAP RING,M48, Ext, Hvy

1шт.

17

238-7141

O-RING,0.103" Thk x 2.3" ID, -141, Cl 7, 75 Duro

2шт.

18

235660A1

SEAL,54.4mm ID x 60.75mm OD x 2.98mm Thk

2шт.

19

800-5150

SNAP RING,M50, Ext

2шт.

20

228803A1

SPACER

Inner

1шт.

21

A158051

SEAL,116.49mm ID x 123.91mm OD x 3.07mm Thk

Outer, Use With C2

1шт.

Transmissin Serial Number BSN JKA0127945, And With All C4 Clutches

1шт.

21

329896A1

SEAL,128.35mm ID x 135.63mm OD x 2.92mm Thk

Outer, Use With C2

1шт.

Transmission Serial Number ASN JKA0127945

1шт.

22

238-7156

O-RING,0.103" Thk x 4.237" ID, -156, Cl 7, 75 Duro

Use with C2

1шт.

Transmissin Serial Number BSN JKA0127945, And With All C4 Clutches

1шт.

22

238-7158

O-RING,0.103" Thk x 4.737" ID, -158, Cl 7, 75 Duro

3 x 1/4 in, Use With C2

1шт.

Transmission Serial Number ASN JKA0127945

1шт.

23

892-10010

LOCK WASHER,10.4mm ID x 18.1mm OD x 3.5mm Thk

3шт.

24

191431A1

BEARING ASSY,48.05mm ID x 71.65mm OD x 4.59mm W

2шт.

25

241601A1

BEARING, NEEDLE,50.91mm ID x 69.47mm OD x 1.98mm W

2шт.

27

A175396

WASHER, THRUST,36.6mm ID x 60mm OD x 2.3mm Thk

1шт.

29

A42844

WASHER,50.85mm ID x 69.6mm OD x 3.2mm Thk

4шт.

30

206214R91

CONE,36.49mm ID x 25.65mm W

1шт.

31

257929A1

ROLLER BEARING,49.99mm ID x 27.98mm W

1шт.

32

A175395

ROLLER BEARING,76.225 mm OD x 19.101 mm

1шт.

33

610828C91

NEEDLE BEARING,50.79mm ID x 60.35mm OD x 31.75mm W

2шт.

34

228802A1

GASKET

1шт.

35

228804A1

BEARING, NEEDLE,46.99mm ID x 52.02mm OD x 16.63mm W

2шт.

36

A175509

SEALING RING,32.81mm ID x 36.13mm OD x 2.38mm Thk

SEALRING

4шт.

37

A186393

HUB

1шт.

38

866-10035

12 PT SCREW,Flg, M10 x 35mm, Cl 12.9

3шт.

39

A183645

SHIM,77.5mm ID x 94mm OD x 0.09mm Thk

1шт.

39

A183646

SHIM,77.5mm ID x 100mm OD x 0.14mm Thk

1шт.

39

A183647

SHIM,77.5mm ID x 100mm OD x 0.28mm Thk

1шт.

39

A183648

SHIM,77.5mm ID x 94mm OD x 0.69mm Thk

1шт.

40

A75210

BEARING CUP,3.5433" OD x 0.9055"

1шт.

Выбрано товаров: 64
