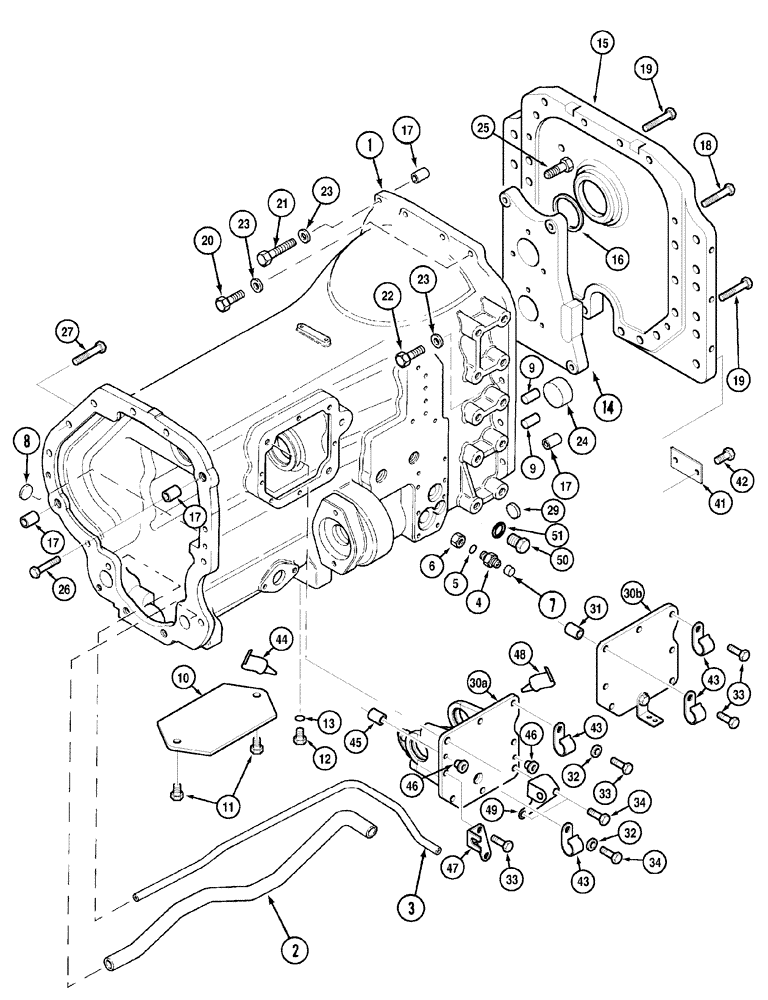

Запчасти Case IH MX150 (06-01) - TRANSMISSION HOUSING AND BEARING CARRIER (21) - TRANSMISSION

1

235017A1

HOUSING

Includes 2 - 9

1шт.

1

389806A1

HOUSING ASSY.

40Km/h, Includes 2 - 9

1шт.

2

A188229

TUBE

1шт.

3

A188230

TUBE

1шт.

4

280263A1

UNION

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

6

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

1шт.

7

353-364

CAP,13/16"-16

1шт.

8

41-1036

PLUG,Cup, 2 1/4"

1шт.

9

1345888C1

PLUG

2шт.

10

311857A1

COVER

1шт.

11

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

11

628-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

12

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl Ref 13

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

14

228651A1

COVER

1шт.

15

198369A2

COVER

1шт.

16

L126169

SEAL,57.15mm ID x 89.03mm OD x 12.7mm Thk

1шт.

17

A175944

DOWEL,22.1mm OD x 13.5mm L

4шт.

18

828-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

2шт.

19

828-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

8шт.

20

828-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 10.9

1шт.

21

828-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9

1шт.

22

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

6шт.

23

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

24

1341280C1

PLUG

2WD

1шт.

25

828-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

4шт.

26

828-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

5шт.

27

628-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

9шт.

29

A175414

PLUG

1шт.

30b

253807A2

COVER

With Creep Speed

1шт.

30c

A190246

COVER

Without Creep Speed

1шт.

31

A50011

SLEEVE

2шт.

32

896-12010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

11 x 21 x 2,5 mm, With Creep Speed

4шт.

33

628-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

Without Creep Speed

8шт.

33

628-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

With Creep Speed

6шт.

34

828-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

With Creep Speed

2шт.

41

NSS

NOT SOLD SEPARAT

Plate

1шт.

42

301-1434

DRIVE SCREW,Drive, #6 x 1/4"

6x1/4

2шт.

43

516-23158

CLAMP,J, 11/16" Insul, 3/8" Bolt

1/2 x 5/8

2шт.

44

B17501

LOCTITE

6 ml

1шт.

45

A50011

SLEEVE

2шт.

46

716493R2

PLUG

8.6 mm dia

2шт.

47

222572A2

SUPPORT

1шт.

48

345-173

LOCTITE

1шт.

49

320086A1

SUPPORT

See Page(s) 6-47

1шт.

50

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Powershift, Includes 51

1шт.

51

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.
