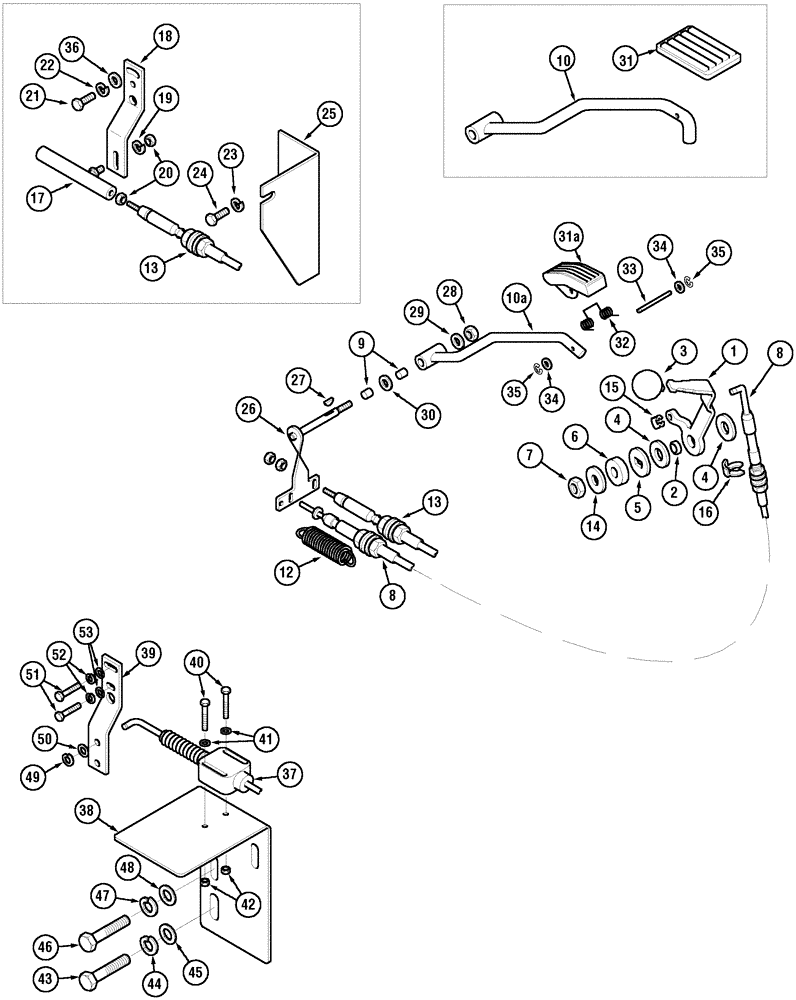

Запчасти Case IH MX150 (03-07) - THROTTLE CONTROL (10) - ENGINE

1

238114A4

CONTROL LEVER

1шт.

2

T101396

RING

1шт.

3

1958759C1

KNOB

1шт.

4

1531493C1

FRICTION WASHER

2шт.

5

T101397

WASHER

1шт.

6

T101407

WASHER

1шт.

7

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

8

239750A3

CABLE ASSY.,1285.2mm L

1шт.

9

1533534C1

PLASTIC RING

If So Equipped

2шт.

251393A2

PEDAL ASSY.

336 mm, Inc. 10, 31 - 35

1шт.

No Longer Available, Order Components

1шт.

301878A1

PEDAL ASSY.

300 mm, Inc. 10A, 31A - 35

1шт.

10

251392A2

ROD ASSY.

1шт.

10a

298634A1

STEM

Use With 301878A1

1шт.

12

248913A2

SPRING

1шт.

12a

3234916R1

SPRING

Use With 301878A1

1шт.

13

193749A3

CABLE ASSY.

, Serial Range: -JJE0982736

1шт.

14

T101398

WASHER,8.5mm ID x 40mm OD x 3mm Thk

1шт.

15

800-436

CIRCLIP,M6

1шт.

16

800-4313

CIRCLIP,M13

1шт.

17

248342A1

BALL JOINT

, Serial Range: -JJE0982736

1шт.

18

249821A4

CONTROL LEVER

, Serial Range: -JJE0982736

1шт.

19

892-11006

LOCK WASHER,M6

, Serial Range: -JJE0982736

1шт.

20

829-1406

NUT,Hex, M6 x 1, Cl 10.9

, Serial Range: -JJE0982736

2шт.

21

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

, Serial Range: -JJE0982736

2шт.

22

892-11006

LOCK WASHER,M6

, Serial Range: -JJE0982736

2шт.

23

892-11012

LOCK WASHER,M12

, Serial Range: -JJE0982736

2шт.

24

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

, Serial Range: -JJE0982736

2шт.

25

249482A3

SUPPORT ASSY.

, Serial Range: -JJE0982736

1шт.

26

276470A3

PIVOT ASSY.

1шт.

27

836-4065

WOODRUFF KEY,M4 x 6.5 x 15.72

1шт.

28

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

29

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

1шт.

30

230347A1

SPACER

If So Equipped

1шт.

31

259171A1

SKID/SHOE

Use With 251393A2

1шт.

31a

298842A1

SKID/SHOE

Use With 301878A1

1шт.

32

256776A1

SPRING

1шт.

33

255291A1

PIN,5mm OD x 56mm L

1шт.

34

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

35

800-435

CIRCLIP,M5

2шт.

36

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

2шт.

37

358186A1

CABLE ASSY.

2022 mm, Start Serial: JJE0982736

1шт.

38

359414A1

SUPPORT ASSY.

, Start Serial: JJE0982736

1шт.

39

375492A1

CONTROL LEVER

, Start Serial: JJE0982736

1шт.

40

814-6035

BOLT,Hex, M6 x 1 x 35mm, Cl 8.8

, Start Serial: JJE0982736

2шт.

41

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

, Start Serial: JJE0982736

2шт.

42

829-1406

NUT,Hex, M6 x 1, Cl 10.9

, Start Serial: JJE0982736

2шт.

43

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

, Start Serial: JJE0982736

1шт.

44

892-11012

LOCK WASHER,M12

, Start Serial: JJE0982736

1шт.

45

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

, Start Serial: JJE0982736

1шт.

46

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

, Start Serial: JJE0982736

2шт.

47

892-11008

LOCK WASHER,8mm ID

, Start Serial: JJE0982736

2шт.

48

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

, Start Serial: JJE0982736

2шт.

49

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

, Start Serial: JJE0982736

1шт.

50

3221347R2

CIRCLIP

, Start Serial: JJE0982736

1шт.

51

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

, Start Serial: JJE0982736

2шт.

52

892-11006

LOCK WASHER,M6

, Start Serial: JJE0982736

2шт.

53

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

, Start Serial: JJE0982736

2шт.

411384A1

SET OF PARTS

KIT, Throttle Cable, Inc. REF 37 - 50, 52

1шт.

For Installation of New Style Throttle Cable on Tractors BSN JJE0982736

1шт.
