Запчасти Case IH MX150 (02-26) - PISTONS AND CONNECTING RODS (10) - ENGINE

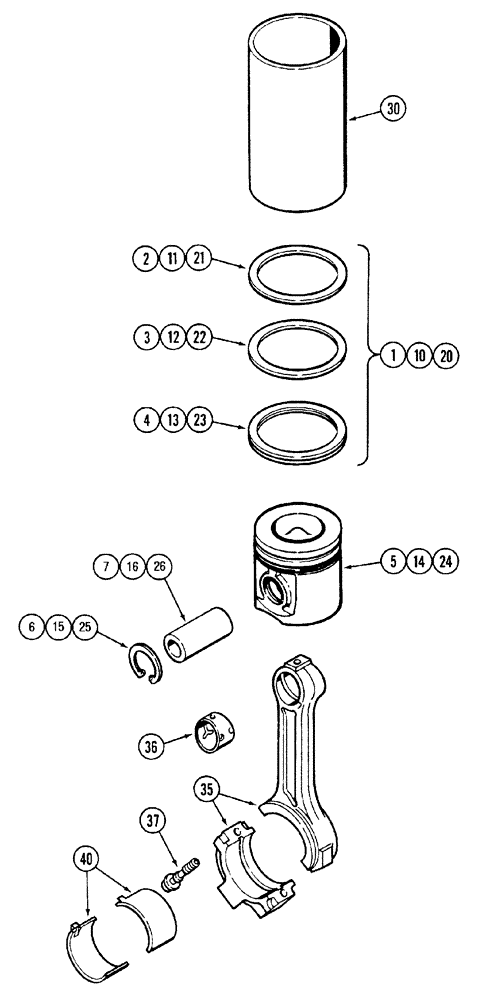

Схема запчастей Case IH MX150 - (02-26) - PISTONS AND CONNECTING RODS (10) - ENGINE
35
37
4
36
2
24
13
23
11
15
30
3
40
10
20
25
14
16
1
22
5
21
7
26
6
12

Артикул

Название

Примечание

Количество

J802747

PISTON & RINGS KIT,100MM PISTON DIAMETER

Standard, Consists Of 1 - 6

6шт.

1

J802746

PISTON RING SET

Standard, Consists Of 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

Ring, Top

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Middle

1шт.

4

NSS

NOT SOLD SEPARAT

Ring, Bottom

1шт.

5

NSS

NOT SOLD SEPARAT

Piston

1шт.

6

J901706

RING

2шт.

7

J919053

PISTON PIN

6шт.

J802764

PISTON & RINGS KIT

0,5 mm, Oversize 0.5 mm, Consists Of 10 - 15

6шт.

10

J802422

PISTON RING SET

0,5 mm, Oversize 0.5 mm, Consists Of 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

Ring, Top

1шт.

12

NSS

NOT SOLD SEPARAT

Ring, Middle

1шт.

13

NSS

NOT SOLD SEPARAT

Ring, Bottom

1шт.

14

NSS

NOT SOLD SEPARAT

Piston

1шт.

15

J901706

RING

2шт.

16

J919053

PISTON PIN

12шт.

J802765

PISTON & RINGS KIT

1,0 mm, Consists Of 20 - 25

6шт.

20

J802423

PISTON RING SET

1,0 mm, Oversize 1.0 mm, Consists Of 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

Ring, Top

1шт.

22

NSS

NOT SOLD SEPARAT

Ring, Middle

1шт.

23

NSS

NOT SOLD SEPARAT

Ring, Bottom

1шт.

24

NSS

NOT SOLD SEPARAT

Piston

1шт.

25

J901706

RING

2шт.

26

J919053

PISTON PIN

6шт.

30

J904166

SLEEVE

1шт.

J942581

ROD, CONNECTING

Consists Of 35,36,37

6шт.

JR942581

REMAN-CONNECTING ROD

Remanufactured, Connecting Rod

6шт.

JC901569

CORE-ROD CONNECTING

Core-Connecting Rod Return Number, Connecting Rod

6шт.

84145405R

REMAN-CONNECTING ROD

MX150, MX170, Both (1/98-), Reman For New PN J942581

6шт.

84145405C

CORE-ROD CONNECTING

Return Number

6шт.

35

NSS

NOT SOLD SEPARAT

Rod Assy

1шт.

36

J941476

BUSHING

1шт.

37

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

M11 x 59

2шт.

40

A77465

BEARING SET

Upper And Lower

6шт.

40

A77466

BEARING SET

Upper And Lower, Undersize 0.25 mm

6шт.

40

A77467

BEARING LINER

Upper And Lower, Undersize 0.5 mm

6шт.

40

A77468

BEARING SET

Upper And Lower, Undersize 0.75 mm

6шт.

40

A77469

BEARING SET

Upper And Lower, Undersize 1.0 mm

6шт.

Выбрано товаров: 38
