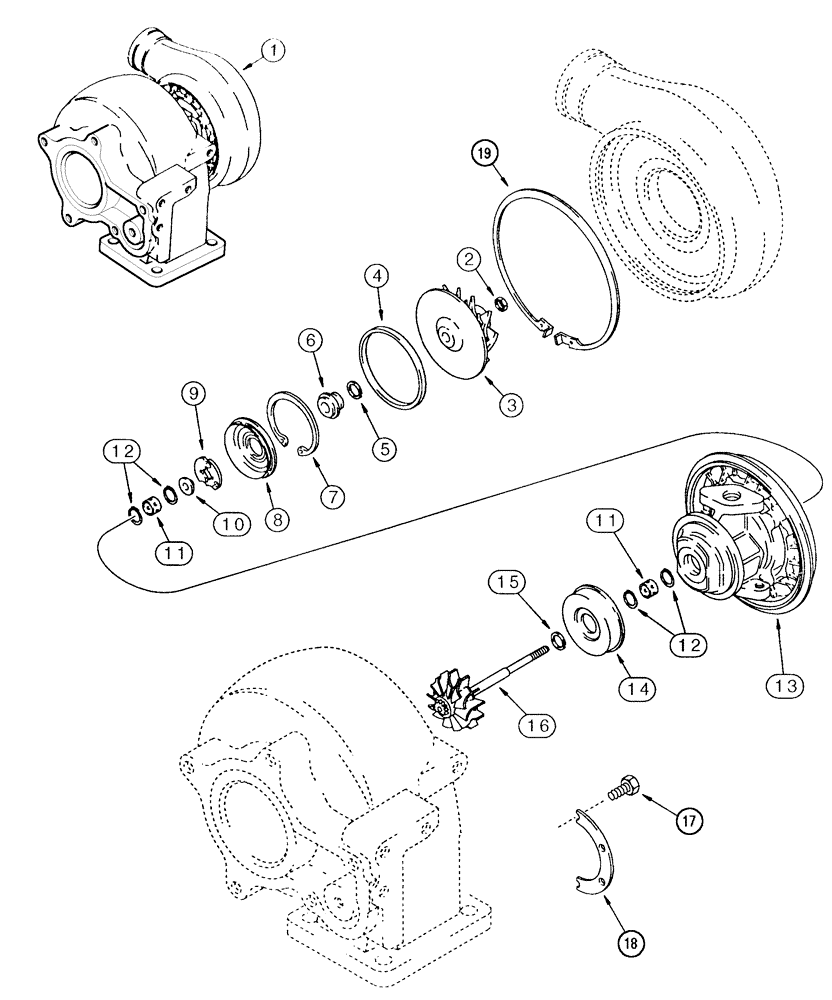

Запчасти Case IH MX150 (02-17) - TURBOCHARGER (10) - ENGINE

1

J802770

TURBOCHARGER

Includes 2 - 19

1шт.

1

JR802770

REMAN-TURBOCHARGER

MX150, MX170

1шт.

1

JC537132

CORE-TURBOCHARGER

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

Nut, Lock

1шт.

3

NSS

NOT SOLD SEPARAT

Impeller

1шт.

4

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

5

NSS

NOT SOLD SEPARAT

Ring, Seal

1шт.

6

NSS

NOT SOLD SEPARAT

Slinger

1шт.

7

NSS

NOT SOLD SEPARAT

Ring, Retaining

1шт.

8

NSS

NOT SOLD SEPARAT

Baffle

1шт.

9

NSS

NOT SOLD SEPARAT

Bearing, Thrust

1шт.

10

NSS

NOT SOLD SEPARAT

Collar

1шт.

11

NSS

NOT SOLD SEPARAT

Bearing, Roller

2шт.

12

NSS

NOT SOLD SEPARAT

Ring, Retaining

4шт.

13

NSS

NOT SOLD SEPARAT

Housing

1шт.

14

NSS

NOT SOLD SEPARAT

Shield

1шт.

15

NSS

NOT SOLD SEPARAT

Ring, Seal

1шт.

16

NSS

NOT SOLD SEPARAT

Rotor Assy

1шт.

17

J759917

SET SCREW

6шт.

18

J501188

PLATE

2шт.

19

J533163

SNAP RING

1шт.

J575169

REPAIR KIT

Turbocharger, Repair Kit, Consists Of 2,4,5,7 - 9,11,12,15,17

1шт.
