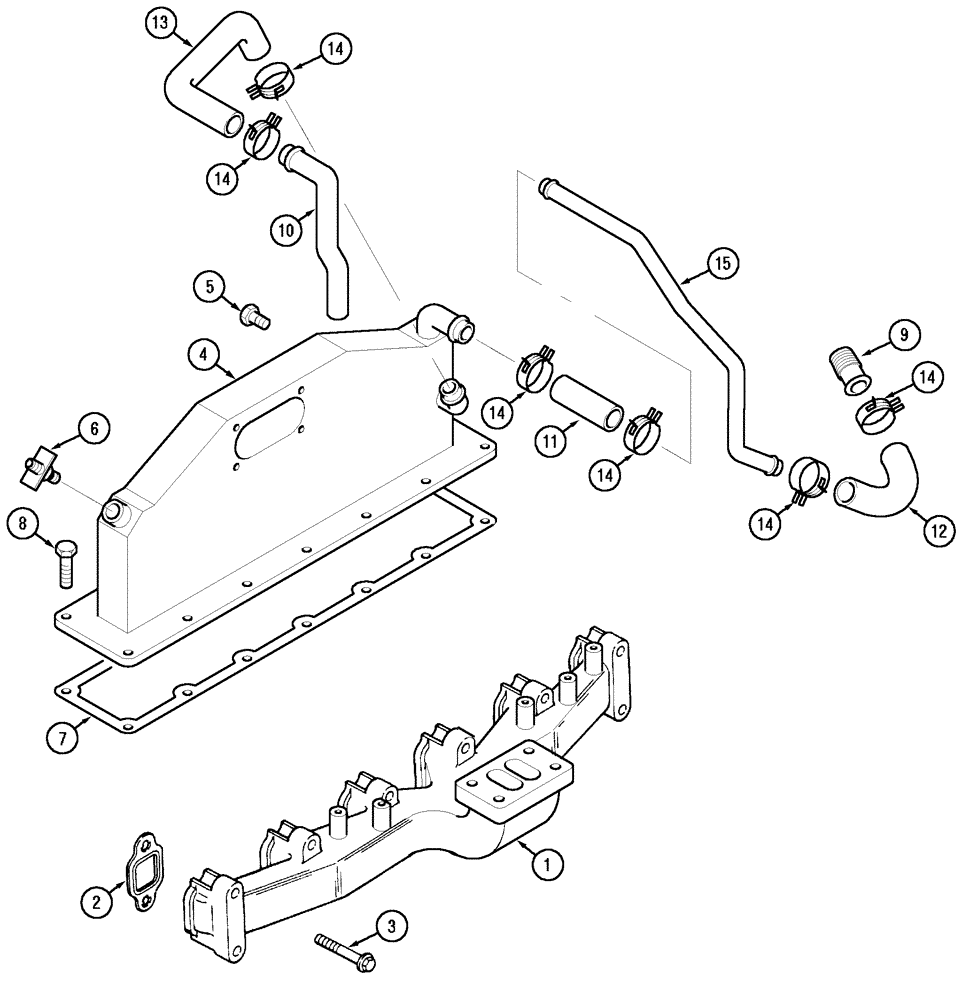

Запчасти Case IH MX150 (02-15) - MANIFOLDS (10) - ENGINE

1

J931745

MANIFOLD

Exhaust

1шт.

2

J927154

GASKET,0.38mm Thk

6шт.

3

J901448

FLANGE BOLT,Hex, M10 x 65mm

12шт.

A77418

KIT

Consists Of 4 - 6

1шт.

4

J919806

AFTERCOOLER

Intake

1шт.

5

J906619

PLUG,1/8" - 27

1/8 PT

1шт.

6

J909394

COCK, DRAIN

1шт.

7

J931347

GASKET

1шт.

8

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

14шт.

9

J907167

SPLINED COUPLING

1шт.

10

J905639

TUBE,12.7 mm ID x 22.22 mm OD x 154.7 mm L

Drain

1шт.

11

J918611

HOSE,18.50 mm ID x 63.00 mm

1шт.

12

J918607

HOSE,43.20 mm

1шт.

13

J928492

TUBE

1шт.

14

J918163

CLIP

6шт.

15

J934170

TUBE,0.75" OD

Supply

1шт.
