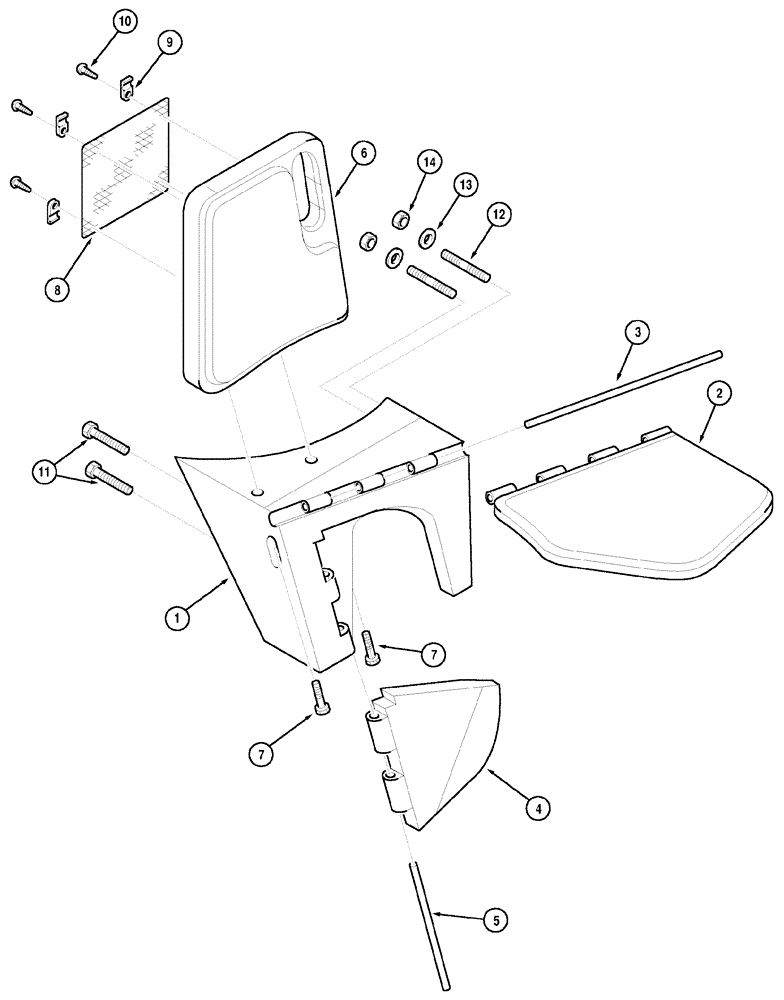

Запчасти Case IH MX150 (09-52) - SEAT CO-WORKER (90) - PLATFORM, CAB, BODYWORK AND DECALS

*

392505A1

SEAT ASSY.

Consists Of 1 - 10

1шт.

1

392815A1

SEAT CARRIER

1шт.

2

392818A1

INSTRUCTIONAL SEAT

1шт.

3

392813A1

ROD

Long

1шт.

4

392814A1

SIDE PLATE

1шт.

5

392811A1

ROD

Short

1шт.

6

392817A1

BACKREST

1шт.

7

863-8030

HEX SOC SCREW,M8 x 30mm, Cl 12.9

2шт.

8

395128A1

NET

Storage

1шт.

9

395129A1

CLAMP

4шт.

10

265-1438

SELF-TAP SCREW,Cross Oval Hd, #6 x 1/2"

4шт.

11

814-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 8.8

2шт.

12

392820A2

STUD

2шт.

14

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

13

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.
