Запчасти Case IH MX150 (09-50) - SWIVEL SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS

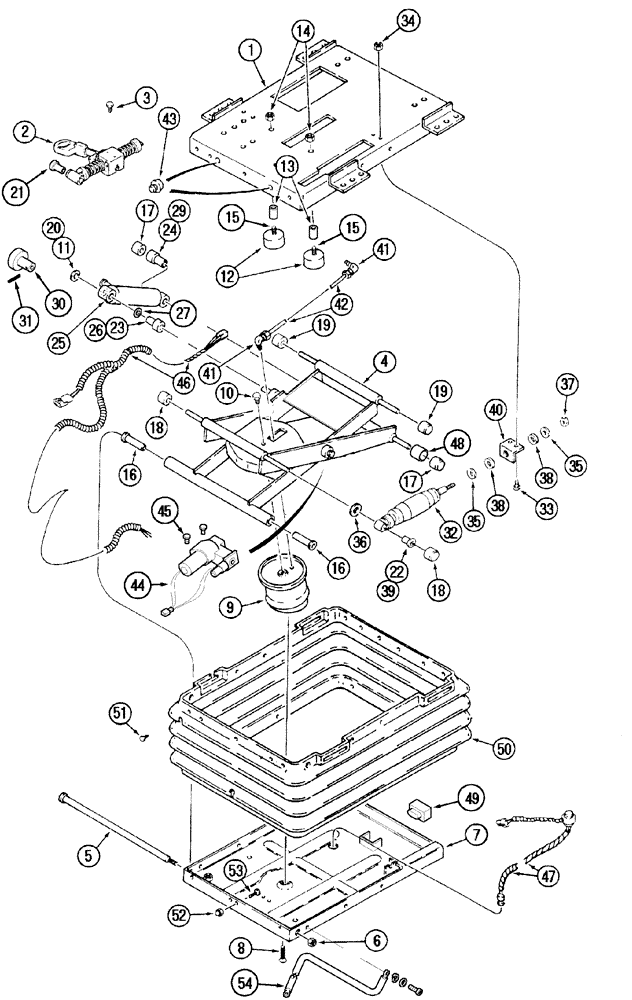

Схема запчастей Case IH MX150 - (09-50) - SWIVEL SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS
35
34
38
5
10
19
3
51
40
44
17
17
1
9
41
31
42
45
30
41
52
16
15
53
13
6
49
8
26
39
2
7
32
15
23
35
4
43
46
38
50
21
36
33
24
19
16
18
48
20
54
12
22
11
14
18
25
27
47
37
29

Артикул

Название

Примечание

Количество

Sears

1шт.

N.A. Only

1шт.

315900A3

SEAT

Seat And Suspension Assy, Consists Of 1 - 68, See Also Pages 9-127,137

1шт.

Air Suspension

1шт.

325466A2

SHOCK ABSORBER

Consists Of 1 - 64

1шт.

1

253589A1

HOUSING

Upper

1шт.

2

1990645C1

LATCH

Fore And Aft, Isolator

1шт.

3

276-24812

SELF-TAP SCREW,5/16" - 18 x 3/4"

2шт.

4

132862A1

DIPPER

1шт.

5

143786A1

SHAFT,308.9mm L

1шт.

6

231-4206

LOCK NUT,Hex, 3/8"-16, GB

2шт.

7

253590A1

HOUSING

Lower

1шт.

8

443-13812

SCREW,Cross Flat Hd, 3/8"-16 x 3/4"

3/8 x 1/2; GR 5

1шт.

9

NSS

NOT SOLD SEPARAT

Damper

1шт.

10

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

1шт.

11

131-425

PUSH-ON NUT,Push, 1/2"

1шт.

180593A1

KIT

Bumper, Consists Of 12 - 15

1шт.

12

NSS

NOT SOLD SEPARAT

Bumper

2шт.

13

NSS

NOT SOLD SEPARAT

Spacer

2шт.

14

231-1444

NUT,1/4"-20, GB

2шт.

15

340-12520

SCREW,Cross Pan Hd, 1/4"-20 x 1 1/4"

2шт.

180594A3

KIT

Bearings And Rollers, Consists Of 16 - 24,36

1шт.

16

NSS

NOT SOLD SEPARAT

Bushing

2шт.

17

NSS

NOT SOLD SEPARAT

Roller

2шт.

18

NSS

NOT SOLD SEPARAT

Roller, Narrow

2шт.

19

NSS

NOT SOLD SEPARAT

Roller, Wide

2шт.

20

131-425

PUSH-ON NUT,Push, 1/2"

1шт.

21

NSS

NOT SOLD SEPARAT

Bearing, Pivot, Isolator

1шт.

22

NSS

NOT SOLD SEPARAT

Bearing, Roller, Shock Absorber

1шт.

23

NSS

NOT SOLD SEPARAT

Bearing, Roller, Upper

1шт.

24

NSS

NOT SOLD SEPARAT

Bearing, Roller, Lower

1шт.

325493A1

PACKAGE

Shock Absorber, Includes 11,25,26,27

1шт.

25

NSS

NOT SOLD SEPARAT

Shock Absorber

1шт.

26

NSS

NOT SOLD SEPARAT

Sleeve, Upper

1шт.

27

A45519

WASHER

1шт.

29

NSS

NOT SOLD SEPARAT

Bearing, Roller, Lower

1шт.

30

NSS

NOT SOLD SEPARAT

Knob, Damper

1шт.

31

138-317

LOCK PIN,1/8" x 5/8", Slotted

1шт.

227546A1

KIT

Shock Absorber, Fore And Aft, Consists Of 32 - 39

1шт.

32

NSS

NOT SOLD SEPARAT

Shock Absorber

1шт.

33

434-48

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5

2шт.

34

231-1444

NUT,1/4"-20, GB

2шт.

35

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

2шт.

36

NSS

NOT SOLD SEPARAT

Spacer

1шт.

37

230-4715

LOCK NUT,5/16"-24, GA

1шт.

38

A49679

BUSHING

2шт.

39

NSS

NOT SOLD SEPARAT

Bushing

1шт.

40

1981845C1

ANGLE

1шт.

41

NSS

NOT SOLD SEPARAT

Elbow

2шт.

42

NSS

NOT SOLD SEPARAT

Tube

1шт.

43

133422A1

BUMPER

2шт.

44

132864A1

KIT

Model 215, Compressor, If So Equipped

1шт.

44

358902A1

PACKAGE,SERVICE

Model 115, Compressor, De-Luxe

1шт.

44

358903A1

COMPRESSOR

Model 115, Compressor, Standard

1шт.

45

NSS

NOT SOLD SEPARAT

No. 10 x 1,25, Screw

2шт.

46

325487A1

HARNESS

Seat

1шт.

47

1345209C1

HARNESS

1шт.

48

NSS

NOT SOLD SEPARAT

Bearing, Pivot

1шт.

49

291279A1

BUMPER

Not Used

1шт.

1990647C2

KIT

Bellows, Consists Of 65 - 68

1шт.

50

NSS

NOT SOLD SEPARAT

Shroud

1шт.

132872A1

KIT

Pins, Consists of 65 - 67

1шт.

51

NSS

NOT SOLD SEPARAT

Fastener

20шт.

52

NSS

NOT SOLD SEPARAT

Nut

3шт.

53

NSS

NOT SOLD SEPARAT

Clip

3шт.

54

291280A1

KIT

Ground Strap

1шт.

Выбрано товаров: 66
