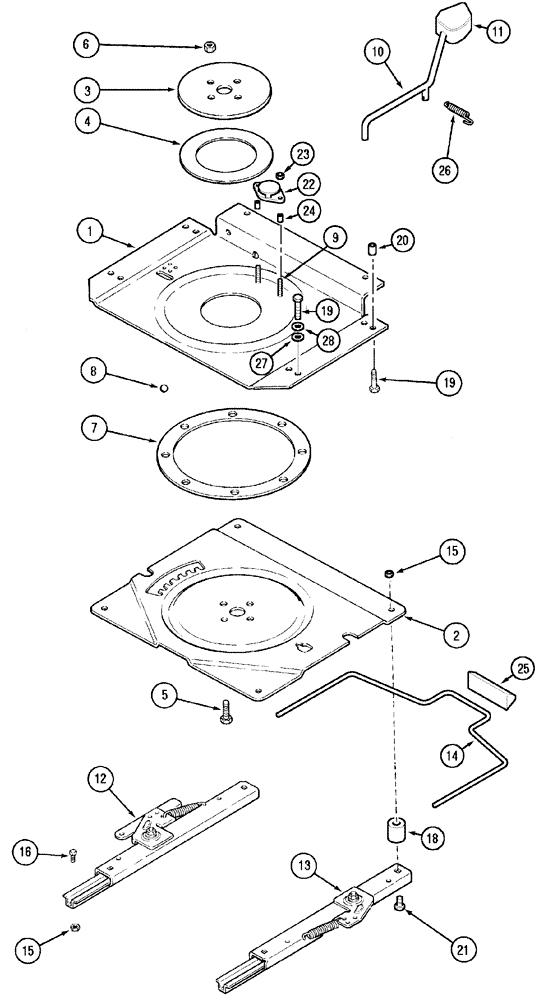

Запчасти Case IH MX150 (09-49) - SWIVEL SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS

Sears

1шт.

N.A. Only

1шт.

315900A3

SEAT

Seat And Suspension Assy, Consists Of 1 - 26, See Also Pages 9-127,143

1шт.

Swivel And Slide

1шт.

325477A1

PLATE ASSY.

Consists Of 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

Plate, Upper

1шт.

2

NSS

NOT SOLD SEPARAT

Plate, Lower

1шт.

3

NSS

NOT SOLD SEPARAT

Plate, Retainer

1шт.

4

1343860C1

PLATE

PLATE, LARGE , Bearing

1шт.

5

NSS

NOT SOLD SEPARAT

Bolt

4шт.

6

231-4206

LOCK NUT,Hex, 3/8"-16, GB

4шт.

7

NSS

NOT SOLD SEPARAT

Retainer

1шт.

8

211-1016

BALL,12.7mm OD, Gr 24

Gr.24, CRS

8шт.

9

NSS

NOT SOLD SEPARAT

Bolt

2шт.

10

397377A1

LEVER ASSY.

Includes 11

1шт.

11

NSS

NOT SOLD SEPARAT

Knob

1шт.

132875A1

SLIDE

Slide, Includes 12,13,15,16

1шт.

12

NSS

NOT SOLD SEPARAT

Slide, Left

1шт.

13

NSS

NOT SOLD SEPARAT

Slide, Right

1шт.

14

325485A1

LEVER

1шт.

15

230-4215

NUT,5/16"-18, GA

8шт.

16

117-109

SQUARE BOLT,5/18" - 16 x 3/4", Gr 5

4шт.

18

NSS

NOT SOLD SEPARAT

11/32 x 11/16 x 1/16, Spacer

4шт.

19

NSS

NOT SOLD SEPARAT

5/16 x 2, Bolt

4шт.

20

187006A1

CUP

16 mm

2шт.

21

NSS

NOT SOLD SEPARAT

5/16 x 5/8, Bolt

4шт.

22

242306A2

SWITCH

Operator Presence Safety Switch

1шт.

23

230-4215

NUT,5/16"-18, GA

2шт.

24

NSS

NOT SOLD SEPARAT

Spacer

2шт.

25

180587A1

HANDLE

Fore And Aft

1шт.

26

135514A1

SPRING

Right

1шт.

26

135513A1

SPRING

Left

1шт.

27

1974732C1

WASHER

4шт.

28

700711545

CUP WASHER

10 mm

2шт.

291280A1

KIT

Ground Strap

1шт.
