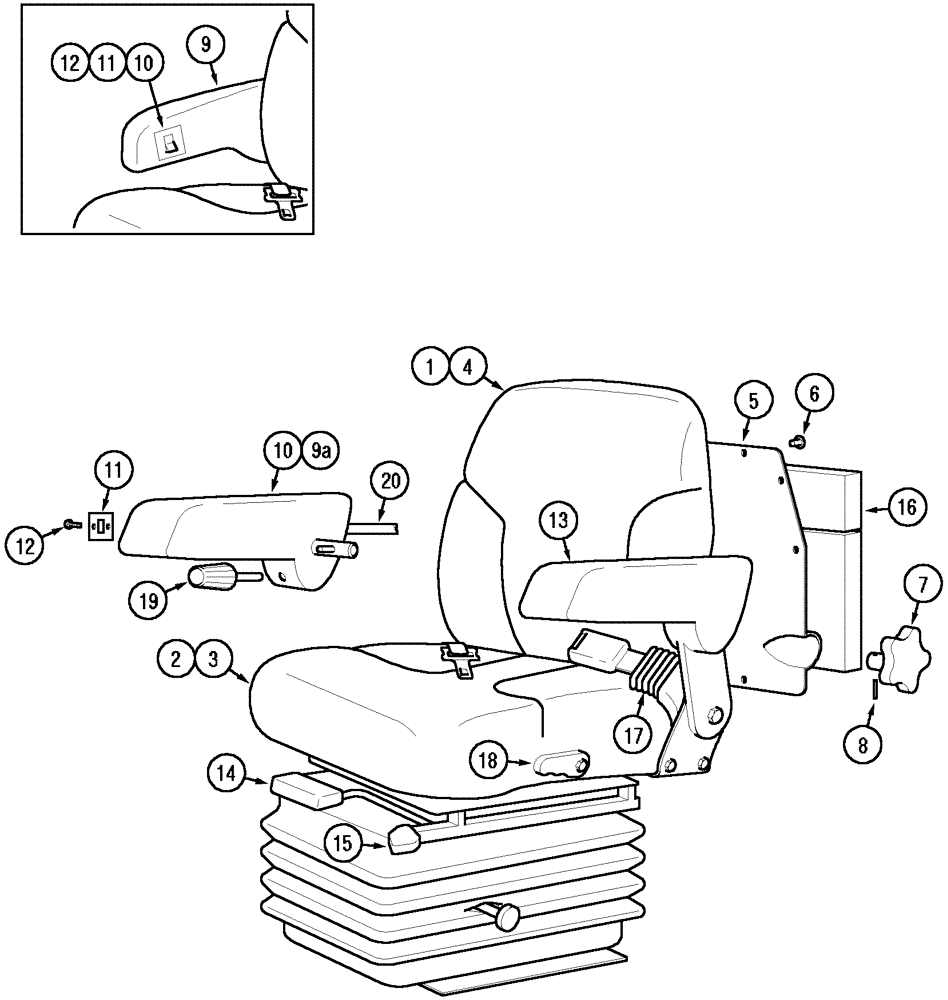

Запчасти Case IH MX150 (09-46) - SWIVEL SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS

Sears

1шт.

315900A3

SEAT

Seat And Suspension Assy, Consists Of 1 - 17, See Page(s) 9-139,143

1шт.

358134A1

SEAT

Top, Consists Of 1 - 8,9A,13,16,17,19,20

1шт.

1

325474A1

BACKREST

Cushion, Backrest

1шт.

2

325483A1

CUSHION, SEAT

Cushion, Seat

1шт.

3

325481A1

FOAM

Seat Cushion

1шт.

4

325479A1

FOAM

Backrest Cushion

1шт.

325486A1

BACKREST COVER

Backrest Cover, Consists Of 5,6

1шт.

5

NSS

NOT SOLD SEPARAT

Cover

1шт.

6

1999693C1

KIT

10шт.

300665A1

KIT

Consists Of 7,8

1шт.

7

NSS

NOT SOLD SEPARAT

Knob, Lumbar

1шт.

8

138-317

LOCK PIN,1/8" x 5/8", Slotted

1шт.

9

325484A1

ARMREST

Right, Includes 10 - 12

1шт.

9b

358133A1

ARMREST

Right, Includes 19,20

1шт.

10

NSS

NOT SOLD SEPARAT

Arm

1шт.

11

NSS

NOT SOLD SEPARAT

Plate

1шт.

12

NSS

NOT SOLD SEPARAT

Screw

2шт.

13

143214A1

ARMREST

Left

1шт.

14

REF

INSTRUCTION

Lever, Fore And Aft, See Page(s) 9-139

1шт.

15

REF

INSTRUCTION

Lever, Swivel, See Page(s) 9-139

1шт.

16

253599A1

TERMINAL BOX

1шт.

17

333657A2

KIT

SAFETY BELT

1шт.

18

NSS

NOT SOLD SEPARAT

Lever, Backrest, Tilt

1шт.

19

132868A1

SET OF PARTS

Height Adjustment

1шт.

20

325487A1

HARNESS

Seat, See Page(s) 9-147

1шт.

21

353-62

PLUG,Cap, .302" OD

Not Illustrated

4шт.
