Запчасти Case IH MX150 (09-45) - AIR SUSPENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS

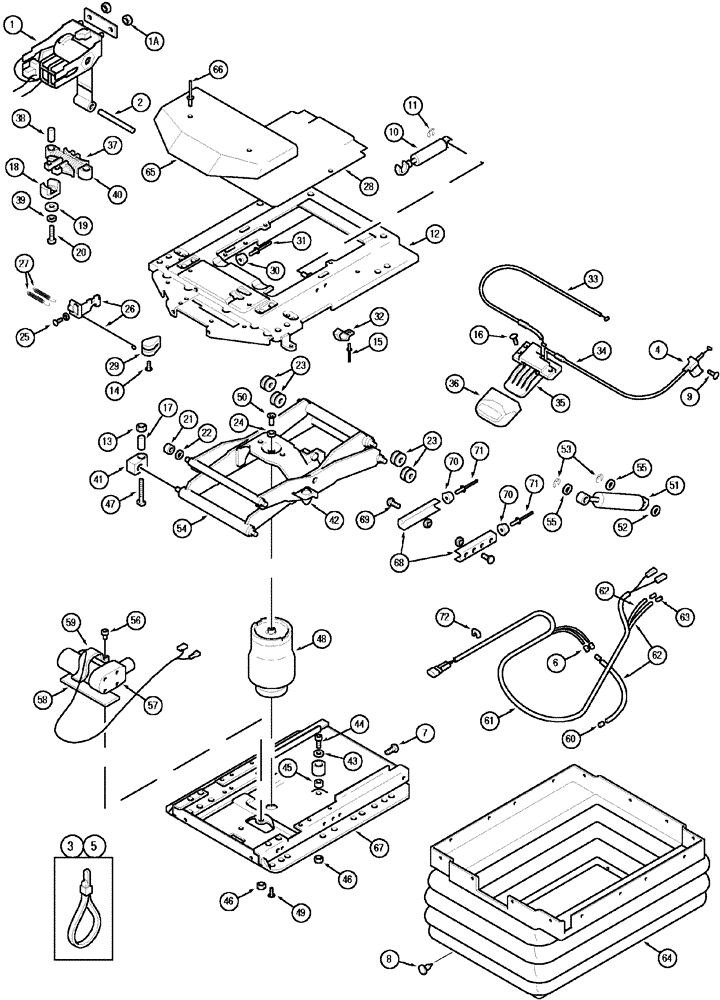

Схема запчастей Case IH MX150 - (09-45) - AIR SUSPENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
25
61
3
29
62
71
10
52
23
16
38
35
57
60
50
1
59
12
8
37
72
14
22
41
24
68
9
21
55
63
32
20
33
65
26
7
17
28
53
30
43
40
70
51
58
11
34
64
36
18
56
42
6
31
2
46
45
48
70
23
49
67
66
46
13
69
27
55
19
54
44
15
5
71
62
39
47

Артикул

Название

Примечание

Количество

Grammer, De-Luxe - Maximo

1шт.

Europe Only

1шт.

254762A1

SUSPENSION

Consists Of 1 - 72

1шт.

402386A1

LEVER ASSY.

Height Control, Consists Of 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

Controller

1шт.

1b

60-4845T1

NUT

M8

2шт.

1c

3225292R1

PLUG

2шт.

2

NSS

NOT SOLD SEPARAT

Bolt

1шт.

3

NSS

NOT SOLD SEPARAT

Strap

1шт.

4

NSS

NOT SOLD SEPARAT

Housing

1шт.

5

NSS

NOT SOLD SEPARAT

Strap

1шт.

6

NSS

NOT SOLD SEPARAT

Fitting

2шт.

7

NSS

NOT SOLD SEPARAT

Screw

1шт.

8

3225292R1

PLUG

1шт.

9

NSS

NOT SOLD SEPARAT

Screw

1шт.

254764A1

SHOCK ABSORBER

Shock Absorber, Consists Of 8,10,11

1шт.

10

NSS

NOT SOLD SEPARAT

Shock Absorber

1шт.

254765A1

PLATE ASSY.

Housing, Consists Of 8,11 - 29

1шт.

11

NSS

NOT SOLD SEPARAT

Ring, Retaining

1шт.

12

NSS

NOT SOLD SEPARAT

Housing, Upper

1шт.

13

60-4845T1

NUT

M8

2шт.

14

NSS

NOT SOLD SEPARAT

Screw

1шт.

15

NSS

NOT SOLD SEPARAT

Rivet

2шт.

16

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

3шт.

17

NSS

NOT SOLD SEPARAT

Tube

2шт.

18

NSS

NOT SOLD SEPARAT

Bumper

1шт.

19

NSS

NOT SOLD SEPARAT

Washer

2шт.

20

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

21

60-4879T1

NEEDLE BEARING

2шт.

22

NSS

NOT SOLD SEPARAT

Ring

2шт.

23

NSS

NOT SOLD SEPARAT

Roller

4шт.

24

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

25

NSS

NOT SOLD SEPARAT

Screw

1шт.

26

NSS

NOT SOLD SEPARAT

Lever

1шт.

27

NSS

NOT SOLD SEPARAT

Spring

2шт.

254766A1

COVER

Cover, Includes 8,28

1шт.

28

NSS

NOT SOLD SEPARAT

Cover

1шт.

254767A1

HANDLE GRIP

Handle, Includes 14,29

1шт.

29

NSS

NOT SOLD SEPARAT

Handle

1шт.

254768A1

SERVICE KIT

Rubber, Includes 30,31

1шт.

30

NSS

NOT SOLD SEPARAT

Bumper

1шт.

31

3223480R1

RIVET

Europe Only

1шт.

254769A1

SERVICE KIT

Stop, Includes 8,15,32

1шт.

32

NSS

NOT SOLD SEPARAT

Stop

1шт.

254770A1

CABLE

Cable, Includes 8,16,33

1шт.

33

NSS

NOT SOLD SEPARAT

Cable

1шт.

254771A1

CABLE

Cable, Includes 4,8,16,34

1шт.

34

NSS

NOT SOLD SEPARAT

Cable

1шт.

254773A1

SET OF PARTS

Height Control, Includes 8,9,16,35,36

1шт.

35

NSS

NOT SOLD SEPARAT

Controller, Height Adjustment

1шт.

36

254774A1

GRIP

1шт.

254775A1

ISOLATOR

Isolator, Includes 8,15,18 - 22,30,31,37 - 40

1шт.

37

NSS

NOT SOLD SEPARAT

Isolator

1шт.

38

NSS

NOT SOLD SEPARAT

Tube

2шт.

39

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

40

NSS

NOT SOLD SEPARAT

Bushing

2шт.

254776A1

REPAIR KIT

Service, Includes 8,17,18,21 - 23,30,31,41 - 46

1шт.

41

NSS

NOT SOLD SEPARAT

Bearing, Roller

2шт.

42

3134835R1

BUMPER

2шт.

43

3402565R1

WASHER

1шт.

44

NSS

NOT SOLD SEPARAT

Bolt

1шт.

45

NSS

NOT SOLD SEPARAT

Spacer

1шт.

46

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

47

NSS

NOT SOLD SEPARAT

Screw

2шт.

254777A1

SPRING

Spring, Includes 8,24,48,49,50

1шт.

48

NSS

NOT SOLD SEPARAT

Spring Assy

1шт.

49

NSS

NOT SOLD SEPARAT

Screw

2шт.

50

NSS

NOT SOLD SEPARAT

Fitting

4шт.

254778A1

SHOCK ABSORBER

Shock Absorber, Includes 51 - 53

1шт.

51

NSS

NOT SOLD SEPARAT

Shock Absorber

1шт.

52

3402553R1

WASHER,M13

Europe Only

3шт.

53

NSS

NOT SOLD SEPARAT

Ring, Retaining

2шт.

254779A1

DIPPER

Swing Arm, Includes 1A,3,5,7,8,15,18 - 21,23,30,38,39,41,47,49,52,54 - 56

1шт.

54

NSS

NOT SOLD SEPARAT

Arm

1шт.

55

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

56

864-8012

HEX SOC SCREW,M8 x 12mm, Cl 8.8

1шт.

254780A1

AIR COMPRESSOR

Compressor, Includes 3,5,8,56 - 60

1шт.

57

NSS

NOT SOLD SEPARAT

Compressor

1шт.

58

NSS

NOT SOLD SEPARAT

Plate

1шт.

59

NSS

NOT SOLD SEPARAT

Bracket

1шт.

60

60-4895T1

CLAMP

2шт.

254781A1

CONNECTOR, ELEC

CONNECTOR , Cable, Includes 3,5,8,61

1шт.

61

NSS

NOT SOLD SEPARAT

Cable

1шт.

254782A1

KIT

Hose Assy, Includes 3,5,8,60,62,63

1шт.

62

NSS

NOT SOLD SEPARAT

Hose

1шт.

63

NSS

NOT SOLD SEPARAT

Fitting

2шт.

254783A1

BELLOWS

Bellows, Includes 8,64

1шт.

64

NSS

NOT SOLD SEPARAT

Shroud

1шт.

254784A1

COVER ASSY

Cover, Includes 65,66

1шт.

65

NSS

NOT SOLD SEPARAT

Cover

1шт.

66

NSS

NOT SOLD SEPARAT

Rivet

2шт.

254785A1

SUSPENSION

Suspension, Lower, Includes 1A,3,5,7,8,23,38,41,46,4749,56,67 - 70

1шт.

67

NSS

NOT SOLD SEPARAT

Housing, Lower

1шт.

254786A1

STOP

Stop, Includes 68 - 71

1шт.

68

NSS

NOT SOLD SEPARAT

Stop Assy

2шт.

69

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

70

3223486R1

BUMPER

2шт.

71

NSS

NOT SOLD SEPARAT

Rivet

2шт.

72

254787A1

MOUNTING CLIP

1шт.

Выбрано товаров: 99
