Запчасти Case IH MX150 (09-44) - MECHANICAL SUSPENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS

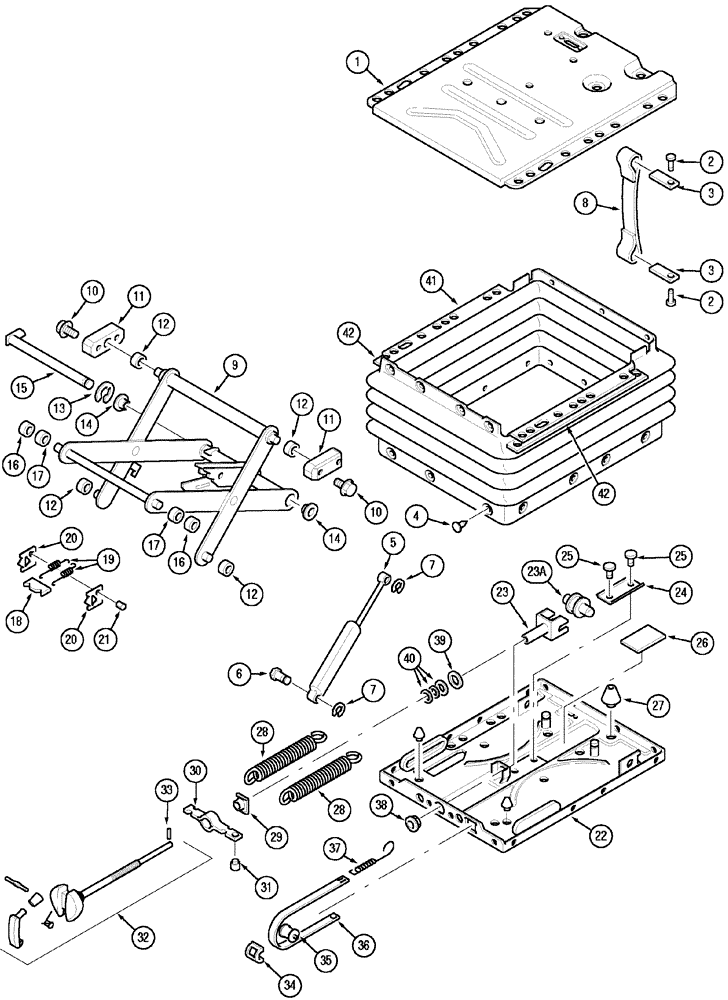

Схема запчастей Case IH MX150 - (09-44) - MECHANICAL SUSPENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS
32
42
18
15
22
42
8
3
7
31
40
23
17
10
27
12
24
19
25
6
38
41
39
26
33
34
12
35
17
13
14
3
16
37
29
20
28
20
4
25
28
2
7
1
9
14
21
12
5
11
36
12
16
10
30
2
11

Артикул

Название

Примечание

Количество

Grammer

1шт.

254682A1

SUSPENSION

Consists Of 1 - 49, For Seat

1шт.

254683A1

SUSPENSION

Suspension, Upper, Consists Of 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

Plate, Upper

1шт.

254685A1

SKIRT COVER

Belt, Consists Of 2 - 4,8

1шт.

2

NSS

NOT SOLD SEPARAT

Rivet

2шт.

3

NSS

NOT SOLD SEPARAT

Plate

2шт.

4

3225292R1

PLUG

1шт.

254684A1

SHOCK ABSORBER

Shock Absorber, Consists Of 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

Shock Absorber

1шт.

6

60-3233T1

PIN

1шт.

7

800-496

CIRCLIP,M6

2шт.

8

60-1632T1

PLATE

2шт.

254687A1

SUSPENSION

Arm, Consists Of 4,9 - 21

1шт.

9

NSS

NOT SOLD SEPARAT

Arm

1шт.

254689A1

BEARING ASSY

Bearings And Rollers, Consists Of 4,10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

Screw

2шт.

11

NSS

NOT SOLD SEPARAT

Bearing, Roller

2шт.

12

NSS

NOT SOLD SEPARAT

Bushing

2шт.

13

40-1155

CIRCLIP,M10

1шт.

14

60-5623T1

FLANGED BEARING

2шт.

15

NSS

NOT SOLD SEPARAT

Bolt

1шт.

16

3225310R1

ROLLER

4шт.

17

NSS

NOT SOLD SEPARAT

Bushing

2шт.

18

3225306R1

RETAINER

1шт.

19

NSS

NOT SOLD SEPARAT

Spring, Tension

2шт.

20

3225303R1

RATCHET

2шт.

21

3225320R1

PIN

1шт.

254690A1

SUPPORT ASSY.

Suspension, Lower, Consists Of 4,22 - 38

1шт.

22

NSS

NOT SOLD SEPARAT

Housing, Lower

1шт.

NSS

NOT SOLD SEPARAT

Fork Assy, Consists Of 23,23A

1шт.

23

3402918R1

FORK

1шт.

23b

3225301R1

NEEDLE BEARING

1шт.

K262122

PLATE

Support, Consists Of 24,25

1шт.

24

NSS

NOT SOLD SEPARAT

Plate

1шт.

25

3225327R1

RIVET

2шт.

26

3225314R1

PLATE

1шт.

27

NSS

NOT SOLD SEPARAT

Bumper

1шт.

28

3225330R1

SPRING

2шт.

29

3225317R1

NUT,Weld, M12

M12

1шт.

30

3225296R1

HOLDER

1шт.

31

3225315R1

BUTTON

1шт.

254691A1

SET OF PARTS

Weight Adjustment, Consists Of 32,33

1шт.

32

NSS

NOT SOLD SEPARAT

Screw Assy

1шт.

33

30788R1

LOCK PIN,M3 x 16, Slotted

1шт.

34

3225282R1

GUIDE

1шт.

35

3225299R1

ROLLER

1шт.

36

K262118

DECAL

1шт.

37

3225332R1

SPRING

1шт.

38

K262120

BUSHING

1шт.

39

60-1679T1

WASHER

1шт.

40

254692A1

WASHER, THRUST

Thrust Washer

1шт.

254693A1

BELLOWS

Bellows, Consists Of 4,41,42

1шт.

41

NSS

NOT SOLD SEPARAT

Shroud

1шт.

42

60-1632T1

PLATE

2шт.

Выбрано товаров: 55
