Запчасти Case IH MX150 (09-43) - SWIVEL SEAT - CLOTH (90) - PLATFORM, CAB, BODYWORK AND DECALS

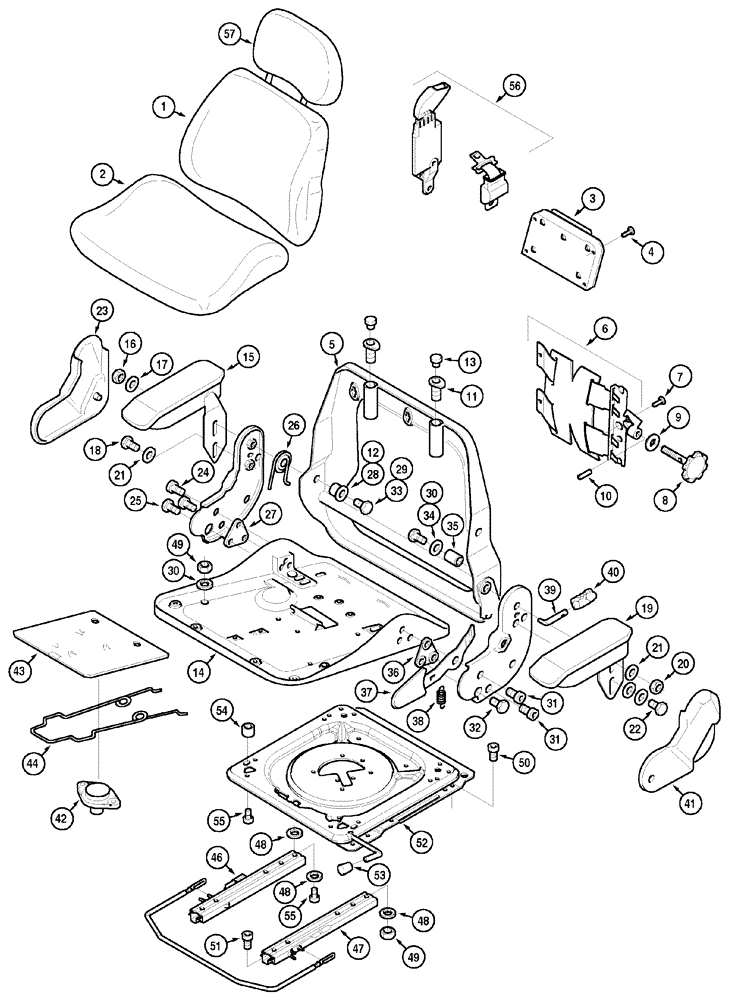

Схема запчастей Case IH MX150 - (09-43) - SWIVEL SEAT - CLOTH (90) - PLATFORM, CAB, BODYWORK AND DECALS
24
40
31
21
13
16
39
2
48
54
20
8
55
49
4
7
33
23
28
56
6
12
35
50
9
30
29
11
14
15
37
25
41
46
3
47
38
49
53
22
42
43
17
55
32
5
31
36
57
18
30
34
10
21
44
48
51
19
48
26
27
52
1

Артикул

Название

Примечание

Количество

De-Luxe

1шт.

- JJE0982009

1шт.

Europe Only

1шт.

With Air Suspension

1шт.

(See Page / Voir Page / Siehe Seite / Ver Pagina : 9-119)

1шт.

362072A1

SEAT ASSY.

Consists Of 1 - 55

1шт.

1

254748A1

BACKREST

Backrest

1шт.

2

338072A1

CUSHION, SEAT

Seat

1шт.

254680A1

CASE

Manual Compartment, Consists Of 3,4

1шт.

3

NSS

NOT SOLD SEPARAT

Box

1шт.

4

781-24820

SELF-TAP SCREW,Hex Flg, M8 x 1.25 x 20mm

4шт.

254750A1

BACKREST COVER

Consists of 5 - 13

1шт.

5

NSS

NOT SOLD SEPARAT

Frame

1шт.

254751A1

SUPPORT ASSY.

Lumbar, Consists Of 6,7

1шт.

6

NSS

NOT SOLD SEPARAT

Backrest

1шт.

7

NSS

NOT SOLD SEPARAT

Rivet

3шт.

254752A1

ADJUSTER

Adjustment, Consists Of 8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

Knob

1шт.

9

NSS

NOT SOLD SEPARAT

Washer

1шт.

10

738-3318

PIN,M3 x 18, Coiled

1шт.

11

3230246R1

BUSHING

2шт.

12

NSS

NOT SOLD SEPARAT

Bushing

2шт.

13

NSS

NOT SOLD SEPARAT

Plug

2шт.

14

254753A1

LARGE PLATE

PLATE, LARGE

1шт.

254754A1

ARMREST ASSY.

Right, Consists of 15 - 18

1шт.

15

NSS

NOT SOLD SEPARAT

Armrest

1шт.

16

60-4845T1

NUT

M8

1шт.

17

3402565R1

WASHER

2шт.

18

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

254755A1

ARMREST ASSY.

Armrest, Left, Consists Of 19 - 22

1шт.

19

NSS

NOT SOLD SEPARAT

Armrest

1шт.

20

60-4845T1

NUT

M8

1шт.

21

3402565R1

WASHER

3шт.

22

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

254756A1

COVER ASSY

Cover, Right, Consists Of 23 - 30

1шт.

23

NSS

NOT SOLD SEPARAT

Cover

1шт.

24

864-8025

HEX SOC SCREW,M8 x 25mm, Cl 8.8

2шт.

25

NSS

NOT SOLD SEPARAT

Screw

1шт.

26

60-4849T1

SPRING

1шт.

27

NSS

NOT SOLD SEPARAT

Plate

1шт.

28

NSS

NOT SOLD SEPARAT

Bushing

1шт.

29

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

1шт.

30

NSS

NOT SOLD SEPARAT

Washer

1шт.

254757A1

KIT

Backrest Tilt, Consists Of 31 - 41

1шт.

31

864-8025

HEX SOC SCREW,M8 x 25mm, Cl 8.8

2шт.

32

60-1627T1

SCREW

7/16 x 30 mm

1шт.

33

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

1шт.

34

NSS

NOT SOLD SEPARAT

Washer

1шт.

35

NSS

NOT SOLD SEPARAT

Tube

1шт.

36

NSS

NOT SOLD SEPARAT

Plate

1шт.

254758A1

ADJUSTER

Adjusting, Armrest, Consists Of 37,38

1шт.

37

NSS

NOT SOLD SEPARAT

Lever

1шт.

38

60-4853T1

SPRING

1шт.

39

NSS

NOT SOLD SEPARAT

Lever

1шт.

40

NSS

NOT SOLD SEPARAT

Lock

1шт.

41

NSS

NOT SOLD SEPARAT

Cover

1шт.

254679A1

KIT

Operator Presence Safety, Includes 42

1шт.

42

NSS

NOT SOLD SEPARAT

Switch

1шт.

43

B508910

LARGE PLATE

PLATE, LARGE

1шт.

44

B508911

SPRING

1шт.

254760A1

SLIDE GUIDE

Slide, Consists Of 46 - 51

1шт.

46

NSS

NOT SOLD SEPARAT

Slide, Control

1шт.

47

NSS

NOT SOLD SEPARAT

Slide

1шт.

48

3402565R1

WASHER

4шт.

49

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

50

864-8012

HEX SOC SCREW,M8 x 12mm, Cl 8.8

4шт.

51

864-8016

HEX SOC SCREW,M8 x 16mm, Cl 8.8

4шт.

255636A1

SEAT SUPPORT

Swivel, Consists Of 52,53

1шт.

52

335940A1

SUPPORT ASSY.

Swivel

1шт.

53

NSS

NOT SOLD SEPARAT

Knob

1шт.

54

NSS

NOT SOLD SEPARAT

Bushing

4шт.

55

864-8020

HEX SOC SCREW,M8 x 20mm, Cl 8.8

Europe Only

4шт.

56

254761A1

SAFETY BELT

Seat Belt

1шт.

57

313520A1

HEADREST, SEAT

HEADREST

1шт.

291281A1

PACKAGE

Ground Strap, Not Illustrated

1шт.

58

353-62

PLUG,Cap, .302" OD

Not Illustrated

4шт.

Выбрано товаров: 76
