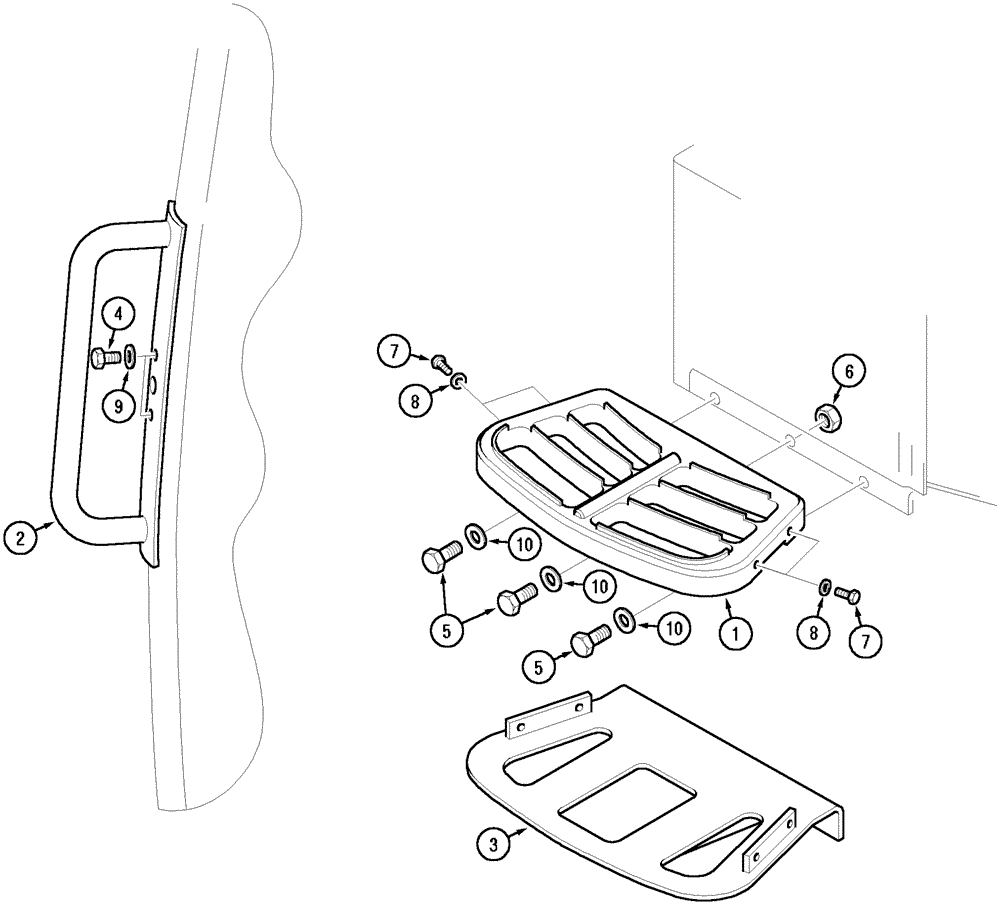

Запчасти Case IH MX150 (09-40) - STEPS (90) - PLATFORM, CAB, BODYWORK AND DECALS

N.A. Only

1шт.

Right

1шт.

1

193580A1

STEP

1шт.

2

315645A1

HANDLED SHAFT

1шт.

3

325895A2

SUPPORT

1шт.

4

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

6

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

7

840-1612

SCREW,Pan, M6 x 12mm, Cl 4.8

4шт.

8

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

5

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

3шт.

10

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

3шт.

9

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.
