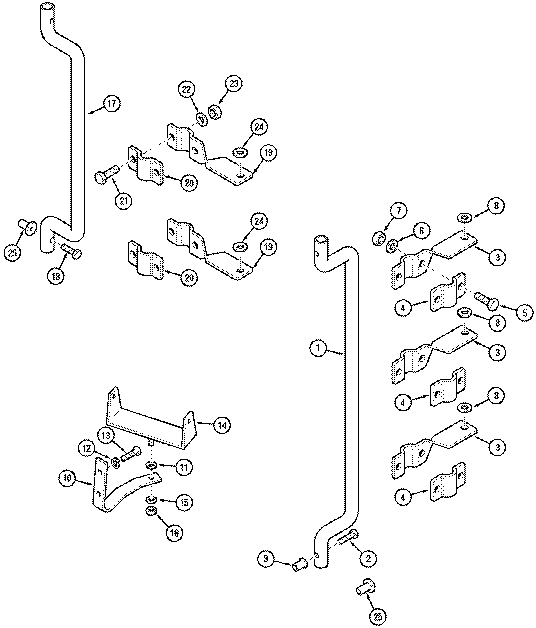

Запчасти Case IH MX150 (09-20) - MONITOR MOUNTING (90) - PLATFORM, CAB, BODYWORK AND DECALS

A Post

1шт.

1

104466A1

BAR

556 mm

1шт.

2

304469A1

BOLT

M8 x 30

2шт.

3

103213A1

HOLDER

3шт.

4

103226A1

CLAMP

3шт.

5

615-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

6

896-12008

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

9 x 17 x 2 mm

6шт.

7

832-10408

NUT,M8 x 1.25, Cl 8.8

6шт.

8

96814C3

WASHER,10mm ID x 22.25mm OD x 2.25mm Thk

3шт.

9

93199C1

FASTENER

A Post

2шт.

Optional

1шт.

10

1960456C1

BRACKET

1шт.

11

96814C3

WASHER,10mm ID x 22.25mm OD x 2.25mm Thk

1шт.

12

892-12008

LOCK WASHER,M8.2

8 mm

2шт.

13

615-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

14

1261523C91

BRACKET

If So Equipped

1шт.

15

896-12008

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

9 x 17 x 2 mm, If So Equipped

1шт.

16

231-1435

LOCK NUT,5/16"-18, GB

If so equipped

1шт.

C Post

1шт.

17

103212A1

BAR

356 mm

1шт.

18

304469A1

BOLT

M8 x 30

2шт.

19

103213A1

HOLDER

2шт.

20

103226A1

CLAMP

2шт.

21

615-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

22

896-12008

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

9 x 17 x 2 mm

4шт.

23

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

24

96814C3

WASHER,10mm ID x 22.25mm OD x 2.25mm Thk

2шт.

25

P35448

RIVET

M8, Plug, Blanking

2шт.
