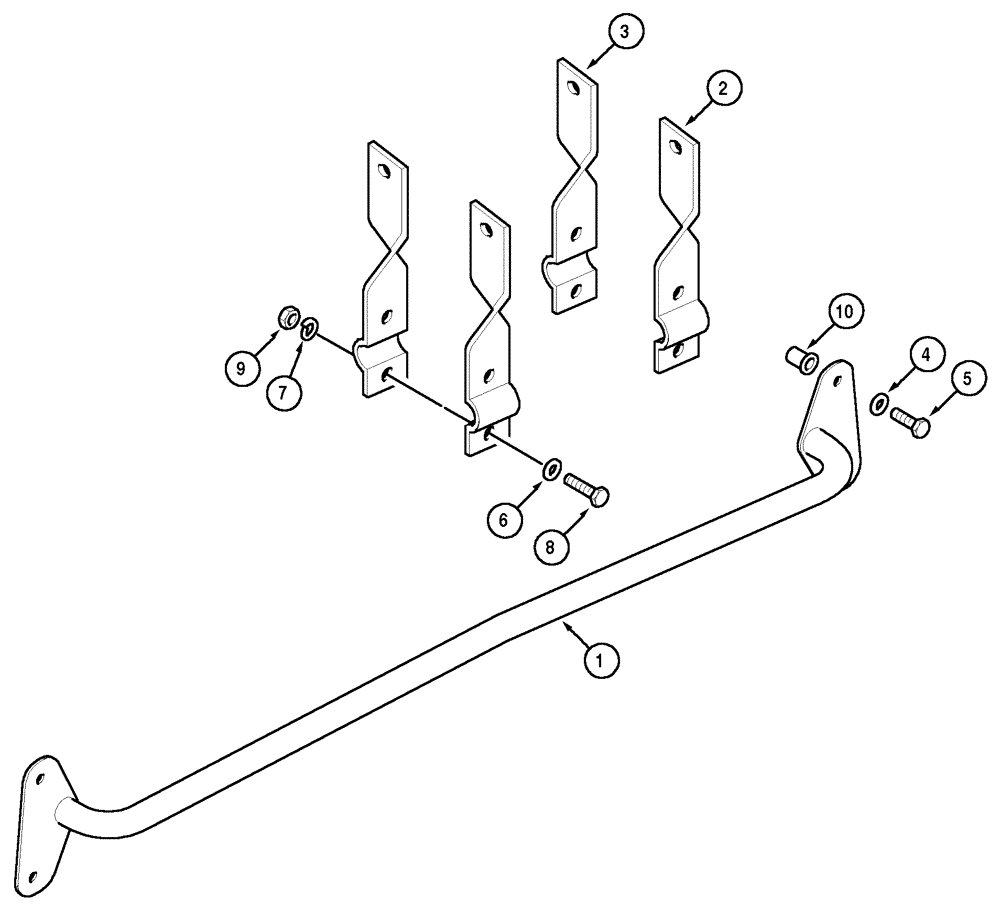

Запчасти Case IH MX150 (09-19) - MONITOR MOUNTING (90) - PLATFORM, CAB, BODYWORK AND DECALS

N.A. Only

1шт.

1

225943A2

SUPPORT ASSY.

1шт.

2

280149A1

SUPPORT

2шт.

3

280150A1

SUPPORT

2шт.

4

892-12008

LOCK WASHER,M8.2

8 mm

4шт.

5

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

6

896-12008

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

9 x 17 x 2 mm

4шт.

7

892-11008

LOCK WASHER,8mm ID

4шт.

8

628-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

9

829-1310

NUT,M10, Cl 10

4шт.

10

P35448

RIVET

M8

4шт.
