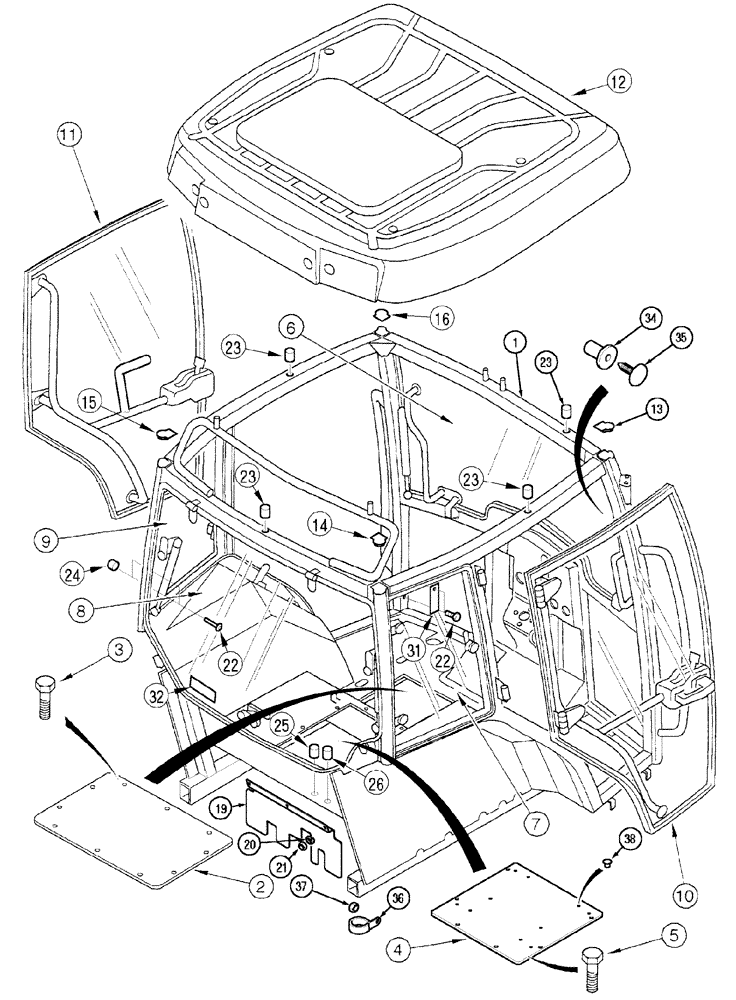

Запчасти Case IH MX150 (09-18) - CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

182746A2

CAB

Europe Only, With Hatch

1шт.

199292A2

CAB

Europe Only, With Hatch, Opening Windshield

1шт.

305524A2

CAB

Europe Only, With Heater

1шт.

305529A2

CAB

Europe Only, Opening Windshield

1шт.

305546A2

CAB

N.A. Only, Standard

1шт.

305547A2

CAB

N.A. Only, De-Luxe

1шт.

1

NSS

NOT SOLD SEPARAT

Frame Assy

1шт.

2

177602A3

FLAP

1шт.

3

781-24820

SELF-TAP SCREW,Hex Flg, M8 x 1.25 x 20mm

10шт.

4

242924A2

PANEL ASSY.

1шт.

4

322182A2

PANEL

Europe Only

1шт.

5

781-24820

SELF-TAP SCREW,Hex Flg, M8 x 1.25 x 20mm

6шт.

6

REF

INSTRUCTION

Windshield, See Page(s) 9-55,57

1шт.

7

192002A2

GLASS,CAB

Right, See Page(s) 9-55

1шт.

8

284947A1

GLASS,CAB

Rear, See Page(s) 9-57

1шт.

189566A1

SEAL, GLASS

See Page(s) 9-57

1шт.

9

192001A2

GLASS,CAB

Left, See Page(s) 9-55

1шт.

10

REF

INSTRUCTION

Door Assy, Right, See Page(s) 9-25

1шт.

11

REF

INSTRUCTION

Door Assy, Left, See Page(s) 9-26

1шт.

12

225656A2

ROOF

With Hatch, See Page(s) 9-79

1шт.

12

REF

INSTRUCTION

Roof Assy, Without Hatch, See Page(s) 9-77

1шт.

13

233413A1

GROMMET

A Post, Right

1шт.

14

233416A1

GROMMET

C Post, Right

1шт.

15

233415A1

GROMMET

C Post, Left

1шт.

16

233414A1

GROMMET

A Post, Left

1шт.

19

253208A3

LARGE PLATE

PLATE, LARGE , If So Equipped

1шт.

19

356007A1

LARGE PLATE

PLATE, LARGE

1шт.

20

892-11008

LOCK WASHER,8mm ID

3шт.

21

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

3шт.

225931A2

SUNSHADE

Not Illustrated

1шт.

780-14625

SELF-TAP SCREW,Hex Hd, M6.3 x 25

3 x 25 mm, Not Illustrated

2шт.

22

151-515

RIVET,Pop, .146" x .425"

4шт.

23

1533637C1

PLUG

12,5 mm

5шт.

24

93199C1

FASTENER

4шт.

25

353-411

PLUG,Dome, 1.000" hole, Nylon

2шт.

26

1531045C1

PLUG

10,4 mm

2шт.

27

1534229C1

PUSH BUTTON SWITCH

Parking Brake, Not Illustrated

1шт.

28

765-34313

SELF-TAP SCREW,Oval Hd, M4.2 x 13

4,2 x 13 mm, Not Illustrated

1шт.

31

NSS

NOT SOLD SEPARAT

Decal, N.A. Only

1шт.

32

NSS

NOT SOLD SEPARAT

Decal, N.A. Only

1шт.

33

3401908R3

PLUG

19 mm, A Post, Drain, Not Illustrated

2шт.

34

P35448

RIVET

M8

1шт.

35

93199C1

FASTENER

1шт.

36

515-22254

CLAMP,1", Insul, 5/16" Bolt

1шт.

37

825-1408

NUT,M8, Cl 8

1шт.

38

353-3

PLUG,Cap, .302" OD

Europe Only, Use With 322182A1

6шт.

38

353-62

PLUG,Cap, .302" OD

Optional

6шт.

225931A2

SUNSHADE

Optional, Not Illustrated

1шт.
