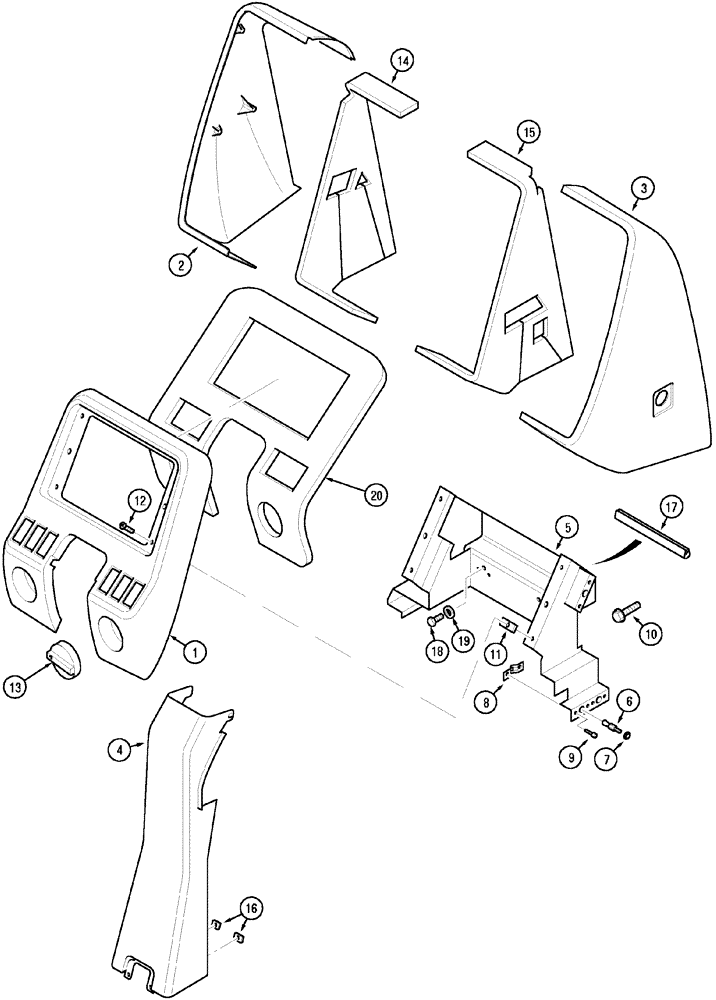

Запчасти Case IH MX150 (09-17) - INSTRUMENT PANEL (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

194347A5

COVER

1шт.

1

244764A2

COVER

MX150, N.A. Only

1шт.

2

194348A5

PANEL

1шт.

3

194349A6

PANEL

1шт.

4

194350A4

PANEL

1шт.

5

194354A8

SUPPORT ASSY.

1шт.

6

1977929C1

STUD,M5 x 0.8

6шт.

7

495-81101

WASHER,5.56mm ID x 19.05mm OD x 1.7mm Thk

6шт.

8

1961435C1

LATCH

6шт.

9

151-553

RIVET,Pop, 1/8" x .337"

12шт.

10

779-34395

SELF-TAP SCREW,Hex Hd, M4.8 x 9.5

4шт.

11

131-892

SPRING NUT,Tinn, U, #10-16

6шт.

12

260-16512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

4шт.

13

1331046C2

KNOB

1шт.

14

246255A4

INSULATOR

1шт.

15

246256A4

INSULATOR

1шт.

16

222858A1

CLASP

2шт.

17

NSS

NOT SOLD SEPARAT

Trim, Cut From 256196A1

1шт.

256196A1

ROLL

15240 mm, Bulk Length

1шт.

18

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

19

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

20

302919A1

PAD

1шт.
