Запчасти Case IH MX150 (02-07) - HEATER HOSES (10) - ENGINE

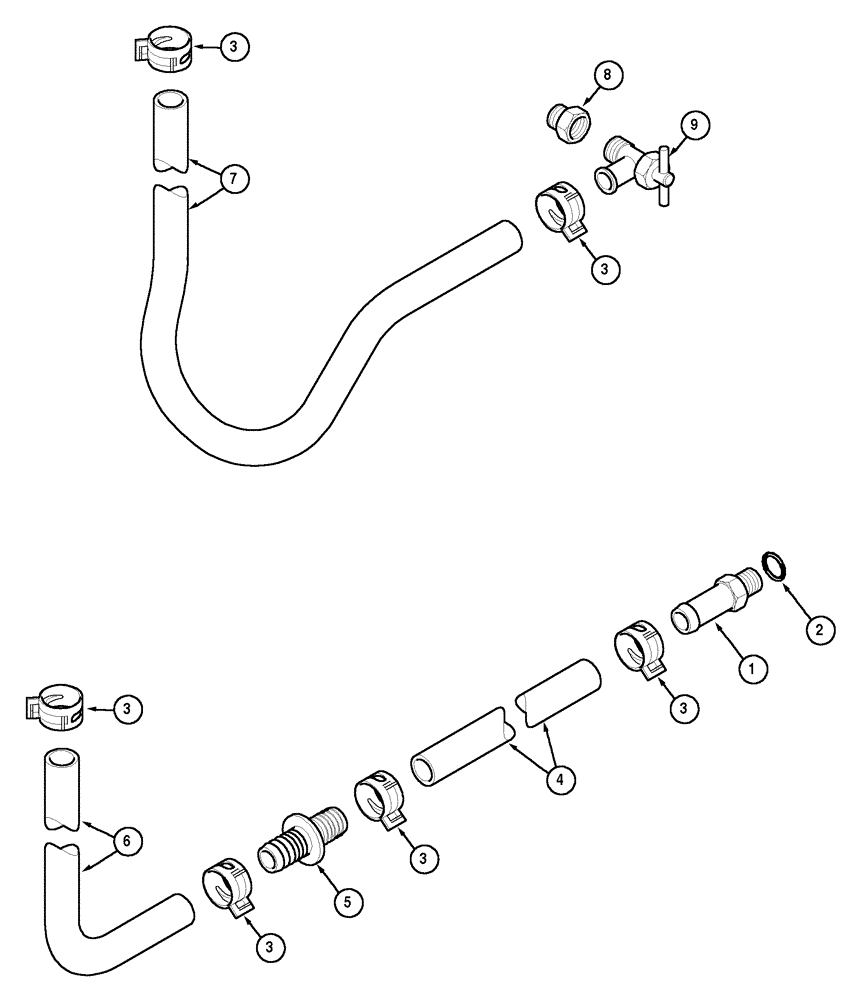

Схема запчастей Case IH MX150 - (02-07) - HEATER HOSES (10) - ENGINE
3
3
1
5
8
3
6
4
9
7
2
3
3
3

Артикул

Название

Примечание

Количество

1

196816C1

FITTING

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

3

1954736C1

HOSE CLAMP,#24

6шт.

4

3225216R2

HEATER HOSE,15.5mm ID x 460mm L

Cut From 2 x 97252CX

1шт.

5

1301342C1

FITTING

5/8 in

1шт.

6

1300321C2

HEATER HOSE,15.50 mm ID x 3658.00 mm

Cut From 15 x 97252CX

1шт.

7

181071A1

LARGE HOSE,15.50 mm ID x 3130.00 mm

HOSE,LARGE Cut from 11 x 97252CX

1шт.

7

1974655C1

HEATER HOSE,15.5mm ID x 2642mm L

1шт.

8

221-92

REDUCER,Hex, 3/4" x 3/8" NPT

1шт.

9

301803R1

SHUT-OFF VALVE

1шт.

Выбрано товаров: 10
