Запчасти Case IH MX150 (09-12) - SIDE PANELS (90) - PLATFORM, CAB, BODYWORK AND DECALS

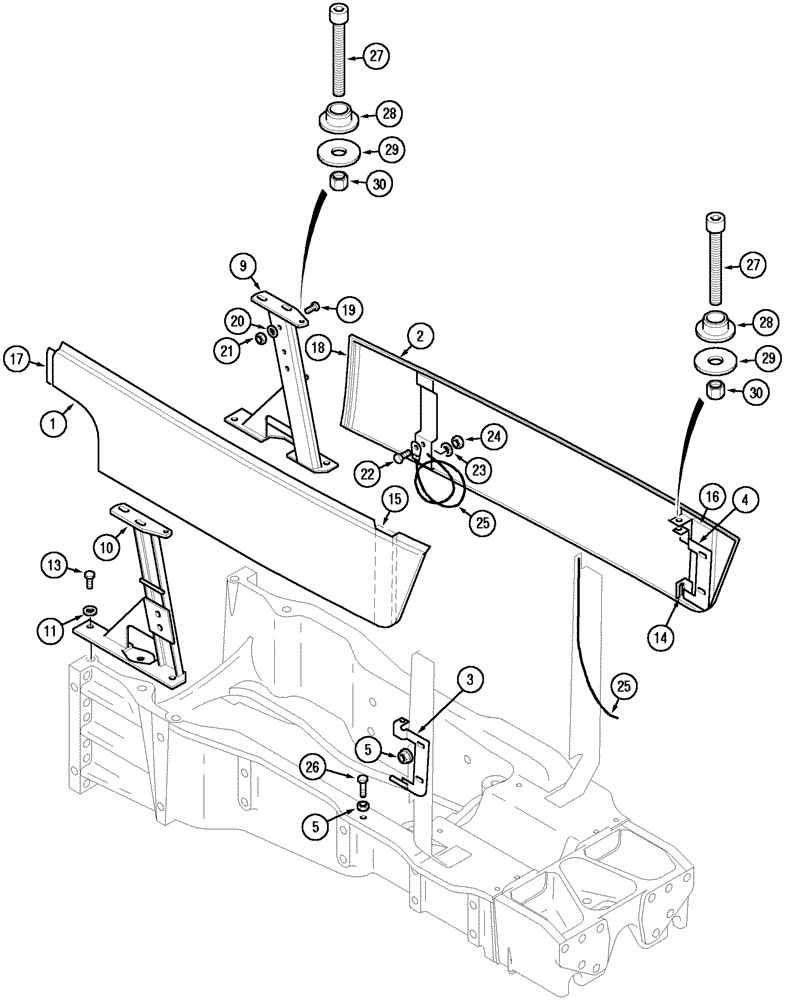

Схема запчастей Case IH MX150 - (09-12) - SIDE PANELS (90) - PLATFORM, CAB, BODYWORK AND DECALS
20
25
5
9
29
10
22
30
3
14
1
17
21
4
27
28
30
5
29
26
15
25
11
19
23
27
18
2
28
13
24
16

Артикул

Название

Примечание

Количество

1

241555A2

PANEL, SIDE

Right

1шт.

2

241556A2

PANEL, SIDE

Left

1шт.

3

235175A1

SUPPORT ASSY.

Right

1шт.

4

235176A1

SUPPORT ASSY.

Left

1шт.

5

829-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 10

6шт.

9

371047A1

SUPPORT ASSY.

Lower Left

1шт.

10

371173A1

SUPPORT ASSY.

Lower Right

1шт.

11

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

13

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

4шт.

14

235184A1

RUBBER INSULATOR

4шт.

15

229127A1

LINING

Right Front

1шт.

16

229129A1

LINING

Left Front

1шт.

17

236485A1

RUBBER SEAL,103mm L

103 mm, Lower Right

1шт.

18

236486A1

RUBBER SEAL,279mm L

279 mm, Lower Left

1шт.

19

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

20

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

21

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

22

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

2шт.

23

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

24

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

25

1533478C1

CABLE

Europe Only

2шт.

26

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

2шт.

236964A2

SCREW

Consists Of 27 - 30

4шт.

27

565-110

HEX SOC SCREW,M8 x 55mm, Cl 8.8

1шт.

28

234331A1

ISOLATOR

1шт.

29

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

13/32 x 1-1/4 x 3/32

1шт.

30

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

Выбрано товаров: 27
