Запчасти Case IH MX150 (09-09) - FENDERS FRONT WHEEL (90) - PLATFORM, CAB, BODYWORK AND DECALS

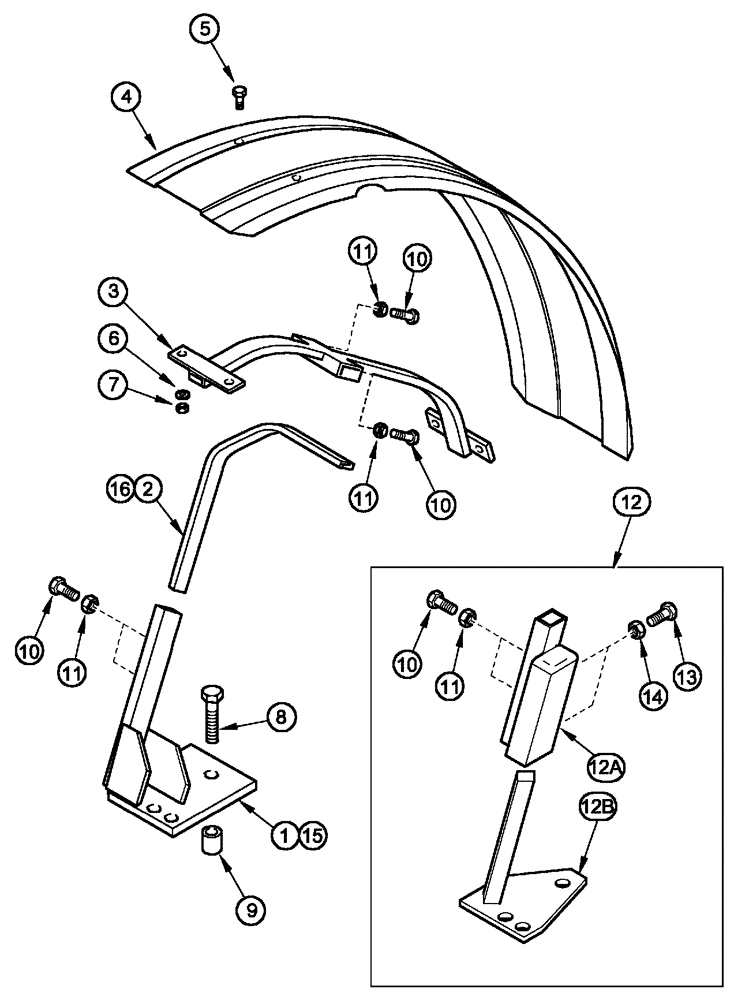

Схема запчастей Case IH MX150 - (09-09) - FENDERS FRONT WHEEL (90) - PLATFORM, CAB, BODYWORK AND DECALS
10
11
12a
2
16
10
11
11
10
14
6
10
12b
5
7
12
3
13
8
1
4
11
15
9

Артикул

Название

Примечание

Количество

Motoseal

1шт.

1

348982A2

SUPPORT

380/440, Left

1шт.

1

348983A2

SUPPORT

380/440, Right

1шт.

1

348991A2

SUPPORT

480/600, Left

1шт.

1

348992A2

SUPPORT

480/600, Right

1шт.

2

348984A1

SUPPORT

380/440

2шт.

2

348990A1

SUPPORT

480/600

2шт.

3

348985A1

SUPPORT

2шт.

4

136425A2

FENDER ASSY.

440/1450, Left

1шт.

4

136426A2

FENDER ASSY.

440/1450, Right

1шт.

4

348986A1

MUD DEFLECTOR

550/1500, Left

1шт.

4

348987A1

MUD DEFLECTOR

550/1500, Right

1шт.

4

348988A1

MUD DEFLECTOR

600/1500, Left

1шт.

4

348989A1

MUD DEFLECTOR

600/1500, Right

1шт.

5

611-6016

CARRIAGE BOLT,M6 x 16mm, Class 4.6

8шт.

6

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

7

829-1406

NUT,Hex, M6 x 1, Cl 10.9

8шт.

8

827-16120

BOLT,Hex, M16 x 2 x 120mm, Cl 10.9

Use with 348991/2A2

6шт.

8

827-16140

BOLT,Hex, M16 x 2 x 140mm, Cl 10.9

Use with 348982/3A2

6шт.

9

337429A1

SPACER

76.75 mm, Use With 348982/3A2

6шт.

9

363641A1

SPACER

100 mm, Use With 348991/2A2

6шт.

10

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

12шт.

11

829-1412

NUT,M12, Cl 10.9

12шт.

With Swivel

1шт.

12

388412A1

SUPPORT ASSY.

Swivel, Left, Includes 12A,12B,13,14

1шт.

12

388413A1

SUPPORT ASSY.

Swivel, Right, Includes 12A,12B,13,14

1шт.

12a

387847A1

SUPPORT ASSY.

Left

1шт.

12a

387848A1

SUPPORT ASSY.

Right

1шт.

12b

388414A1

SUPPORT

Left

1шт.

12b

388415A1

SUPPORT

Right

1шт.

13

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

6шт.

14

829-1412

NUT,M12, Cl 10.9

10шт.

Used With

1шт.

Suspension

1шт.

Axle

1шт.

15

376126A1

SUPPORT

380/440, Left

1шт.

15

376127A1

SUPPORT

380/440, Right

1шт.

15

376128A1

SUPPORT

480/600, Left

1шт.

15

376129A1

SUPPORT

480/600, Right

1шт.

16

380682A1

SUPPORT

380/440

2шт.

16

380679A1

SUPPORT

480/600

2шт.

Выбрано товаров: 41
