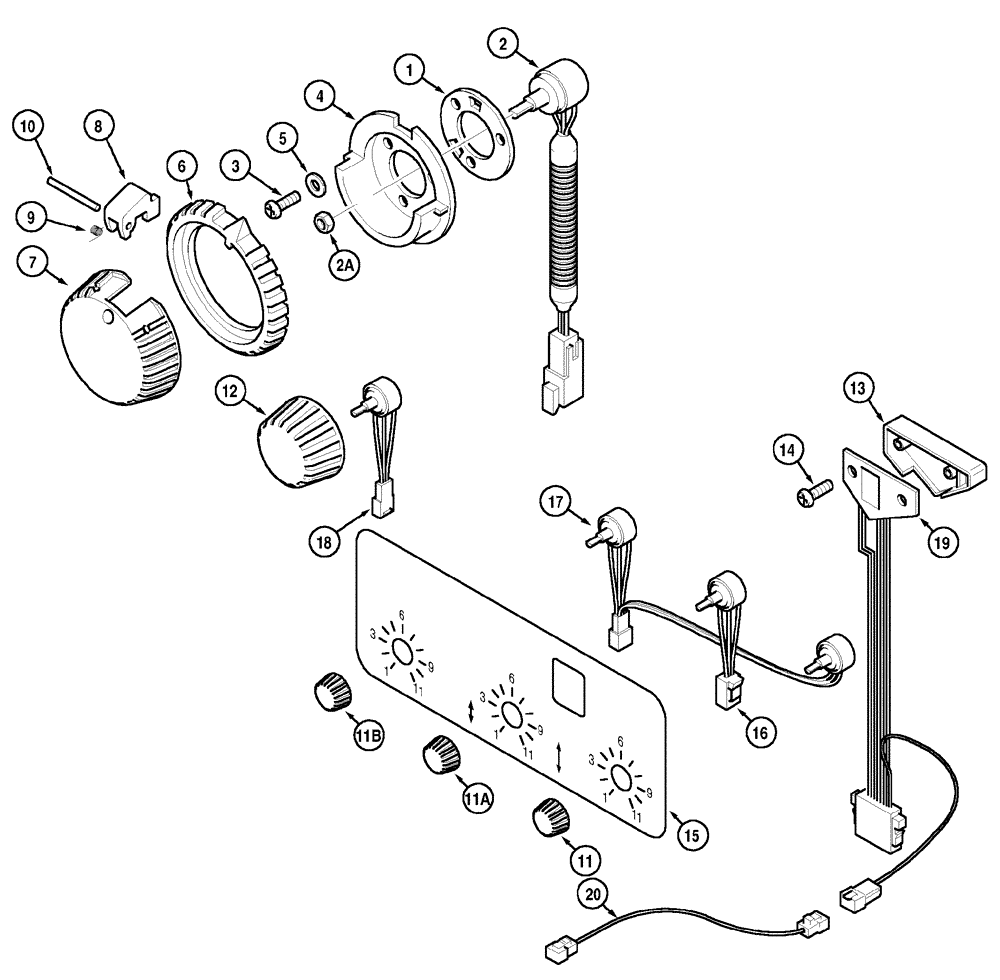

Запчасти Case IH MX150 (04-31) - HITCH - CONTROL (55) - ELECTRICAL SYSTEMS

Position Control

1шт.

1

236000A1

SPACER

1шт.

2

236481A2

POTENTIOMETER,1000 Ohm

Position, Includes 2A

1шт.

2b

NSS

NOT SOLD SEPARAT

1/4 in, Nut, Special

1шт.

3

758-2

SELF-TAP SCREW,Pan Hd, M4.2 x 16

3шт.

4

235988A1

SUPPORT

1шт.

5

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

(4.3 x 9 x 0.8 mm)

3шт.

6

187506A2

BUTTON

Lower

1шт.

187822A3

LEVER ASSY & KNOB

Position, Consists Of 7 - 10

1шт.

7

NSS

NOT SOLD SEPARAT

Knob

1шт.

8

187823A2

BUTTON

1шт.

9

180563A1

SPRING

1шт.

10

538-817

LOCK PIN,M2.5 x 40, Slotted

1шт.

Draft Control

1шт.

11

223433A1

KNOB

Height Adjustment

1шт.

11b

223433A1

KNOB

Travel

1шт.

11c

223433A1

KNOB

Drop

1шт.

12

187820A1

KNOB

Draft Control

1шт.

13

194084A3

COVER

1шт.

14

760-14113

SELF-TAP SCREW,Pan Hd, M3.5 x 13

2шт.

15

238460A1

DECAL

1шт.

16

193132A1

POTENTIOMETER,10,000 Ohm, 8V

Travel

1шт.

17

142087A1

POTENTIOMETER,10,000 Ohm, 8V

Drop, Height Adjustment

2шт.

18

A186061

POTENTIOMETER,10,000 Ohm, 8V

Hitch, Travel, Speed

1шт.

19

187614A3

DISPLAY

Hitch

1шт.

20

353870A1

HARNESS

Auto P.T.O.

1шт.
