Запчасти Case IH MX150 (02-05) - FLYWHEEL AND HOUSING (10) - ENGINE

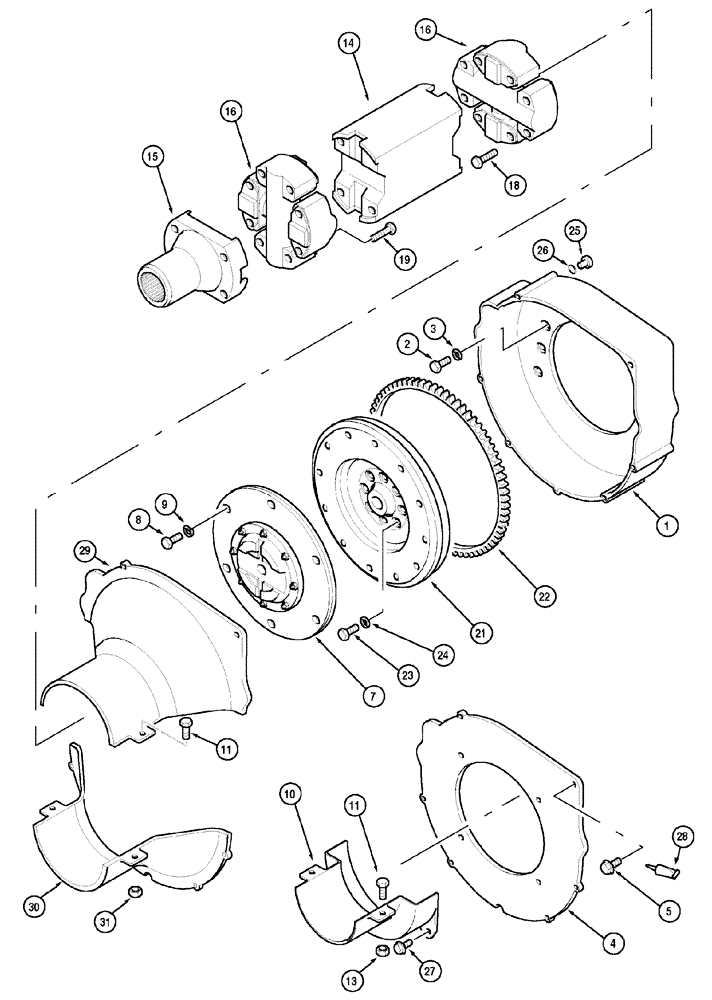

Схема запчастей Case IH MX150 - (02-05) - FLYWHEEL AND HOUSING (10) - ENGINE
21
16
15
26
13
10
11
3
5
24
8
31
1
4
23
29
27
9
19
16
30
28
25
14
7
11
22
2

Артикул

Название

Примечание

Количество

1

222365A3

HOUSING

1шт.

2

828-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

8шт.

3

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.

4

242054A1

COVER

Optional

1шт.

5

905-8016

BOLT,Hex Flg, M8 x 16mm

6шт.

7

235101A1

CLUTCH DISC,354.33mm OD

CLUTCH DISK , Engine Serial No. 45831194 and Prior

1шт.

7

235101A1R

REMAN-CLUTCH DISC

MX150, MX170 Both BSN JEE0981246

1шт.

7

235101A1C

CORE-CLUTCH DISC

Return Number

1шт.

7

353194A1

CLUTCH DISC,354.25mm OD

CLUTCH DISK , After Engine Serial No. 4581194 (Can Be Installed on Prior S/N w/ Flywheel Rework)

1шт.

432896A2R

REMAN-CLUTCH PLATE

MX150, MX170, Both After Engine Serial No. 4581194 (1/98-)

1шт.

432896A2C

CORE-CLUTCH PLATE

Return Number

1шт.

8

628-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

6шт.

8

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

6шт.

9

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

6шт.

10

241968A1

GUARD

2шт.

11

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

6шт.

13

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

2шт.

14

236698A1

YOKE

UNIVERSAL JOINT YOKE

1шт.

15

223968A1

YOKE

24T

1шт.

16

229108A1

U-JOINT SPIDER

2шт.

19

828-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

16шт.

21

J930781

FLYWHEEL WITH GEAR

Serial No. - JJE0981246, Includes 22

1шт.

21

J936238

FLYWHEEL WITH GEAR

Serial No. JJE0981247 -, Includes 22

1шт.

22

J905427

GEAR

1шт.

23

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

8шт.

24

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

8шт.

25

J910248

PLUG

1шт.

26

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

27

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

4шт.

28

B17501

LOCTITE

6 ml

1шт.

29

349205A1

GUARD

1шт.

30

349204A1

GUARD

1шт.

31

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

Выбрано товаров: 33
