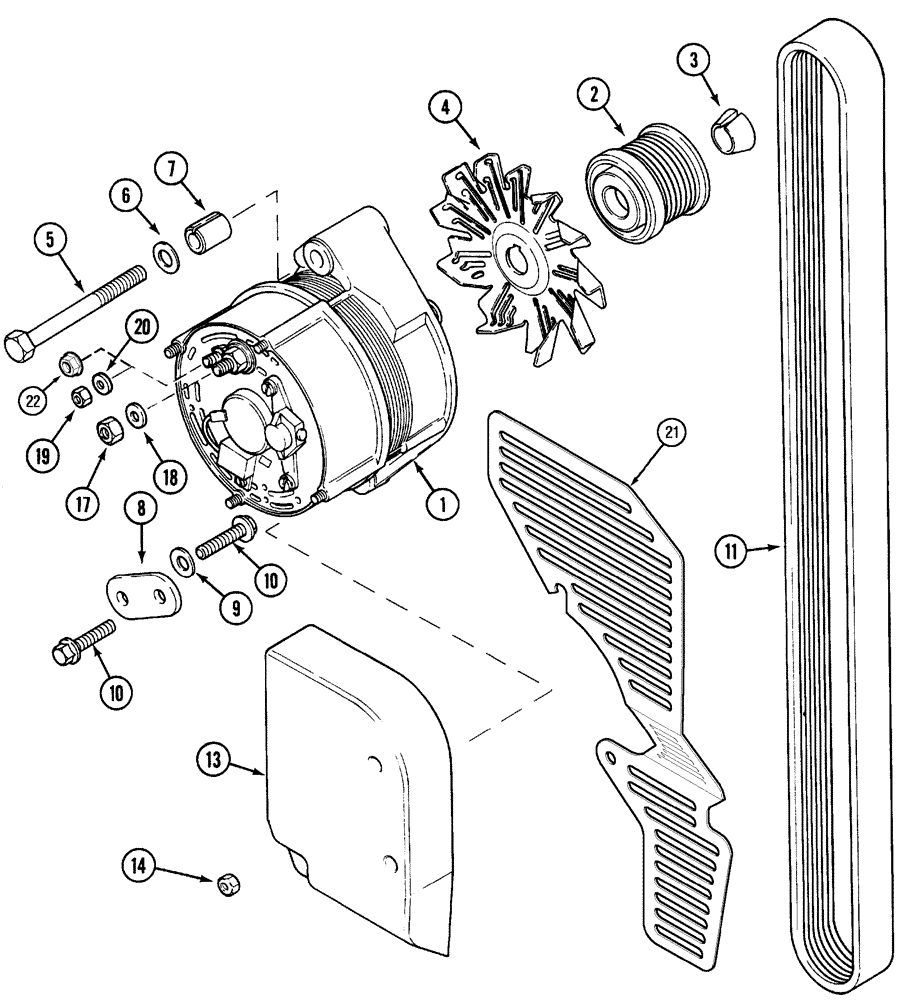

Запчасти Case IH MX150 (04-16) - ALTERNATOR AND MOUNTING (55) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

Alternator, See Page(s) 4-61, Includes 17 - 20

1шт.

2

J908560

PULLEY

1шт.

3

J908563

RETAINER

1шт.

4

221425R1

FAN

1шт.

5

814-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 8.8

1шт.

6

892-11010

LOCK WASHER,M10

1шт.

7

J902469

SPACER

1шт.

8

J903089

SUPPORT

1шт.

9

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

1шт.

10

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

2шт.

11

J911562

V-BELT,27.92mm W x 1460.5mm L, 8 Ribs

1шт.

13

1531982C1

PROTECTOR

1шт.

14

825-5145

NUT,M5, Flg Ser

2шт.

17

825-1408

NUT,M8, Cl 8

1шт.

18

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

19

825-1405

NUT,M5, Cl 8

1шт.

20

892-11005

LOCK WASHER,M5

1шт.

21

244973A2

PROTECTOR

Safety, Europe Only

1шт.

22

825-5145

NUT,M5, Flg Ser

Replaces 19, 20

1шт.
