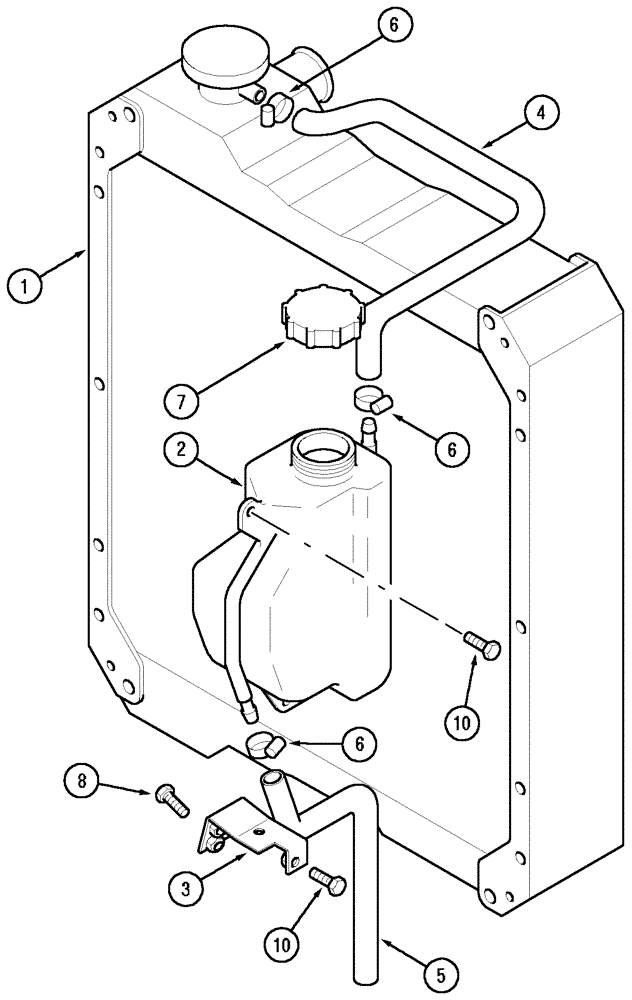

Запчасти Case IH MX150 (02-04) - COOLANT RECOVERY SYSTEM (10) - ENGINE

1

REF

INSTRUCTION

Radiator, See Fig.(s) 2-02, 2-03

1шт.

2

233931A1

RESERVOIR

1шт.

3

237158A1

SUPPORT

1шт.

4

278440A1

HOSE,7.1mm ID x 660mm L, SAE 30R6

1шт.

5

A171873

HOSE,7.10 mm ID, 8.70 mm ID x 400.00 mm, SAE J30

Cut from L126767

1шт.

6

A171099

HOSE CLAMP,13.2mm - 15.4mm

3шт.

7

A184079

CAP

1шт.

8

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

2шт.

10

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

2шт.

L126767

HOSE,7.9mm ID x 2336mm L, SAE 30R6

1шт.
