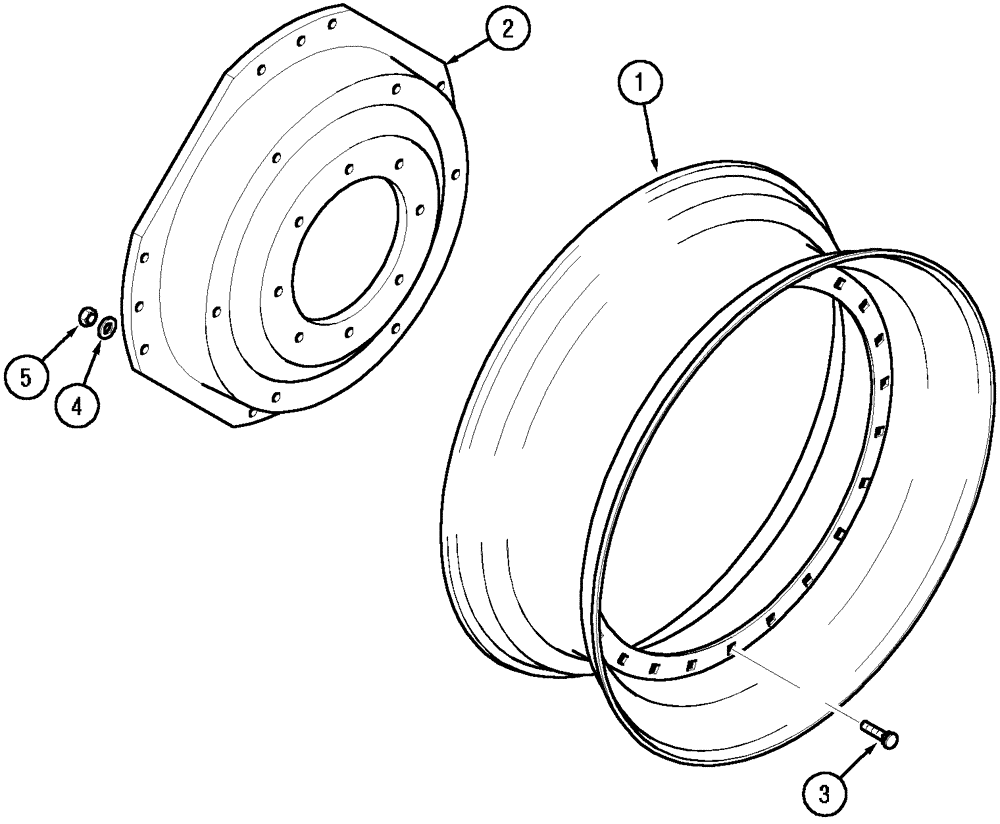

Запчасти Case IH MX150 (06-38) - REAR WHEELS ADJUSTABLE (44) - WHEELS

Titan

1шт.

1

278354A1

WHEEL ASSY.

DW18Lx38, Includes 1 - 5, N.A. Only

2шт.

2

NSS

NOT SOLD SEPARAT

Disc, Wheel

1шт.

3

811-16050

CARRIAGE BOLT,Sht Sq Nk, M16 x 2 x 50mm, Cl 8.8

12шт.

4

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

12шт.

5

829-1416

NUT,M16, Cl 10

12шт.

1

278536A1

WHEEL ASSY.

DW16Lx42, Includes 1 - 5, N.A. Only

2шт.

2

NSS

NOT SOLD SEPARAT

Disc, Wheel

1шт.

3

811-16050

CARRIAGE BOLT,Sht Sq Nk, M16 x 2 x 50mm, Cl 8.8

12шт.

4

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

12шт.

5

829-1416

NUT,M16, Cl 10

12шт.

228235A1

WHEEL ASSY.

42xDD18, N.A. Only

2шт.

228242A1

WHEEL ASSY.

50xW10, N.A. Only

2шт.
