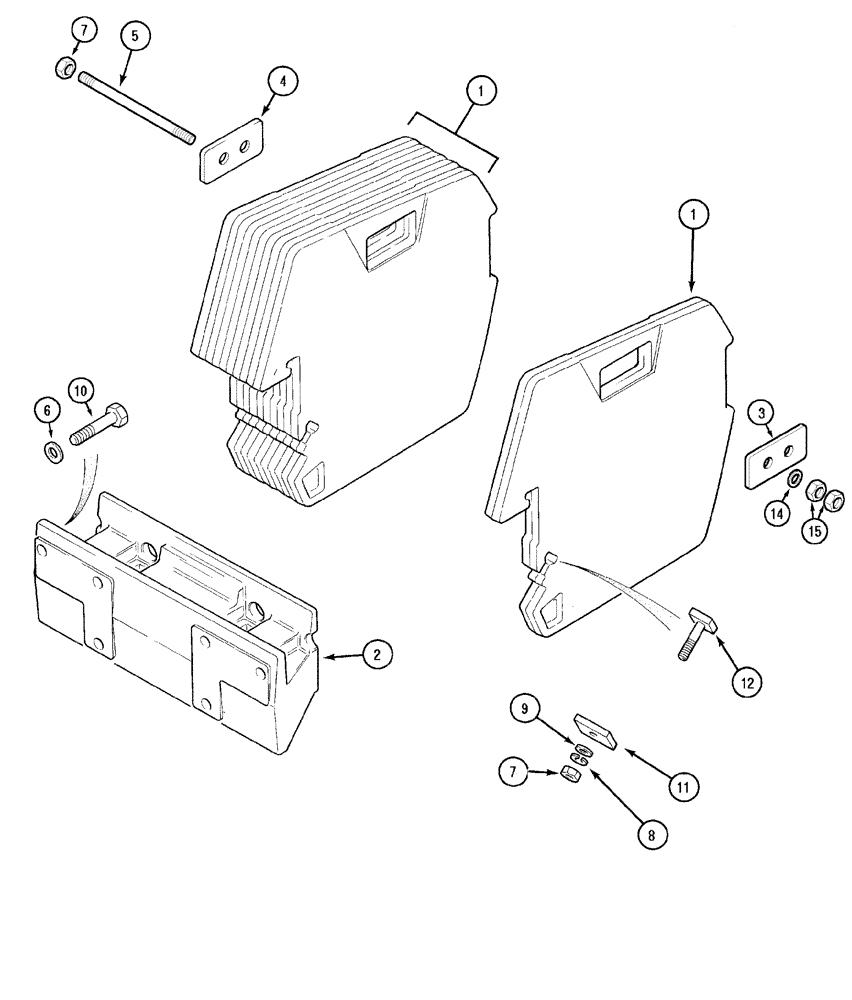

Запчасти Case IH MX150 (09-05) - FRONT WEIGHTS (39) - FRAMES AND BALLASTING

N.A. Only

1шт.

12 Weights

1шт.

1

1347524C1

WEIGHT

45 Kg

12шт.

2

192634A2

BRACKET

1шт.

3

1979024C1

PLATE

1шт.

4

1979025C1

PLATE ASSY.

1шт.

5

256551A1

TRUSS ROD

480 mm

1шт.

6

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm

6шт.

7

425-108

NUT,1/2" - 13, Gr 5

7шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

6шт.

9

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

6шт.

10

827-20065

BOLT,Hex, M20 x 2.5 x 65mm, Cl 10.9, Full Thd

6шт.

11

1978431C1

CLAMP

6шт.

12

A169139

SQUARE BOLT

1/2 x 3-1/4

6шт.

14

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

1шт.

15

425-108

NUT,1/2" - 13, Gr 5

2шт.

18 Weights

1шт.

1

1347524C1

WEIGHT

45 Kg

18шт.

2

239385A4

SUPPORT

1шт.

3

1979024C1

PLATE

1шт.

4

1979025C1

PLATE ASSY.

1шт.

5

275782A1

TRUSS ROD

695 mm

1шт.

6

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm

6шт.

7

425-108

NUT,1/2" - 13, Gr 5

10шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

9шт.

9

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

9шт.

10

827-20065

BOLT,Hex, M20 x 2.5 x 65mm, Cl 10.9, Full Thd

6шт.

11

1978431C1

CLAMP

9шт.

12

A169139

SQUARE BOLT

1/2 x 3-1/4

9шт.

14

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

1шт.

15

425-108

NUT,1/2" - 13, Gr 5

2шт.
