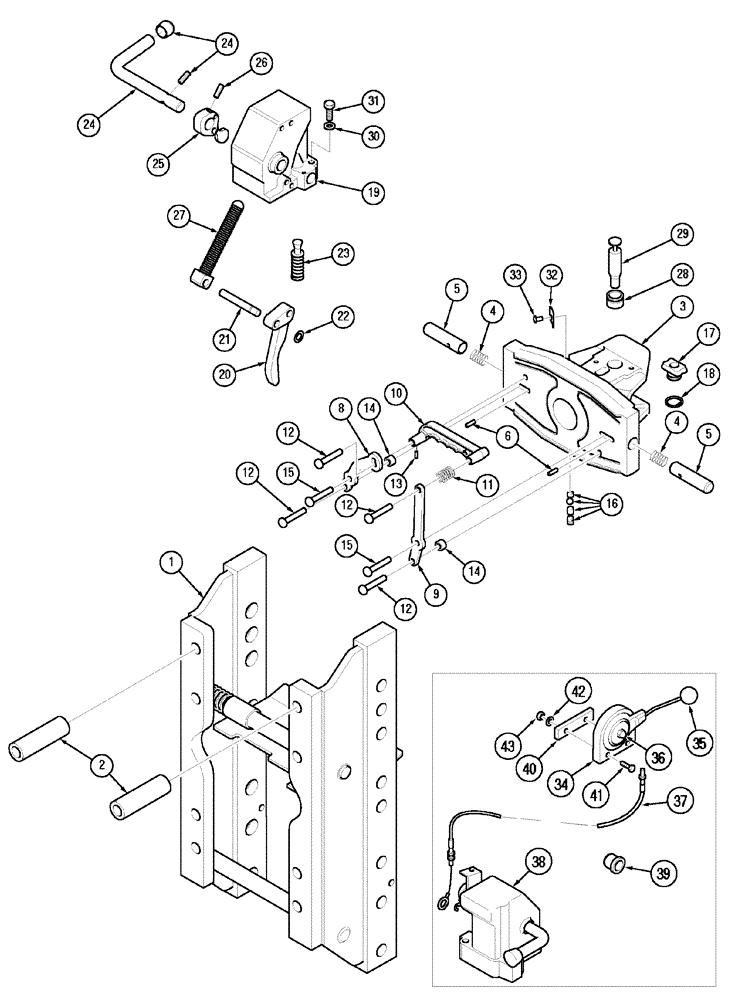

Запчасти Case IH MX150 (09-66) - TRAILER HITCH WITH AUTOMATIC CLEVIS (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

310002A2

FRAME ASSY

1шт.

1

310031A2

FRAME ASSY

Drawbar, See Page(s) 9-195

1шт.

2

310003A2

SPACER

2шт.

318274A1

TRAILER HITCH

32mm, Consists Of 3 - 33

1шт.

310102A1

LOCK WASHER

37mm, Consists Of 3A,4 - 15

1шт.

3

310006A2

TRAILER HITCH

Includes 4 - 33

1шт.

3b

NSS

NOT SOLD SEPARAT

Clevis, Consists Of 16,17A,18,19A,28A,30,31,32A,33

1шт.

4

141013A1

SPRING

2шт.

5

141014A1

PIN

2шт.

6

738-1516

LOCK PIN,M5 x 16, Slotted

2шт.

141015A1

HANDLE

Consists Of 8 - 15

1шт.

8

NSS

NOT SOLD SEPARAT

Bar

1шт.

9

NSS

NOT SOLD SEPARAT

Bar

1шт.

10

NSS

NOT SOLD SEPARAT

Handle

1шт.

11

NSS

NOT SOLD SEPARAT

Spring

1шт.

12

NSS

NOT SOLD SEPARAT

Pin

4шт.

13

738-1516

LOCK PIN,M5 x 16, Slotted

1шт.

14

NSS

NOT SOLD SEPARAT

Spacer

2шт.

15

NSS

NOT SOLD SEPARAT

Pin

2шт.

16

177336A1

BRAKE ASSY.

1шт.

17

310109A1

BUSHING,17mm ID x 85mm OD x 44mm L

32 mm, Lower

1шт.

17b

310112A1

BUSHING

37 mm, Lower

1шт.

18

800-5140

SNAP RING,M40, Ext, Hvy

(2.5mm Thk)

1шт.

19

310187A2

LATCH ASSY.

Includes 20 - 28,29

1шт.

19b

310188A2

LATCH ASSY.

Includes 20 - 27,28A,29A

1шт.

20

310130A1

LEVER

Includes 21,22

1шт.

21

310135A1

SPLIT PIN/SAFETY PIN

1шт.

22

800-416

CIRCLIP,M6, Ext

1шт.

23

310139A1

PIN

1шт.

24

310147A1

HANDLE

1шт.

25

310175A1

LEVER

Includes 26

1шт.

26

838-5836

LOCK PIN,M8 x 36, Slotted

8 x 38 mm

1шт.

27

310181A1

CLEVIS PIN

1шт.

28

368545A1

BUSHING,32mm ID x 48mm OD x 30.5mm L

Upper

1шт.

28b

368551A1

BUSHING

Upper

1шт.

29

310185A1

HITCH PIN,32mm OD x 143mm L

32 mm

1шт.

29b

310186A1

HITCH PIN,37mm OD x 152mm L

38 mm

1шт.

30

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

31

827-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

2шт.

32

NSS

NOT SOLD SEPARAT

Decal

1шт.

33

906028R1

GROOVED PIN

2шт.

334052A1

LEVER ASSY.

Consists Of 34 - 37

1шт.

34

334055A1

LEVER ASSY.

1шт.

35

3404892R1

BALL KNOB

1шт.

36

3221725R1

CAP

6 mm

1шт.

37

334056A1

CABLE

1шт.

38

334059A1

LEVER ASSY.

1шт.

39

182047A1

GROMMET

1шт.

40

334053A1

LARGE PLATE

PLATE, LARGE

2шт.

41

540-713

SCREW,Cross Pan Hd, M6 x 35

Cl 4.8

2шт.

42

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

43

832-10406

NUT,M6 x 1, Cl 8

2шт.
