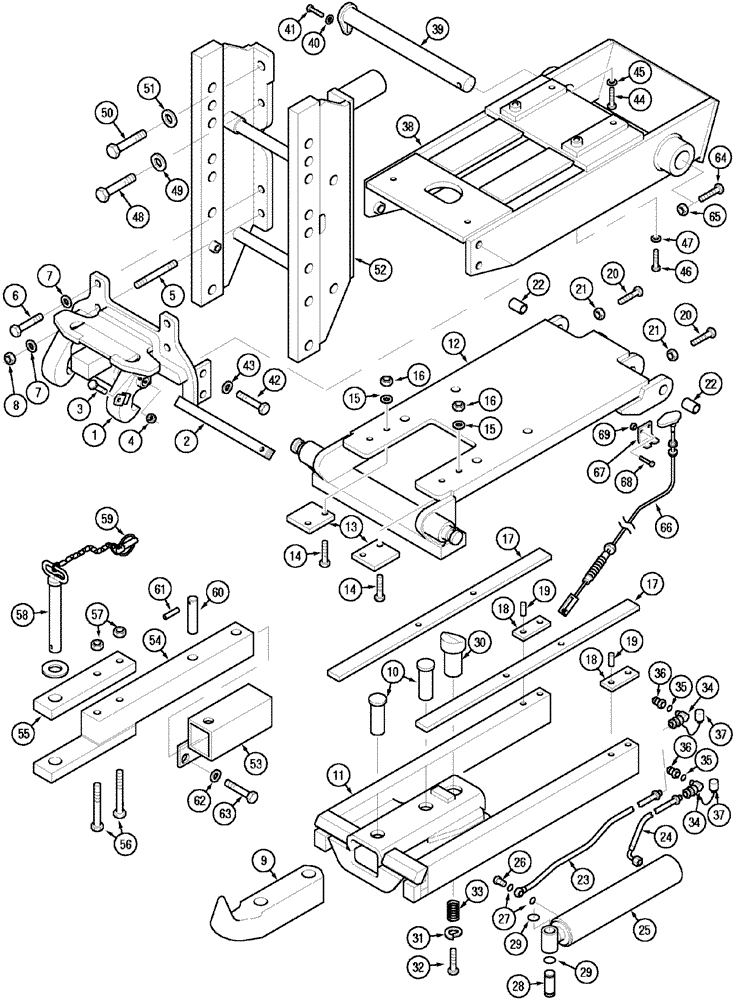

Запчасти Case IH MX150 (09-64) - AUTOMATIC HITCH (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

Trima

1шт.

Europe Only

1шт.

294480A1

FRAME, HITCH

Includes 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

Frame

1шт.

2

282244A1

TORSION SPRING

6шт.

3

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

1шт.

4

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

5

294483A1

STUD

M16 x 190 mm, 10.9

2шт.

6

828-16150

BOLT,Hex, M16 x 2 x 150mm, Cl 10.9

2шт.

7

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

8

829-1316

NUT,M16, Cl 10

2шт.

9

282245A1

HOOK

1шт.

10

282246A1

HITCH PIN,25mm OD x 97mm L

2шт.

318461A1

FRAME, HITCH

Consists Of 11 - 37

1шт.

11

282256A1

FRAME, HITCH

Telescopic

1шт.

12

282258A1

FRAME, HITCH

Lower

1шт.

13

282287A1

SUPPORT

2шт.

14

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

15

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

16

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

17

282288A1

ANTI-SKID STRIP

Lower

2шт.

18

282289A1

PAD

Upper Front

2шт.

19

282290A1

HITCH PIN,8mm OD x 10mm L

4шт.

20

614-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 8.8, Full Thd

2шт.

21

829-1416

NUT,M16, Cl 10

2шт.

22

282291A1

BUSHING,30.07mm ID x 38mm OD x 25mm L

2шт.

23

282292A1

HYDRAULIC HOSE,2400.00 mm

1шт.

24

282293A1

HOSE ASSY.

2000 mm

1шт.

25

295897A1

CYLINDER ASSY.

See Page(s) 8-125

1шт.

26

283453A1

BANJO BOLT

M18

1шт.

27

638-53180

O-RING,18mm ID x 2.65mm Width

2шт.

28

282313A1

HITCH PIN

1шт.

29

800-1125

SNAP RING,M25, Ext

2шт.

30

282314A1

HITCH PIN,50mm OD x 100mm L

1шт.

31

282315A1

LOCK WASHER,9mm ID x 40mm OD x 11mm Thk

1шт.

32

863-8030

HEX SOC SCREW,M8 x 30mm, Cl 12.9

1шт.

33

282318A1

SPRING

1шт.

34

283454A1

ELBOW

2шт.

35

238-5116

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

2шт.

36

1272770C2

COUPLING, BREAK AWAY

2шт.

37

T40759

PLUG

2шт.

38

295624A1

FRAME, HITCH

Upper

1шт.

39

282250A1

HITCH PIN

1шт.

40

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

42

628-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

4шт.

43

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

44

863-16060

HEX SOC SCREW,M16 x 60mm, Cl 12.9

2шт.

45

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

46

863-16080

HEX SOC SCREW,M16 x 80mm, Cl 12.9

M16 x 80

2шт.

47

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

48

827-16170

BOLT,Hex, M16 x 2 x 170mm, Cl 10.9

6шт.

49

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

6шт.

50

827-20170

BOLT,Hex, M20 x 2.5 x 170mm, Cl 10.9

2шт.

51

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm

2шт.

52

REF

INSTRUCTION

Hitch Assy, See Page(s) 9-191,195,197

1шт.

280099A1

DRAWBAR SUPPORT

Consists Of 53 - 63

1шт.

53

283477A1

DRAWBAR

1шт.

54

283475A1

DRAWBAR

1шт.

55

283476A1

PLATE

1шт.

56

827-16140

BOLT,Hex, M16 x 2 x 140mm, Cl 10.9

2шт.

57

825-51416

FLANGE NUT,Flg, M16, Serr

2шт.

58

1974215C3

HITCH PIN,40mm OD x 185mm L

1шт.

41

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

1шт.

59

1348064C1

LINCH PIN

1шт.

60

283480A1

HITCH PIN

Includes 61

1шт.

61

838-4840

LOCK PIN,M8 x 40, Slotted

1шт.

62

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm

2шт.

63

627-20040

BOLT,Hex, M20 x 2.5 x 40mm, Cl 10.9, Full Thd

2шт.

64

827-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

1шт.

65

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

66

348272A1

CABLE ASSY.

1шт.

67

278176A1

SUPPORT

1шт.

68

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

69

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.
